The polyester film slitting machine is mainly used for dividing the busbar insulating polyester film, and the slitting is performed according to the width of the required film. This equipment is divided into three parts: the discharging area, the cutting machine and the receiving area, which can also be set according to the length requirements meters.
The KD-FQJ-1300 Mylar Film Slitting Machine divides polyester insulation film into the widths required for busbar production. Its layout includes material discharge, cutting and receiving areas. The machine supports meter-counter length control as well as width selection. The published unwinding and slitting limits help buyers match the incoming film roll and the next insulation-processing operation. |  |
| Parameter | Specification |
|---|---|
| Device model | KD-FQJ-1300 |
| Maximum unwinding width | 1200mm |
| Maximum unwinding diameter | 700mm |
| Slitting width | 50mm-1200mm |
| Unwinding reel diameter | 3 inches |
| Slitting speed | 0-300m/min |
| Length control | Meter counter |
| Power supply | 220V~415VAC 50~60Hz 3kW |
| Gas source | 0.6MPa |
| Device Dimensions | L1600mm*W1800mm*H1500mm |
Wide Unwinding FormatMaximum unwinding width is listed as 1200mm. | Slit Width SelectionThe stated slitting width range is 50mm–1200mm. | Roll Diameter CapacityMaximum unwinding diameter is 700mm. |
Reel DiameterThe published unwinding reel diameter is 3 inches. | Variable Slitting SpeedThe machine lists a speed range of 0–300m/min. | Metered LengthA meter counter provides the specified length-control method. |
FunctionsWide Unwinding Format — Maximum unwinding width is listed as 1200mm. Slit Width Selection — The stated slitting width range is 50mm–1200mm. Roll Diameter Capacity — Maximum unwinding diameter is 700mm. | Working Principle
|
Busbar Insulation FilmPreparation of polyester film for busbar insulating use. | Width-Based Film ConversionSlitting film to match the required insulation format. | Metered Film PreparationProducing the required length using the meter-counter setting. |
Confirm film width, outer diameter and reel diameter.
Specify the width arrangement needed by the next operation.
Provide the required length and receiving arrangement for quotation review.
Recommended acceptance checks for mylar film slitting machine:
Slit-Width MeasurementMeasure the processed film against the required insulation width. | Length Counter CheckCompare the meter-counter indication with a measured film length. | Roll CompatibilityCheck the actual input roll against the stated unwinding dimensions. |
Insulation Film EquipmentKiande explicitly lists automatic Mylar film slitting in its manufacturing activities. | Downstream Forming RangeThe company supplies Mylar film forming machinery for compact busbars. | Busbar Production ContextIts broader range connects film preparation with conductor and assembly equipment. |
Published width, diameter and reel values support roll selection.
The slit-width range and meter counter address separate film preparation requirements.
The company also lists insulation Mylar among its busbar accessories.

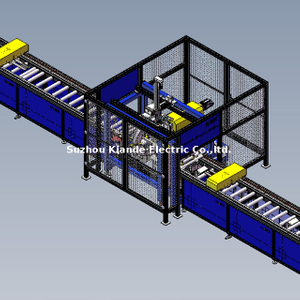

Related stages for insulation-film preparation: Mylar Film Forming Machine, Automatic Busbar Wrapping Machine, Busbar Conductor Multifunctional Processing Machine.
Busbar insulation preparation
Polyester film conversion for busway
Electrical insulation manufacture
Kiande’s company profile names automatic Mylar film slitting machines and insulation Mylar within its busbar equipment and accessory range. The business specializes in intelligent production for electrical manufacturing, with a Suzhou headquarters and Zhenjiang production center. |  |
Provide film material, width, diameter and reel dimensions.
List the required slit widths and measured lengths.
Discuss a representative material sample before setting the equipment scope.
Kiande’s official website displays an invention patent document for busduct processing equipment. This is a company technology document. It does not establish CE conformity or current ISO certification for every product configuration. |  |
KD-FQJ-1300 lists a maximum unwinding width of 1200mm and a slitting width range of 50mm–1200mm.
The KD-FQJ-1300 table specifies a maximum unwinding diameter of 700mm and an unwinding reel diameter of 3 inches.
The published KD-FQJ-1300 speed range is 0–300m/min. Confirm the operating setting with the actual film and required slit format.
KD-FQJ-1300 uses a meter counter. The source description says the film can be prepared according to the required measured length.
KD-FQJ-1300 is described as dividing polyester film. Thermal forming is covered by the separate KD-CXJ/D(E)-250 Mylar Film Forming Machine.
KD-FQJ-1300 requires 220V~415VAC, 50~60Hz, 3kW and 0.6MPa gas supply. Listed dimensions are L1600mm × W1800mm × H1500mm.
