Complete Busduct Fabrication Solutions

Kiande plans and supplies busduct manufacturing equipment for conductor processing, insulation preparation, aluminum housing fabrication, straight and elbow assembly, riveting, electrical inspection and production data integration.

Process
Equipment
Line Options
Quality Control
FAQ
Inquiry

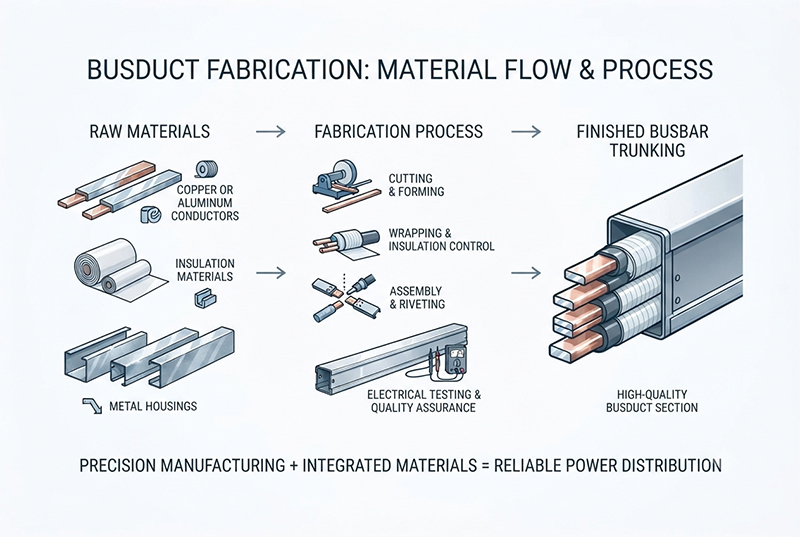

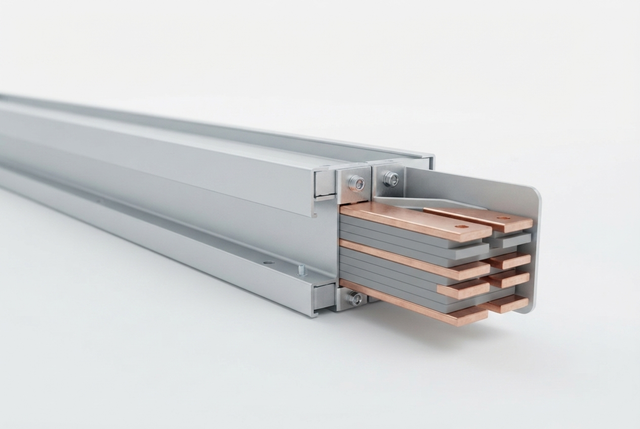

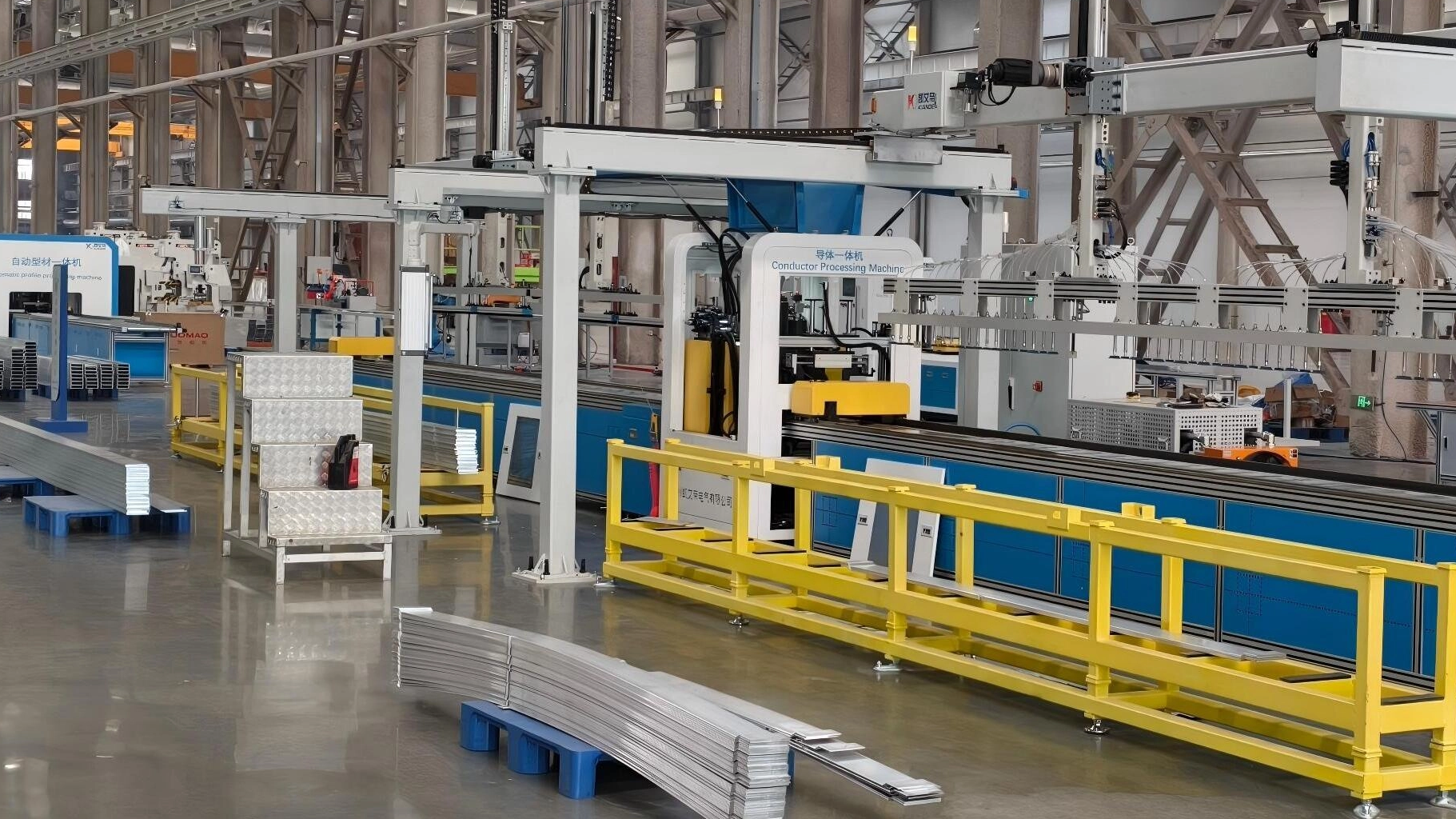

What Is Busduct Fabrication?

Busduct fabrication is the process of manufacturing enclosed conductor systems used for efficient electrical power distribution. It begins with enclosure profile processing, including cutting, punching, drilling, and electrostatic powder coating. Copper busbars are then cut, bent, slotted, pressed, and insulated with polyester sleeves.

Some connecting parts may also be tin-plated. During automatic assembly, busbars and enclosure profiles are accurately positioned, riveted, and connected. Busbar Joint components, such as connecting bars and cover plates, are processed separately. Finished busducts undergo dimensional inspection, electrical testing, quality confirmation, and automatic packaging to ensure safe, consistent, and reliable production for industrial power systems.

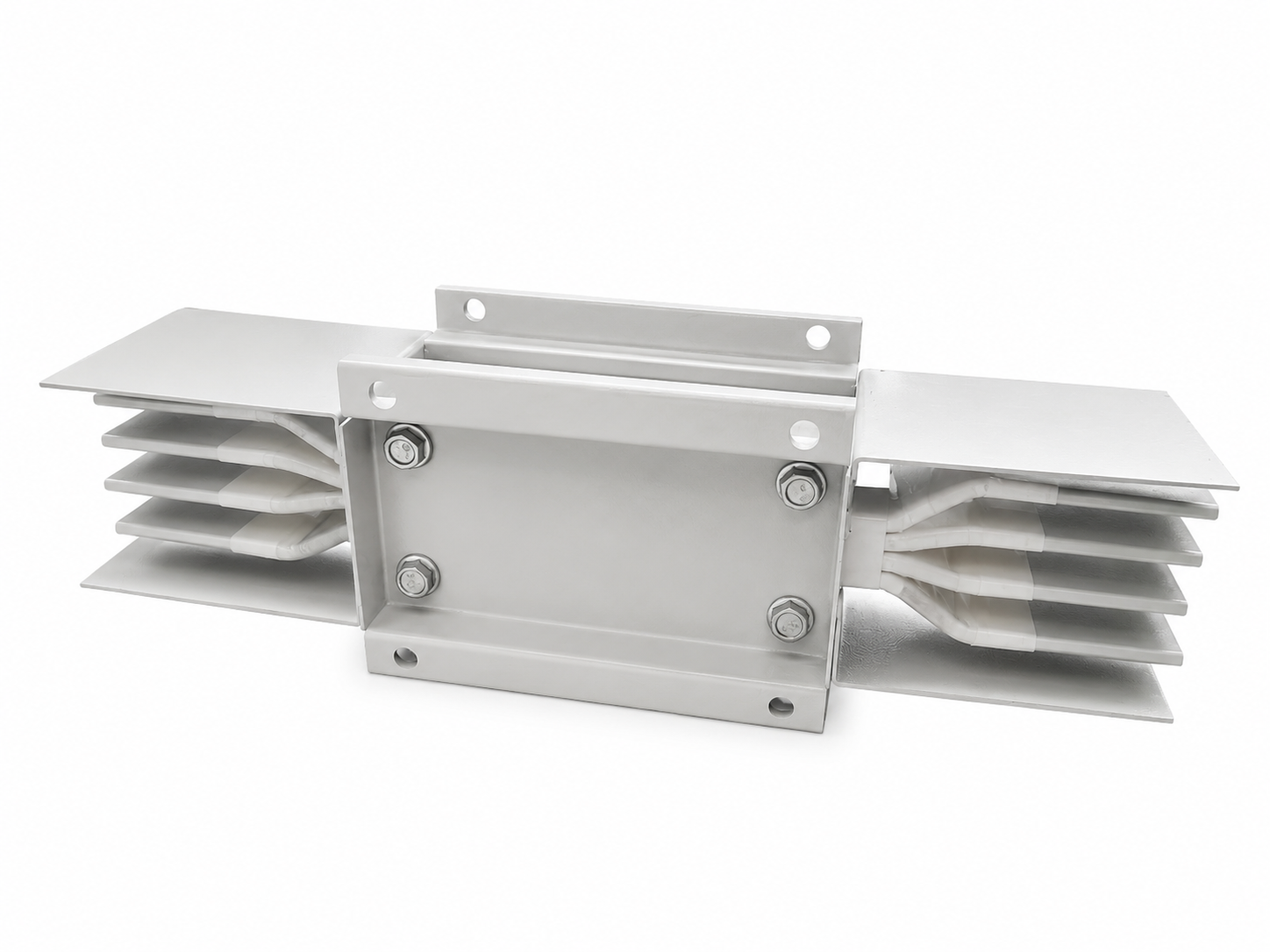

Busduct Types & Sections Supported

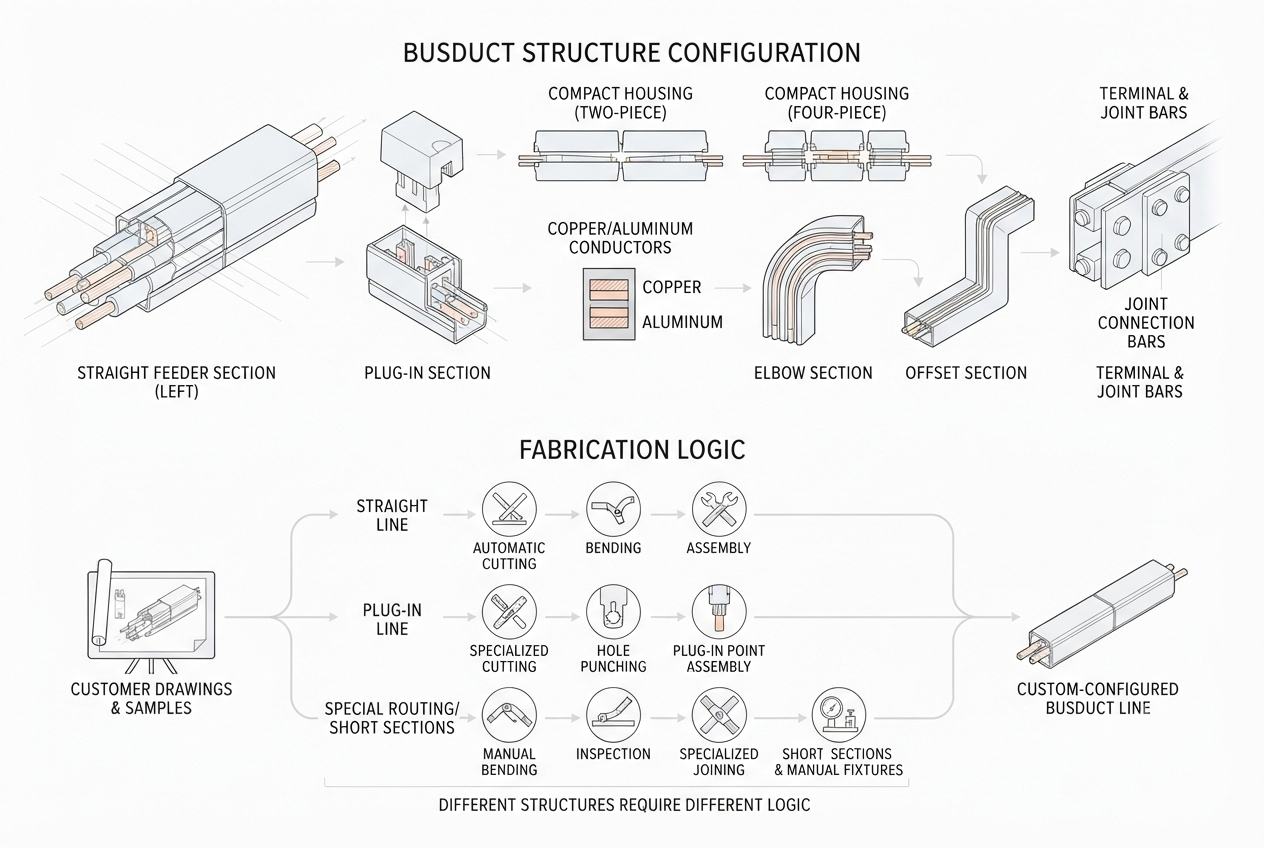

The fabrication solution can be planned around the customer’s actual busduct structure and product mix, including:

• Straight feeder and plug-in busduct sections

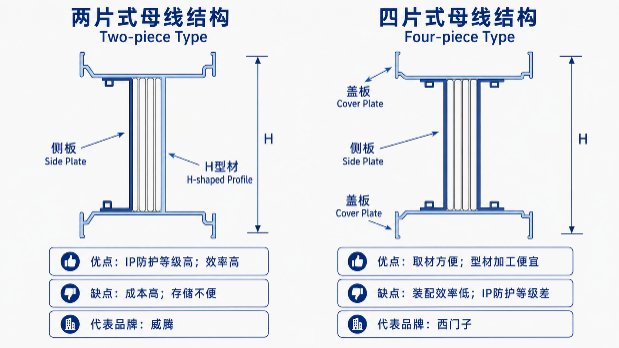

• Two-piece and four-piece compact busduct housings
• Copper or aluminum conductor systems
• Elbow, offset and other special routing sections
• Terminal sections and joint connection bars
• Short sections requiring manual inspection fixtures

Different product structures require different fixtures, insulation methods, housing processes and assembly sequences. The technical proposal should therefore begin with drawings and sample sections rather than selecting machines only by name.

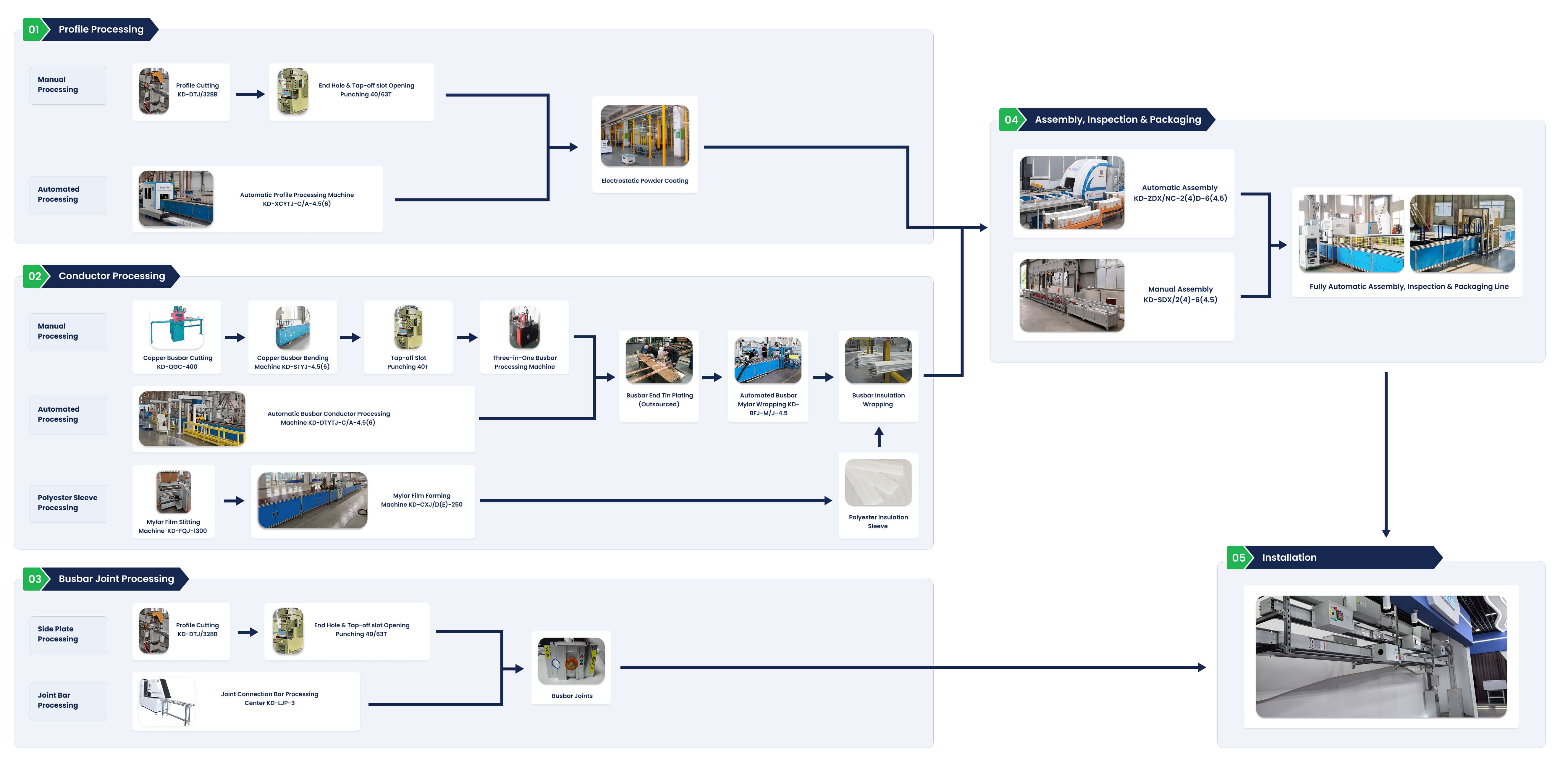

Complete Busduct Fabrication Workflow

Five stages. One flow. Every section accounted for.

Profile Processing

Cutting, end cutting, punching, and drilling of busbar enclosure profiles, followed by electrostatic powder coating.

Conductor (Busbar) Processing

Cutting of copper bars, end bending, terminal slotting, terminal pressing, and insulation treatment with polyester sleeves; select Busbar Joints undergo tin plating.

Automatic Assembly

Riveting and assembly of busbars and profiles, along with the connection of key components.

Inspection & Packaging

Finished product inspection, quality verification, and automatic packaging prior to final delivery to customers.

Busbar Joint Processing

Precision machining of key connecting components, including connecting bars and cover plates.

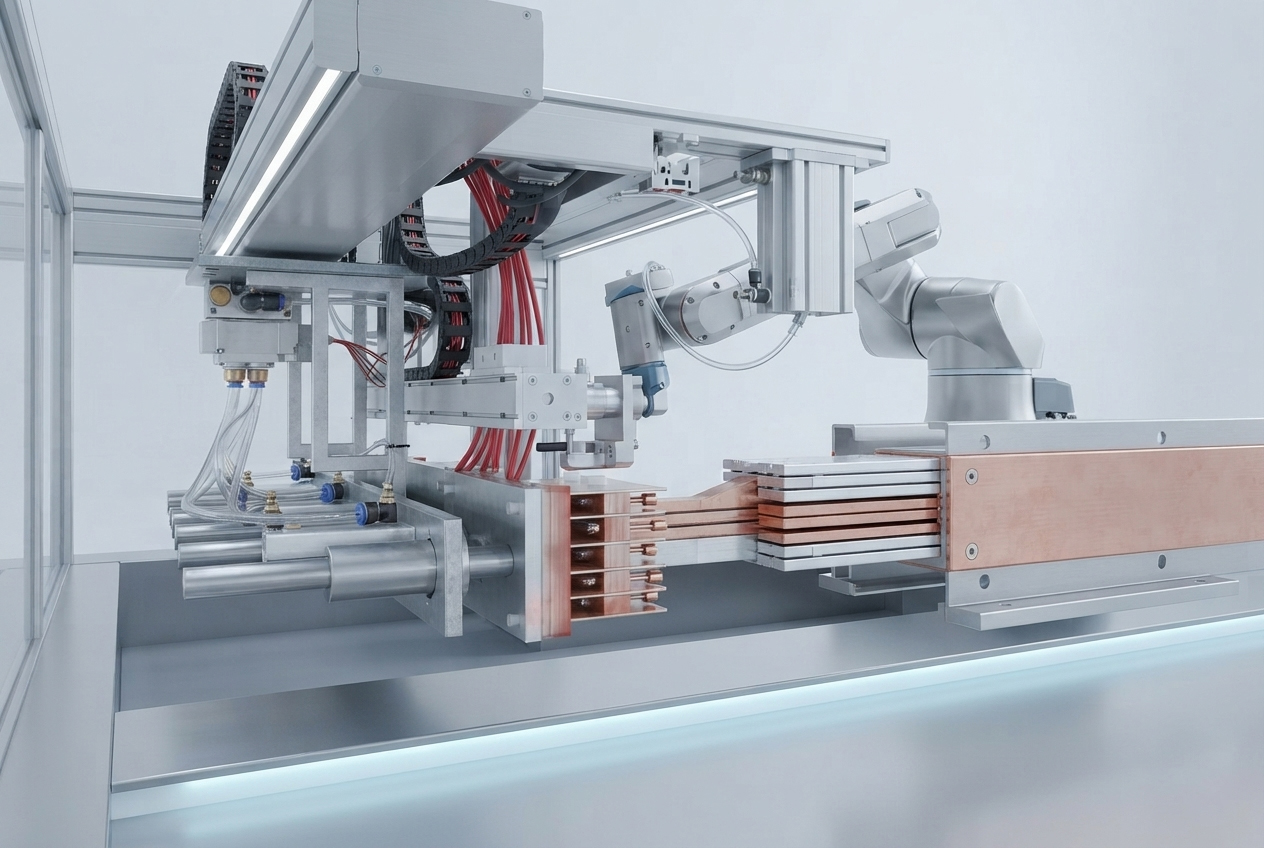

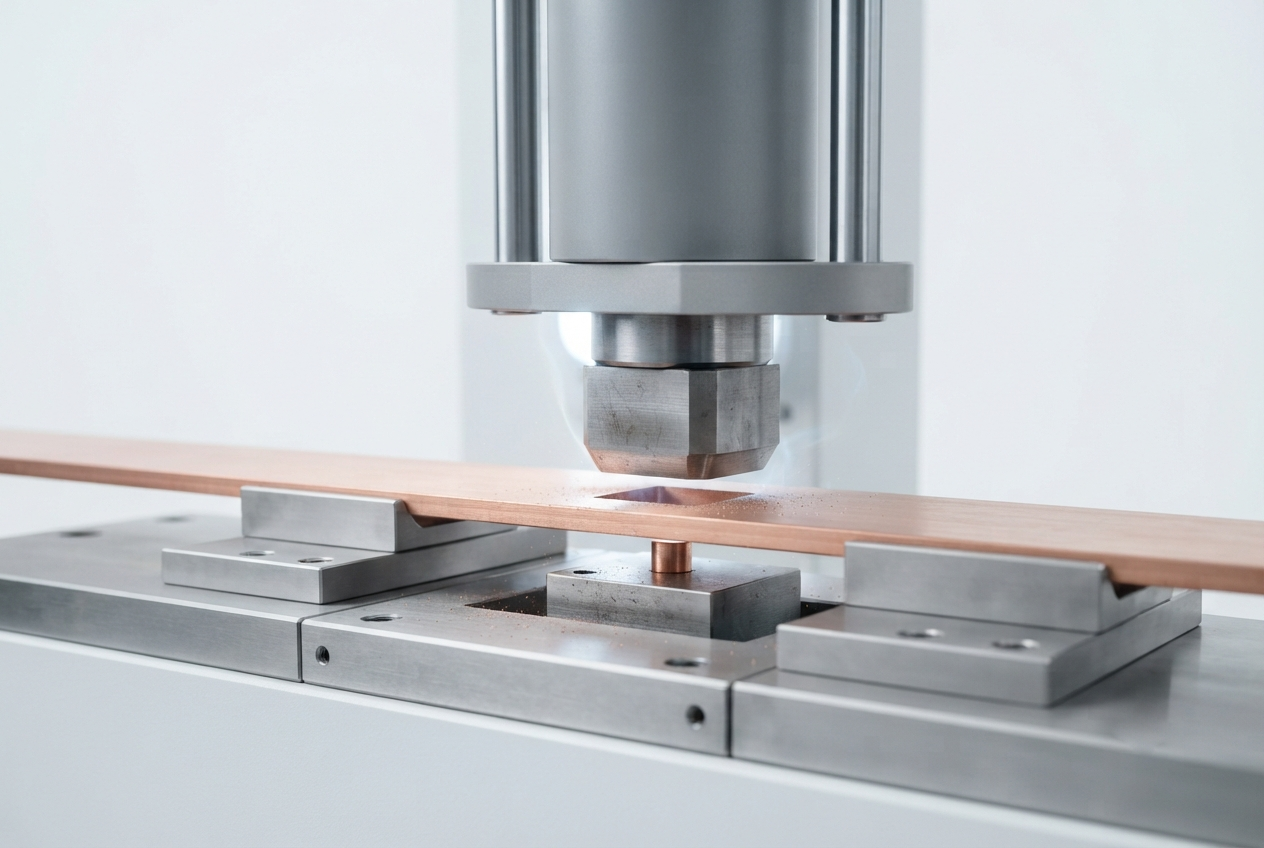

Conductor Processing — Accuracy Decided at the First Cut

The conductor stage determines whether the final busduct can be assembled accurately. The production plan may include fixed-length cutting, end punching, slot or pile opening, joint connection bar processing, marking and drawing-based bending. Copper and aluminum conductors may require different tooling, processing parameters and spring-back compensation.

Modular multi-station integration

Reduces labor costs and improves production efficiency

Connects to the conductor warehouse for fully unmanned operation

Optional modules: conductor end chamfering, conductor body polishing, loading/unloading system, laser marking system

Insulation Preparation & Wrapping

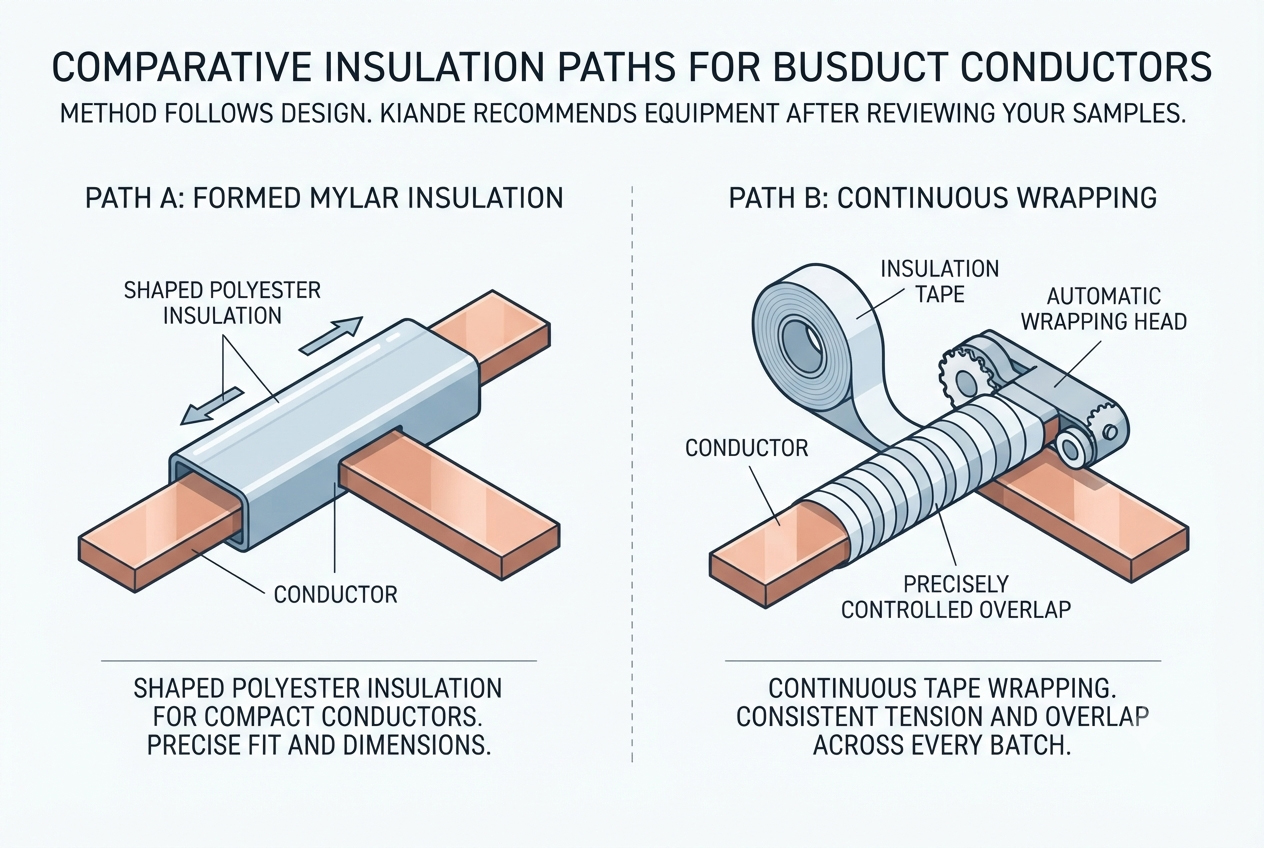

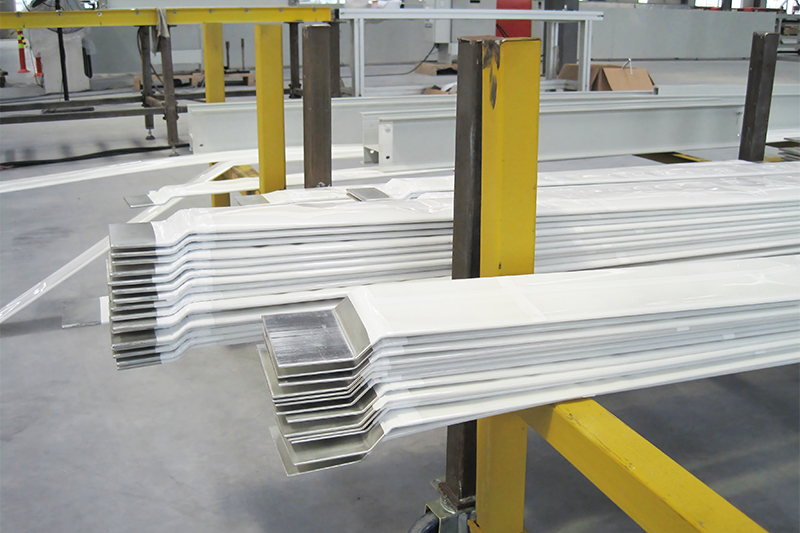

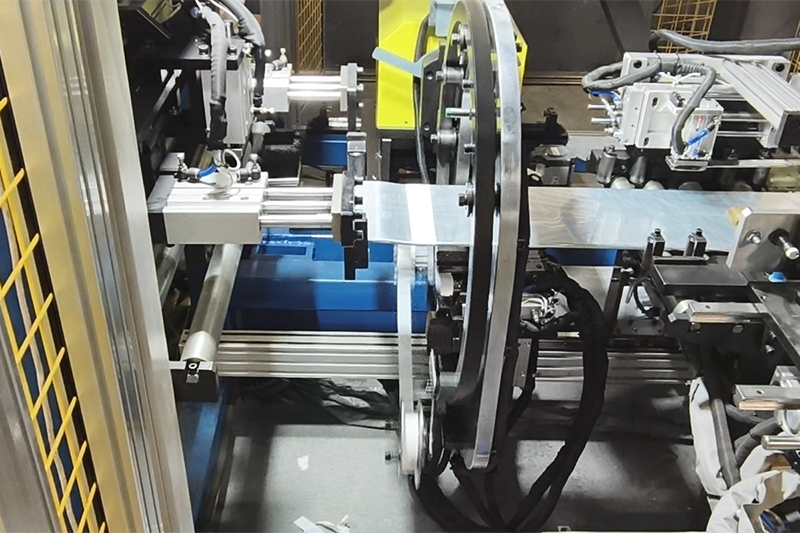

Insulation must answer to conductor width, length, corner geometry and the selected section structure. The Kiande range covers Mylar film forming, slitting and automatic wrapping — recipe-based control holding forming dimensions, cutting length, wrapping tension and overlap consistent across every batch.

Integral winding

Including winding at both ends and winding

in the middle.

View More

End winding

Manually wrap the intermediate sleeve, and automatically wind

the adhesive tape at both ends.

The method follows your product design and your qualified insulation process. Kiande recommends equipment only after reviewing your drawings and samples — never before.

Housing Fabrication — Engineered Beyond the Cut

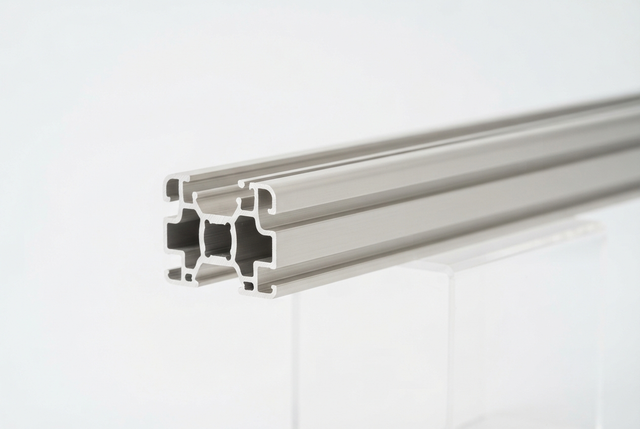

Profile loading, fixed-length cutting, punching, notching and angle cutting all answer to one set of constraints — housing width, side-plate structure, cover design, rivet position and assembly method — across straight and special sections alike.

Advantages can be referenced, integrating sawing and punching functions
The repeated positioning accuracy is ±0.3mm
Reduce labor and improve efficiency
Quality standardization and consistency

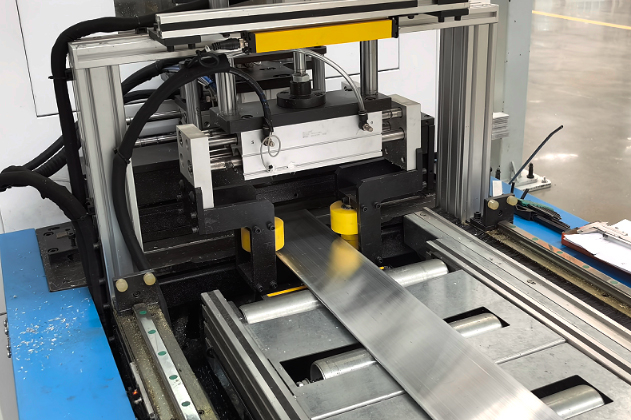

Cutting /Shearing
For copper and aluminum busbars.

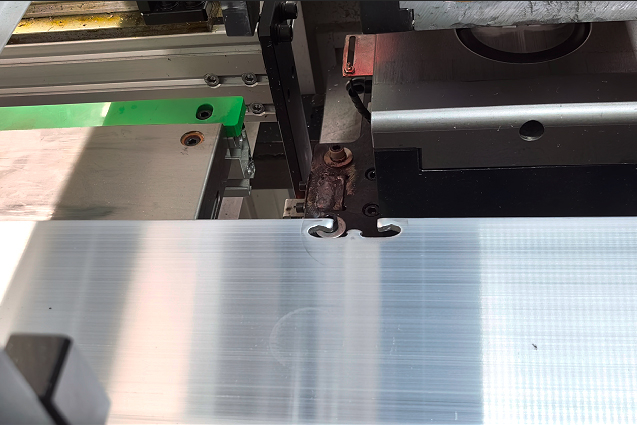

Punching
For round holes, slotted holes and customized holepatterns.

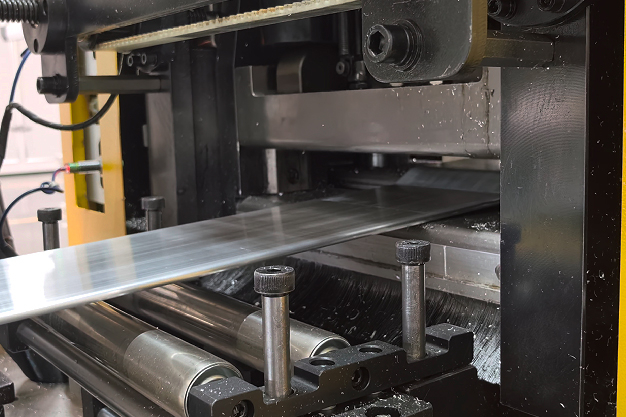

Bending
For flat bending, vertical bending and special angle forming.

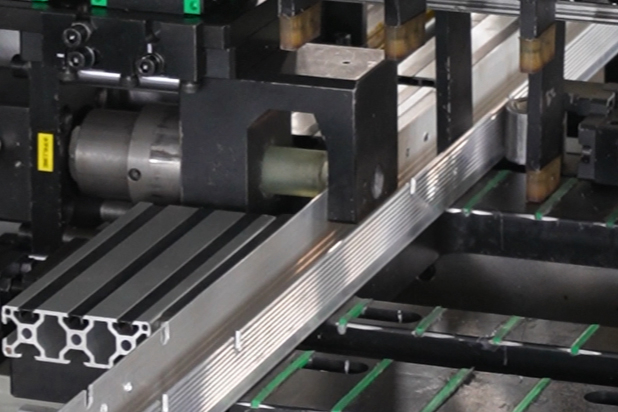

Profile Processing
For busbar profiles, riveting, clinching and joint-related
processing.

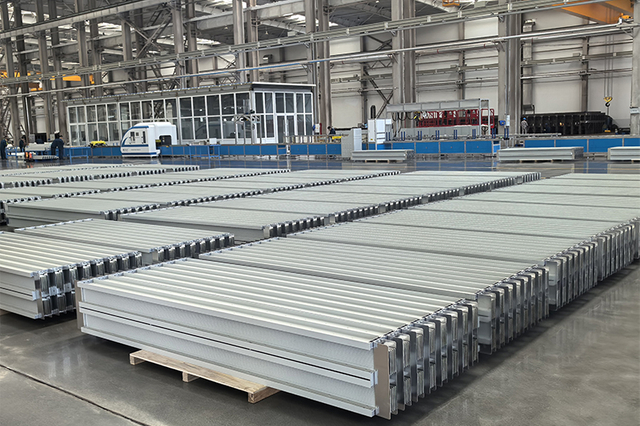

Busduct Production
For busbar trunking system manufacturing and assemblysupport.

Straight & Special Section Assembly

Straight busduct sections are suitable for standardized assembly flow, while elbows, offsets, terminals and short sections usually require dedicated positioning fixtures or manual intervention.

Straight Section Assembly

Straight sections earn a standardized flow. Automatic and semi-automatic systems position conductors, insulation and housing in sequence — then clamp, reverse and transfer each section for riveting or bolting.

Elbow & Special Section Assembly

Elbows, offsets, terminals and short sections follow a different discipline. Pneumatic fixtures hold conductor and housing to the required geometry, giving operators a stable platform for accurate riveting — every fixture engineered from your actual section dimensions.

Riveting, Bolting & Accessory Installation

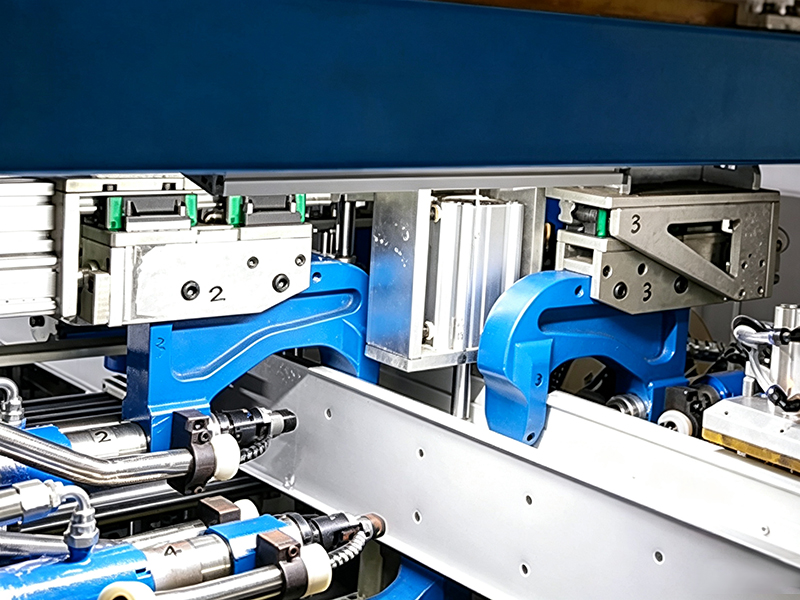

Self-piercing rivets, hollow rivets or bolts — the fixing method follows your housing design. Where the profile permits, self-piercing riveting removes pre-drilling entirely and integrates into manual, semi-automatic or fully automatic stations.

With the housing fixed, joint components, end parts, tap-off accessories and labels complete the section. Every workstation offers stable positioning, safe handling and the inspection space the section needs before electrical testing.

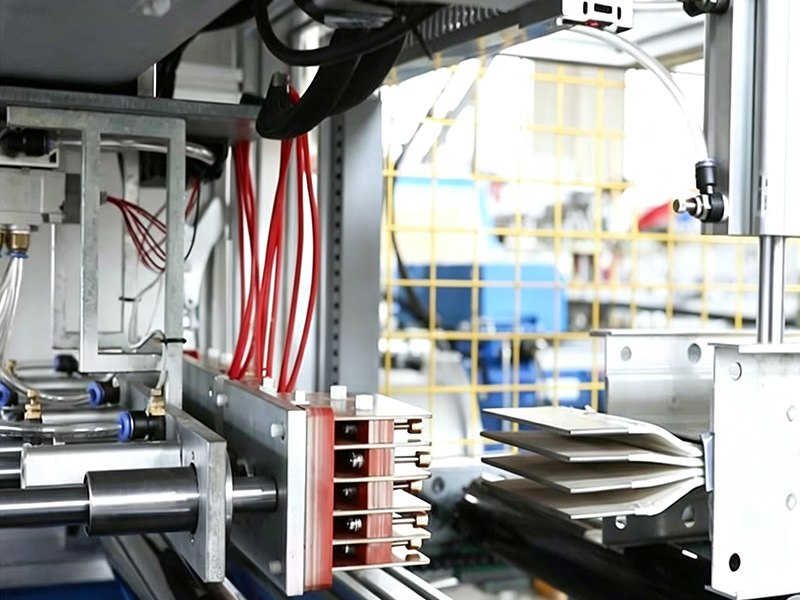

Electrical Inspection & Traceability

Every finished section passes the inspection sequence your quality plan and target market define. Kiande inspection equipment is configured for high-voltage withstand, insulation-resistance and grounding tests — reading the barcode or upstream production data, identifying the recipe, selecting the fixture and issuing the report, automatically.

Automatic inspection — repeatable batch testing for straight sections
Manual fixture positioning — short, elbow, terminal and special sections
Test reports stored, printed or linked to production records

Equipment enables the test; it does not replace certification. Final compliance rests on product design, manufacturing control and the applicable market standard.

Core Equipment for Busduct Fabrication

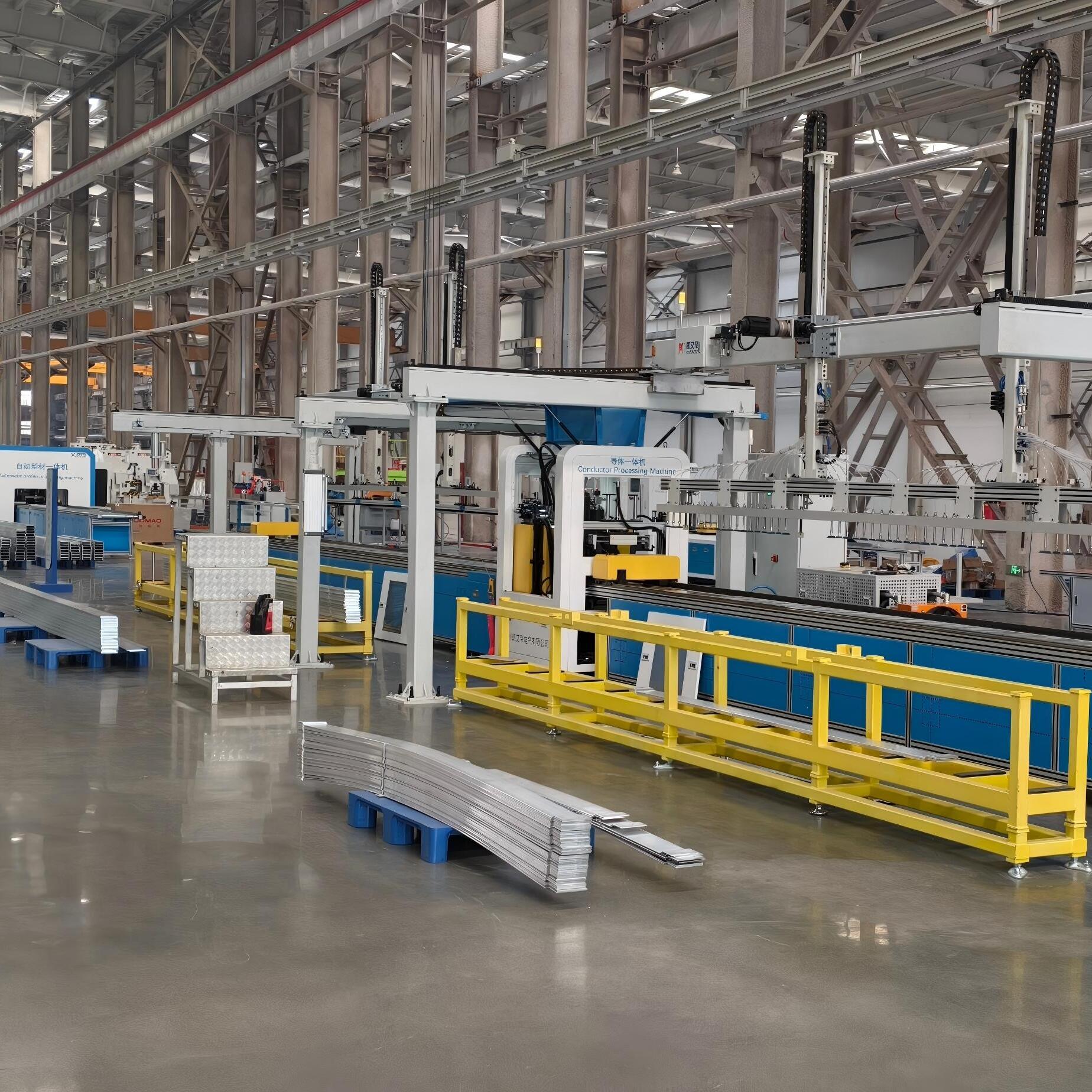

Busbar Conductor Multifunctional Processing Machine

conductor cutting, end processing and drawing-based operations.

Joint Connection Bar Processing Center

automated processing of joint connection bars.

Mylar Film Forming Machine

forming and cutting polyester insulation for compact busduct.

Automatic Busbar Wrapping Machine

controlled insulation wrapping and overlap.

Automatic Aluminum Profile Processing Machine

housing profile cutting and punching.

Automatic / Semi-automatic Assembly Line

positioning, reversing and fixing straight sections.

Self-piercing Riveting Machine

housing fastening without pre-drilling where the profile design permits.

Elbow Busbar Assembly Machine

fixture-based assembly of elbow sections.

Automatic and Manual Inspection Equipment

electrical release testing for straight and special sections.

Get A Quote

Production Line Configuration Options

The recommended automation level should be selected according to output, product variation, available floor space, labor structure and planned investment.

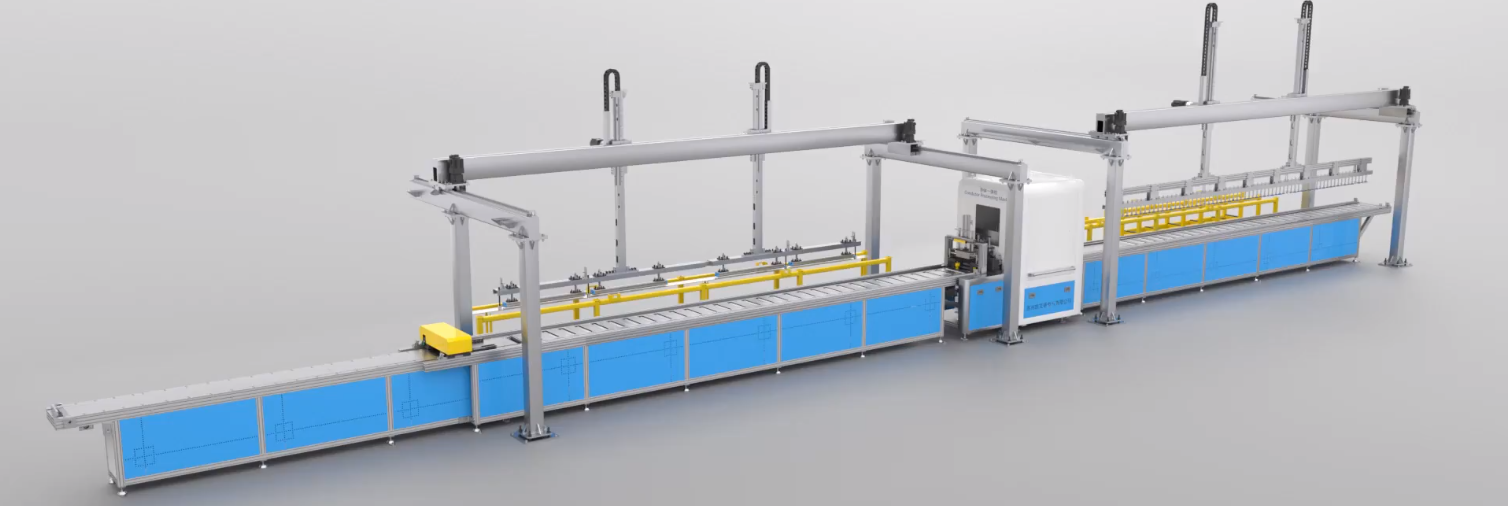

Automatic Line Configuration

Suitable for stable product structures and higher repeat volume. Connects conductor processing, insulation, housing fabrication, automatic assembly and inspection through barcode recipes, conveyors and production data.

Semi-automatic Configuration

Suitable for mixed production. Standardizes selected bottlenecks such as profile processing, insulation forming, section reversal and riveting while retaining operator flexibility for accessories and special sections.

Manual / Entry Configuration

Suitable for lower-volume production, frequent custom sections or manufacturers entering the busduct market. Uses standalone conductor processing, manual insulation or packing platforms, manual assembly fixtures and manual inspection positioning.

Information Required for a Custom Plan

Ask the customer to provide:
• Busduct type and cross-section drawing
• Straight, elbow, terminal and special-section product mix
• Copper or aluminum conductor dimensions
• Housing profile drawing and fixing method
• Insulation material, width and wrapping / forming specification
• Current production process and main bottleneck
• Target output per shift or per year
• Required automation level
• Electrical test items and report requirements
• Factory floor plan, utilities and material-flow direction
• Target market standards and internal quality requirements

Based on these inputs, Kiande can evaluate equipment selection, fixtures, tooling, line connection, inspection configuration and implementation scope.

Customer Case Format

Only publish results that can be supported by real project records. Do not use generic testimonials as the main proof.

United States
Russia
Ireland
United Arab Emirates
Saudi Arabia
India
Malaysia
Philippines
United States
Russia
Ireland
United Arab Emirates

FAQ

Do you provide installation and operator training?

Installation guidance, commissioning and operator training can be included according to the project scope and destination.
What should be prepared for a technical proposal?

Provide section drawings, conductor and housing dimensions, insulation specifications, product mix, target output, floor plan and required test items.
Can an automatic line connect with ERP or MES?

Data exchange can be planned through PLC, IPC, barcode and network modules. The required fields, protocol and responsibility boundary must be confirmed during technical review.
How should we choose between formed Mylar and automatic wrapping?

The insulation method should follow the busduct design, conductor dimensions and the customer’s qualified insulation process. Kiande can recommend matching preparation and wrapping equipment after reviewing drawings and samples.
Can the equipment process both copper and aluminum conductors?

Selected machines can process both materials, but tooling, cutting parameters and bending compensation should be confirmed according to material grade and dimensions.
Can one line manufacture both straight and elbow busduct sections?

The same project can cover both, but straight sections are more suitable for connected automatic flow. Elbow and other special sections normally use dedicated fixtures or manual assembly and inspection stations.
What equipment is required for busduct fabrication?

The configuration normally covers conductor processing, insulation preparation or wrapping, housing profile processing, assembly and riveting, accessory installation and electrical inspection. The exact equipment depends on the busduct structure and output target.
