Fabrication Elbow Busbar Assembly Machine for Busduct Profile Production

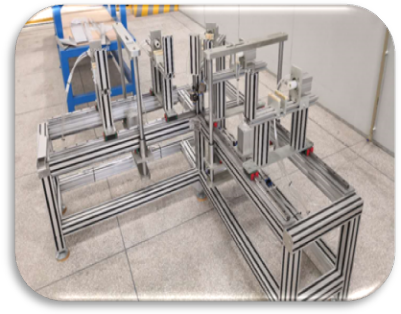

The fabrication elbow busbar assembly machine serves as a specialized, semi-automated solution engineered to fundamentally transform how elbow sections are assembled and riveted within compact busduct production facilities. By transitioning away from traditional, energy-intensive manual workstations, this equipment introduces a highly organized assembly line process that significantly boosts overall output rates and processing continuity. Facility operators will immediately notice the solid, vibration-free operation of the heavy-duty metallic framework, alongside the rhythmic, precise sound of pneumatic actuators aligning conductive components without hesitation. Supporting both horizontal (flatwise) and vertical (edgewise) configurations, this system guarantees the stable, high-precision construction of 90° L-type and Z-type busbar elbows, ensuring every joint meets strict industrial tolerances and visual inspection standards.

Enhancing Workshop Efficiency

✅ Engineered for Busbar Elbow Forming

• Completely suitable for fabricating L-type and Z-type elbows in both flatwise or edgewise configurations, providing exceptional versatility for complex facility layouts and diverse project requirements.

• Capable of supporting busbar lengths ranging from 0.5m to 1.2m. This expansive compatibility makes the machine the perfect fit for processing medium to large busbar sections without requiring constant mechanical readjustments between batches.

• Designed specifically for the rigorous demands of continuous busduct production environments, featuring a durable industrial finish that resists daily wear, maintaining precise alignment tolerances across thousands of operational cycles.

Precision Control Systems

✅ Advanced Assembly & Clamping Mechanism

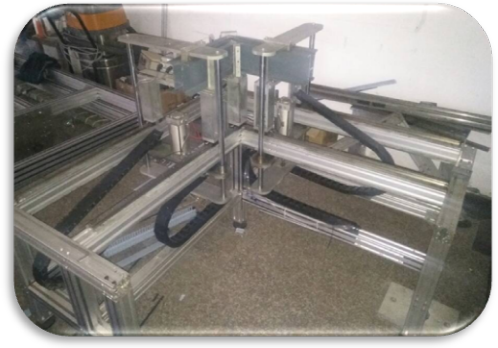

• Motorized lift system (up/down direction) intelligently adjusts based on specific busbar dimensions, allowing operators to position heavy conductive materials with minimal physical effort and exceptional spatial accuracy.

• Pneumatic clamping technology ensures a tight, gapless contact between the conductive copper bars and the outer insulation profiles. This multi-directional pressure application is crucial for maintaining structural integrity and preventing future electrical faults.

• Vertical (edgewise) clamping is executed by a synchronized upper-lower cylinder action, delivering uniform pressure that prevents material warping or surface scratching.

• Horizontal (flatwise) clamping utilizes a left-right cylinder compression method, firmly locking the assembly in place with a secure pneumatic engagement.

• Ultimately, this mechanism ensures compact, highly reliable joints that are essential for long-lasting electrical performance and the prevention of thermal hotspots in the final installation.

Adaptable Manufacturing Layouts

✅ Flexible Configuration Options

• Standard Components:

• 1× Power Cabinet, featuring intuitive controls, clear visual indicators, and industrial-grade wiring for safe, consistent power distribution across the entire workstation.

• 1× Busbar Elbow Assembly Line, fully constructed, rigorously tested, and calibrated for immediate deployment on your factory floor.

• Optional Add-ons:

• Pneumatic or hydraulic riveting machine modules can be integrated directly into the setup. This modular customization allows the system to adapt to various busduct enclosure materials, ensuring an efficient integration into your current manufacturing workflow.

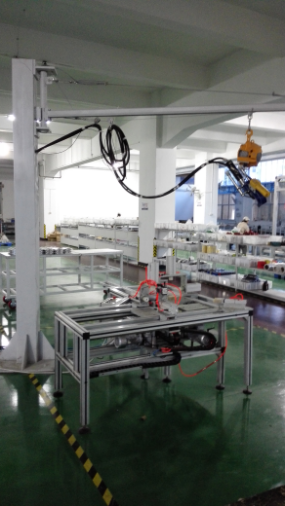

• An overhead hanger system designed for ergonomic part handling. This crucial addition drastically reduces the physical strain on operators moving heavy copper segments between stations, promoting a safer, more comfortable, and highly productive working environment.

Operational Capacity Data

✅ Technical Specifications

Understanding the exact operational capacities of your machinery is vital for maintaining an efficient workshop. The following specifications outline the precise capabilities of this assembly line, demonstrating its suitability for demanding continuous production cycles. Every parameter, from the available working area to the specific air pressure requirements, has been calibrated to deliver optimal performance without unnecessary energy consumption.

• Model: KD-WTGZ-SP/CZ-1500

• Max Working Area (X/Y Axis): 1500mm

• Clamping Fixtures: 3 sets

• Elbow Types Supported: Horizontal (flatwise), Vertical (edgewise)

• Power Supply: 380–415V AC, 50–60Hz, 1.5kW

• Air Pressure Required: 0.6MPa

• Machine Dimensions: L1800mm × W1800mm × H900mm

✅ Global Market Validation & Quality Assurance

Backed by extensive deployment across major international markets, this fabrication elbow busbar assembly machine has a proven track record of operational stability and exceptional client satisfaction. It serves as a cornerstone for facilities aiming to elevate their internal quality control standards. By minimizing human error through automated clamping and precise alignment, manufacturers can confidently produce busduct systems that meet stringent global electrical safety certifications. The machine's consistent, repeatable performance not only reduces material waste but also provides a reliable foundation for scaling up production volumes to meet growing infrastructure demands.

This advanced busbar elbow forming and riveting station offers a highly streamlined, semi-automatic assembly experience with significantly enhanced accuracy. By replacing strenuous manual tasks with intelligent mechanical assistance, it stands as an ideal upgrade for any ambitious busduct production line seeking better quality control, higher daily output, and substantially reduced manual labor costs. Investing in this equipment means investing in the long-term reliability, safety, and profitability of your manufacturing operations.
