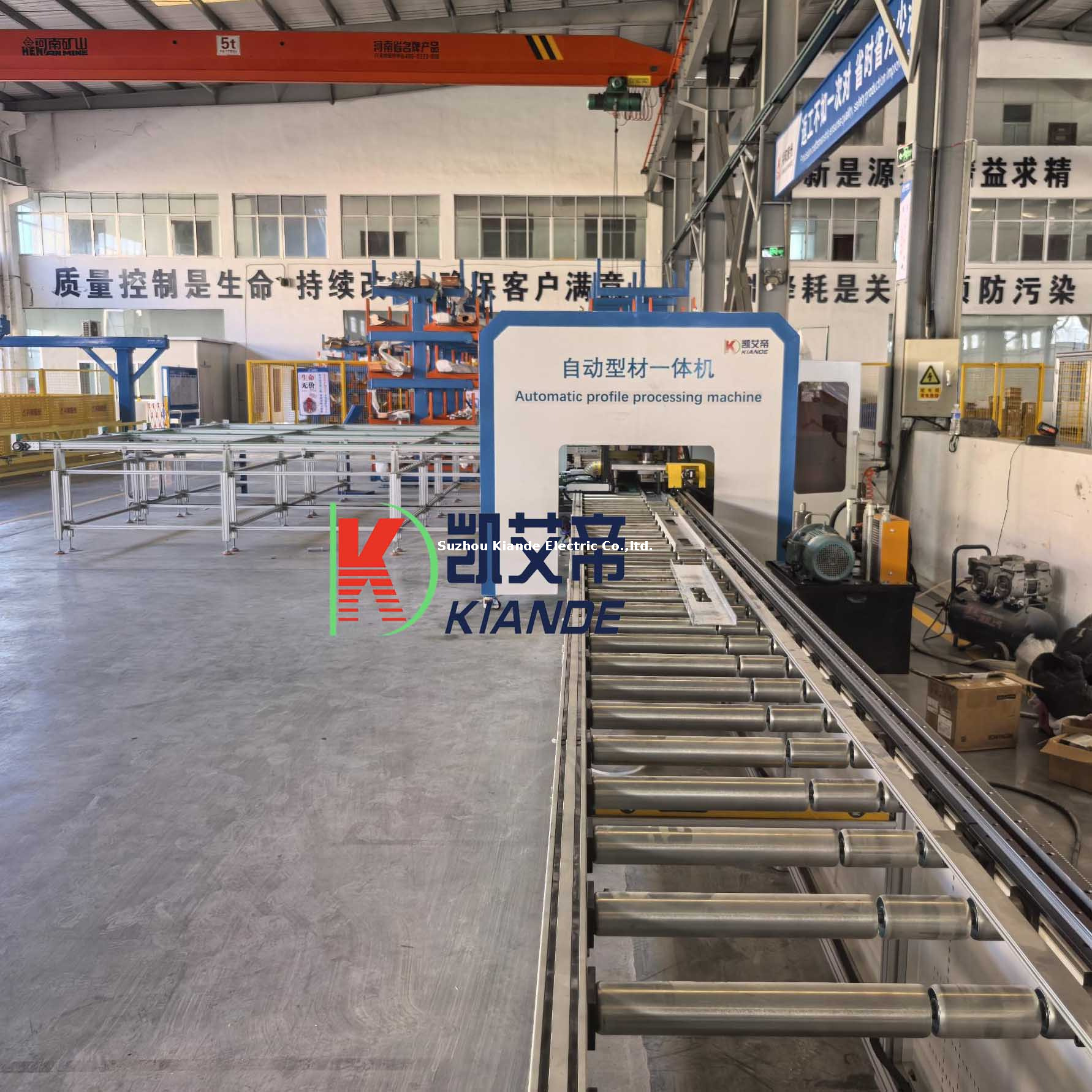

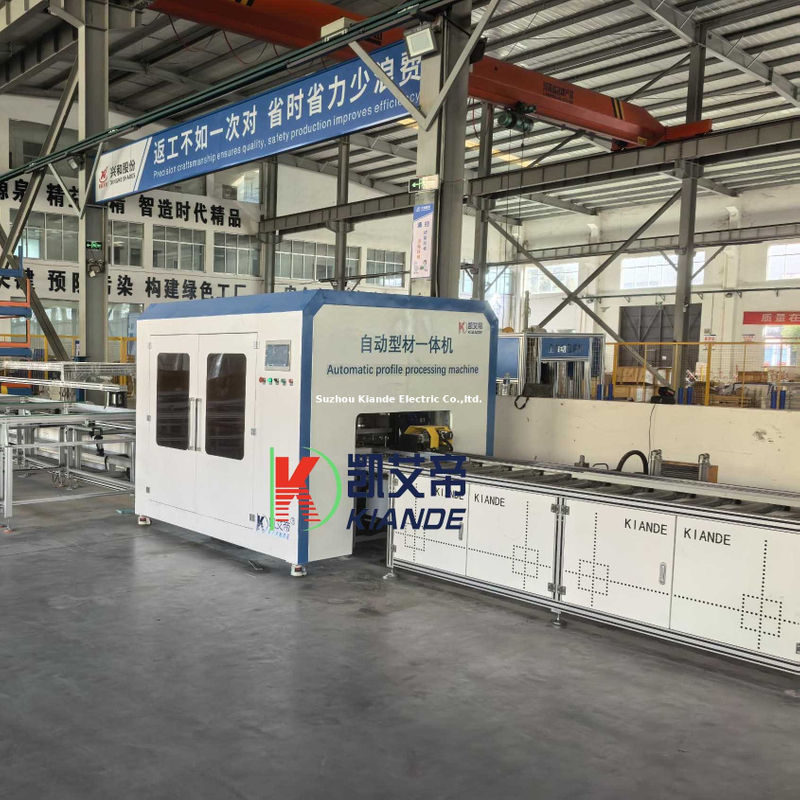

The Automatic Aluminum Profile Processing Machine is listed for aluminum busway housing production. The official page covers profile machining and also includes module handling and staging specifications. These descriptions do not identify one consistent configuration. Use the published table as a quotation reference, and confirm the required cutting, punching and handling scope against the actual housing drawing. |  Official Kiande Electric product image |
Configuration review required: the page header identifies KD-XCYTJ-C/A-4.5; the body uses KD-LMJ-Aluminum-Profile-Processing and mixes machining with stacking/lifting data. The table below reproduces the current published values without treating them as confirmed capacities.
| Parameter | Specification |
|---|---|
| Published Model / Identifier | Header: KD-XCYTJ-C/A-4.5; body: KD-LMJ-Aluminum-Profile-Processing |
| Profile Length | 1200mm – 6000mm (customizable) |
| Profile Width | 45mm – 250mm |
| Profile Thickness | 35mm |
| Max. Cover Plate Height | 35mm |
| Max. Side Plate Height | 30mm |
| Module Length Options | 14 500 mm / 4 500 mm (combinable) |
| Max. Payload per Workstation | 200 kg |
| Max. Stacking Height | 1 000 mm |
| Drive Control | Inverter-controlled |
| Guard Type | Steel-enclosed frame with safety guarding |
| Working Mode | Programmeable lift logic |
Housing Production FocusThe product is presented as equipment for busbar housing processing. | Profile Length ReferenceThe current table lists 1200mm–6000mm profile lengths, with customization noted. | Width EnvelopeA profile width range of 45mm–250mm is published in the table. |
Module Layout OptionsThe current table lists 14500mm and 4500mm combinable module lengths. | Drive ArrangementInverter-controlled drives are specified for the published module configuration. | Guarded FrameThe table describes a steel-enclosed frame with safety guarding. |
FunctionsHousing Production Focus — The product is presented as equipment for busbar housing processing. Profile Length Reference — The current table lists 1200mm–6000mm profile lengths, with customization noted. Width Envelope — A profile width range of 45mm–250mm is published in the table. | Working Principle
|
Busway Housing ManufactureAluminum housing preparation for busbar trunking systems. | Profile Handling ModulesStaging and lifting functions described in the current module table. | Busduct Production EquipmentProfile equipment used alongside the company’s other busduct machinery. |
Provide profile length, width, wall section and cover or side-plate geometry.
Specify whether the purchase concerns cutting and punching, staging modules or both.
Discuss module combinations and the receiving position of the next workstation.
Recommended acceptance checks for automatic aluminum profile processing machine:
Model ConsistencyCheck that the quotation, drawing and specification table identify the same machine. | Profile SampleReview an actual housing section rather than rely only on the product name. | Operation ScopeVerify the stated machining and handling functions individually. |
Profile Equipment PortfolioKiande lists profile processing machines in its busbar production range. | Related Housing WorkflowIts website also covers assembly, insulation processing and inspection equipment. | Customization ActivityThe official company profile explicitly describes manufacturing and customizing busbar production machines. |
Housing geometry can be reviewed in the context of the surrounding busduct production process.
Published module dimensions provide a starting point for factory layout review.
Engineering design is one of the departments identified in the company profile.
Related machines for busway housing and conductor production: Busbar Conductor Multifunctional Processing Machine, Manual Assembly Machine, Automatic Busbar Assembly Line.
Busduct housing manufacture
Aluminum busway profile processing
Electrical production equipment
Aluminum profile processing forms part of Kiande’s equipment business for electrical manufacturing. Its official profile identifies Suzhou as the headquarters location and Kiande (Zhenjiang) Automation and Technology Co.,Ltd. as the manufacturing center. |  Factory scene published on Kiande’s official sister website |
Include section details, finished length and machining positions.
Ask for a model-specific specification and arrangement drawing.
Review profile transfer and downstream assembly requirements in the quotation.
Kiande’s official website displays an invention patent document for busduct processing equipment. This is a company technology document. It does not establish CE conformity or current ISO certification for every product configuration. |  Company-published invention patent document |
The current table lists 1200mm–6000mm and notes customization. The model-specific processing range must be confirmed because other parts of the page describe different equipment.
The table labels 35mm as “Profile Thickness” and separately lists a 35mm cover-plate height. Confirm the drawing and the meaning of this field before using it as a wall-thickness limit.
The current module table lists 14500mm and 4500mm lengths as combinable. This describes the published module arrangement, not a verified machining envelope.
The current table lists 200kg per workstation alongside handling specifications. Confirm whether that value applies to the selected profile-processing configuration.
A model-specific CE claim is not established by the URL wording. The current table includes a 45mm–250mm width range, but conformity documentation must identify the actual ordered model separately.
The page header names KD-XCYTJ-C/A-4.5, while the revised content uses KD-LMJ-Aluminum-Profile-Processing. Obtain one consistent specification and drawing before ordering.
