Busbar profile processing machine, operator will input values such as length, width, holes position, quantity and etc. to initiate automatic working procedures including ends cutting, punching, and etc..
1 Multi functional processing busbar profile;
2 Saving labor and make maximum of raw material.

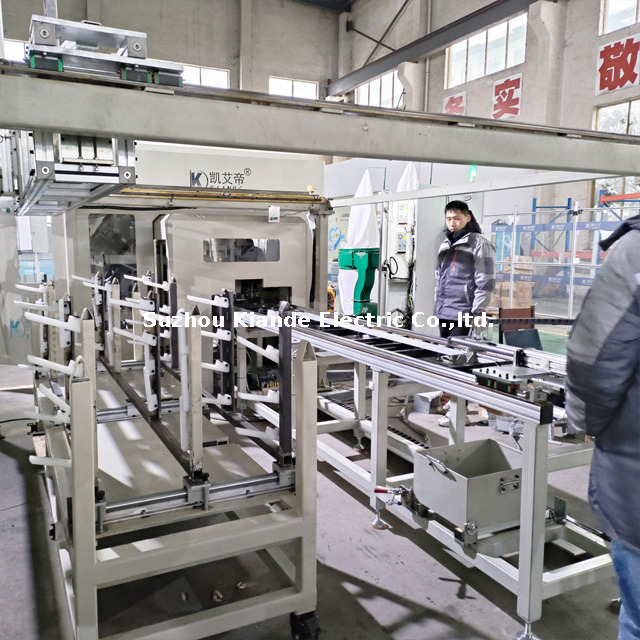

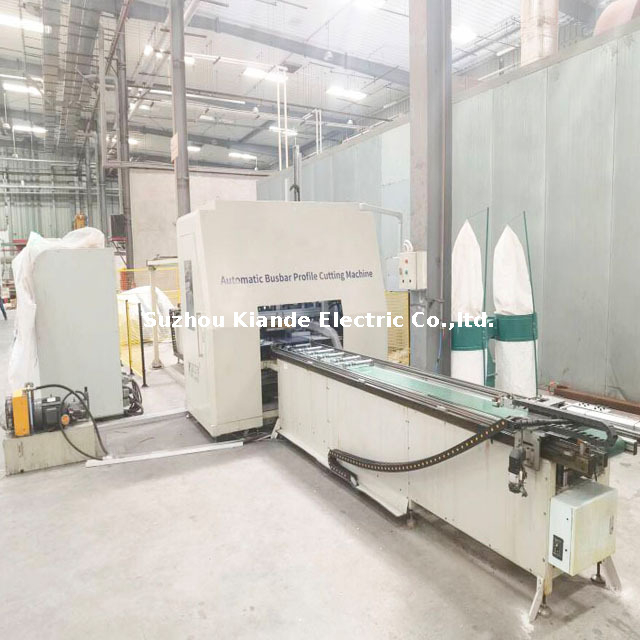

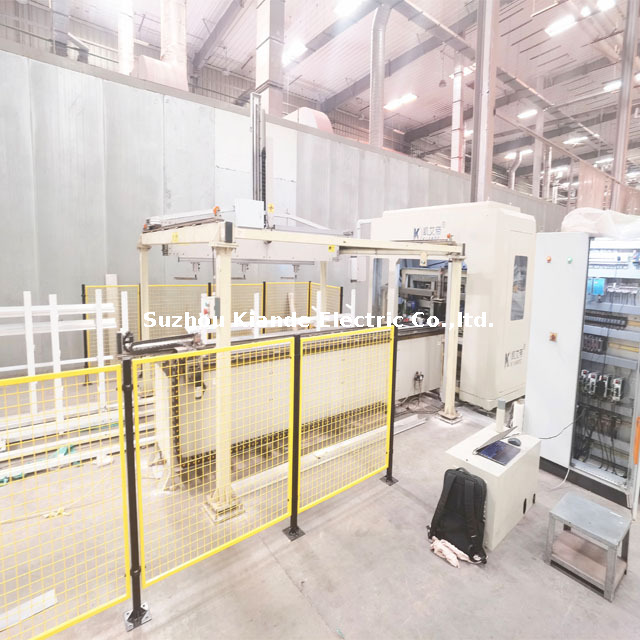

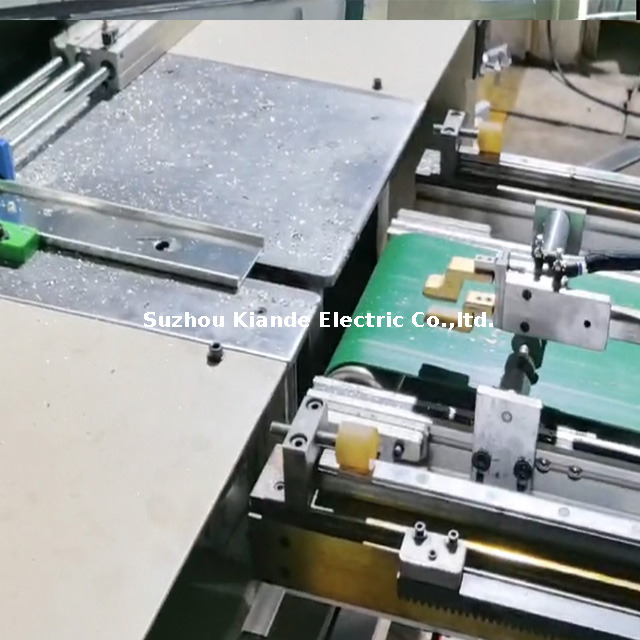

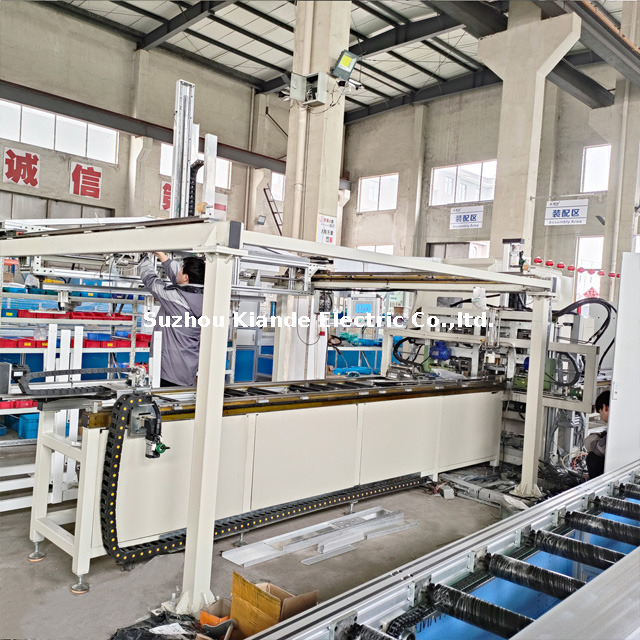

The Aluminum Profile Processing Machine represents a highly precise cutting solution specifically engineered for aluminum profiles utilized within busbar production lines. When operating, the equipment produces a steady, controlled hum, slicing through dense industrial aluminum with minimal vibration, leaving behind a smooth, cool-to-the-touch metallic finish. Designed to deliver consistent, heavy-duty performance, this dual-head cutting system facilitates the rapid, highly accurate, and angled cuts essential for constructing rigid electrical housings and distribution enclosures.
Whether your facility requires sizing structural mounting rails, shaping complex support profiles, or preparing protective casings for extensive duct systems, this machinery ensures repeatable dimensional accuracy. By seamlessly integrating into automated assembly lines, it elevates the overall output capacity while maintaining strict engineering tolerances, ensuring every component fits perfectly during final assembly.
Independent dual-head configuration permits simultaneous 45° and 90° angle cuts, completely removing the necessity for manual repositioning and reducing operator fatigue during long shifts.
Tailored specifically for industrial-grade aluminum profiles utilized in low and medium voltage trunking systems, ensuring exact alignment for complex corner joints and structural nodes.
Equipped with an advanced servo motor drive paired with heavy-duty ball screw mechanisms, guaranteeing pinpoint profile positioning without mechanical backlash.
Supports automatic length compensation and rapid material feeding for uninterrupted continuous operations. Built-in intelligent cutting optimization algorithms work in tandem with an automatic chip removal system to maximize the yield of expensive aluminum raw materials by minimizing offcut waste.
Utilizes premium carbide-tipped saw blades (capable of accommodating up to 500mm diameters) to produce exceptionally clean, burr-free edges that require no secondary deburring or finishing.
Adjustable cutting speed and stroke mechanisms prevent any structural deformation or thermal warping of the profiles during intensive mass production runs.
Features an intuitive touchscreen HMI panel for rapid parameter configuration, allowing operators to instantly adjust angle settings and length dimensions with gloved hands.
The control architecture deeply integrates shift production statistics, automatic data backups, and multi-recipe program storage. This empowers floor managers to track output accurately and switch between distinct product batches instantly, significantly elevating workshop management efficiency.
This processing equipment is fundamentally optimized for a variety of critical fabrication tasks within electrical infrastructure development:
Slicing heavy-duty aluminum enclosure profiles to exact lengths prior to subsequent punching, bending, and final assembly stages.
Shaping structural support frames, internal guide rails, and mounting brackets utilized extensively in complex electrical distribution lines.
Executing high-throughput preliminary cuts before the profiles undergo CNC drilling or specialized insulation wrapping procedures.
Accommodating highly mixed production runs through the use of customized fixtures and modular tooling options tailored for varying profile specifications.
The equipment's role proves exceptionally critical within modern fabrication workshops where precision, operational speed, and process automation dictate the ability to scale output. By eliminating manual measuring errors and ensuring every cut aligns perfectly with engineered blueprints, facilities can maintain rigorous quality control standards while meeting demanding delivery schedules.
No. | Parameters | ||
Model | KD-XCYTJ-C/A-4.5(6) | ||
Function | Vertical punching | Horizontal punching | Drilling |
Can be customized | |||
Force | Vertical punching | 300KN | |
Horizontal punching | 30 KN | ||
Stroke of X Axis | 3000mm | ||
Speed of X Axis | 0~150mm/s | ||
Marking | Barcode, laser( customized) | ||
Conductor Size (Aluminum) | Length | 1200mm~3000mm | |
Width | 45mm~220mm | ||
Thickness | 2.5mm~5mm | ||
Maximum width | 49mm | ||
Maximum height | 39mm | ||
Positioning Accuracy | ±0.3mm | ||
Repetitive Positioning Accuracy | ±0.5mm | ||
Saw Blade Power | 3kW | ||
Saw Blade Diameter | 405mm | ||
Max.Length | 3000mm | ||
Min. Length | 275mm | ||
Max. Hydraulic Force | 31.5MPa | ||
Power | 380~415VAC 50~60Hz 10kW（customize） | ||
Built for Specialized Lines: Engineered with a tailored configuration specifically designed for handling the unique geometric profiles of aluminum used in electrical distribution infrastructure, ensuring perfect compatibility.
Stable Industrial Frame: Constructed with a heavy-duty, anti-vibration cast base that dampens acoustic noise and prevents microscopic deviations during high-velocity cutting, resulting in superior edge finish.
Comprehensive Service & Maintenance: Designed for easy blade replacement and featuring an auto-lubrication system. We provide end-to-end support including on-site installation, operator training, preventative maintenance schedules, and 24/7 remote diagnostic troubleshooting.
Uncompromising Safety & Global Compliance: Strictly adheres to CE and ISO international manufacturing standards. The machine is fully equipped with enclosed protective shielding, servo overload protection, and an intelligent emergency stop mechanism to guarantee industrial-grade operational safety.
Advanced Dust Collection System: A high-capacity vacuum and filtration unit designed for clean workshop integration, effectively capturing microscopic aluminum shavings to maintain a pristine and safe working environment.
Automated Material Handling: Motorized profile loading and unloading tables that reduce manual lifting, streamline the feeding process, and synchronize perfectly with the machine's operational tempo for uninterrupted throughput.
Digital MES/ERP Integration Module: A sophisticated software interface that supports seamless connection to your enterprise management systems. This enables real-time tracking of production metrics, intelligent scheduling of fabrication tasks, and remote monitoring of equipment status across the facility.
Looking to significantly upgrade your aluminum profile cutting process and eliminate production bottlenecks? Our engineering team is ready to assist you in selecting the ideal equipment configuration tailored to your specific fabrication requirements. Reach out to us today to receive a comprehensive, detailed quotation, schedule a live machine demonstration, or discuss customized tooling options based on your current production line layout. We understand the unique challenges of scaling electrical infrastructure manufacturing and are committed to providing solutions that deliver immediate operational improvements and long-term reliability. Let us help you achieve superior cutting precision and maximize your material yield.
