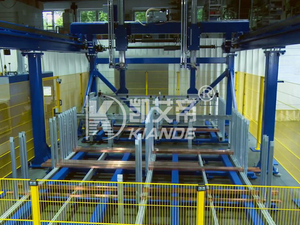

Automatic assembly line is customized according to clients’ busbar type. It can achieve unmanned operation no matter the busbar is fixed by rivet or bolt. Currently the busbar type is mainly divided into two types: two-piece type and four-piece type.
By automatic assembly and fixing, the automatic assembly machine will help to reduce manpower and improve the product quality and working efficiency. The working principle is to recognize the busbar type and adjust all the parameters in the machine automatically by scanning the bar code. By module interconnection among PLC, network, touch screen and IPC etc., automatic assembly machine can also achieve information communication with ERP, automatic inspection machine and other related machines.

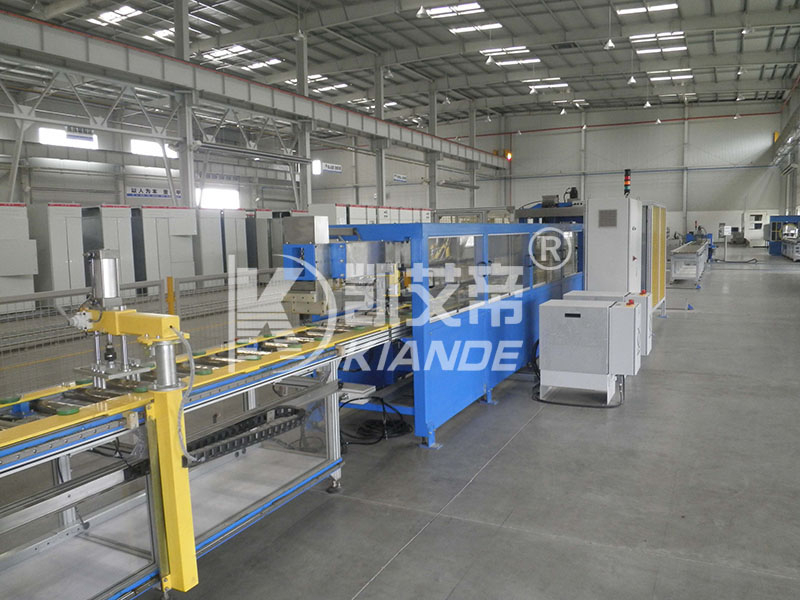

This Automatic Busbar Assembly Line is meticulously designed for high-precision, fully automated assembly of electrical busbar systems, specifically tailored to meet rigorous European industrial standards. Engineered to optimize modern manufacturing workflows, the equipment effectively supports both two-piece and four-piece busbar tray structures. By integrating advanced barcode scanning technology, the system enables intelligent, on-the-fly adjustment of operational parameters, ensuring that complex production requirements are met with exceptional accuracy and minimal manual intervention.
Whether your specific production process relies on automated rivets or secure bolts, this sophisticated equipment guarantees unattended continuous operation. It is strategically developed to address the growing demand for efficient, highly consistent, and intelligent busbar production lines across Europe. By minimizing manual handling and automating critical assembly phases, production facilities can significantly reduce labor dependencies, mitigate human error, and maintain a steady, high-volume output that aligns with modern lean manufacturing principles.
✅ Optimized for CE-certified busbar assembly systems, ensuring strict regulatory compliance.
✅ Ideal for both low and high-voltage busbar manufacturing lines requiring superior precision.
✅ Supports flexible automation, rapid changeovers, and uncompromising batch-level consistency.
Manufactured under strict adherence to CE directives and EN standards, this assembly line provides European buyers with complete assurance regarding safety and regulatory compliance. The system is built utilizing internationally branded components, ensuring long-term reliability and straightforward procurement of replacement parts. Featuring a highly secure wiring layout and intuitive, user-friendly interfaces, the equipment is fully prepared for direct deployment in European factories. This commitment to standardized engineering significantly reduces installation risks and accelerates the commissioning process for new manufacturing facilities.
At the core of its flexible automation capabilities is a highly responsive built-in barcode recognition system. As materials enter the line, the scanner instantly identifies specific busbar types and automatically loads the corresponding operational program and machine settings. This completely eliminates the need for manual intervention during product changeovers. This fluid transition enables multi-format, highly adaptable production runs, significantly improving overall equipment utilization, minimizing costly downtime, and allowing facilities to process diverse batch orders with unprecedented efficiency.
Designed for the future of manufacturing, the machine is built on an advanced, modular PLC+IPC (Programmable Logic Controller + Industrial PC) architecture. This intelligent control system supports continuous, real-time data exchange with enterprise-level ERP systems, MES platforms, and inline testing equipment. By bridging the gap between shop-floor operations and top-floor management, it provides an Industry 4.0-ready infrastructure tailored for forward-thinking European clients. Optional intelligent features include remote diagnostics, over-the-air online updates, and multilingual HMI (Human-Machine Interface) systems, which collectively empower operators and maintenance teams with comprehensive control and operational visibility.
To accommodate varying structural designs and production volumes, the assembly line offers highly configurable automatic riveting stations. These units are engineered to deliver precise mechanical fastening, ensuring the structural integrity of every completed busbar assembly.
Two-piece busbar production: Equipped with 2 synchronized auto-riveting units for streamlined, high-speed fastening.
Four-piece busbar production: Configured with 4 heavy-duty auto-riveting units to handle complex structural requirements with ease.
Characterized by their exceptionally high cycle time and pinpoint positioning accuracy, these automated stations ensure solid, reliable connections across all production batches. This level of precision virtually eliminates rework, enhances the electrical safety of the final product, and guarantees that every busbar meets stringent quality control criteria.
Operational transparency and preventative maintenance are critical for maximizing return on investment. The system incorporates comprehensive I/O self-checking logic designed to continuously monitor internal processes, instantly detecting and flagging real-time anomalies. This proactive approach dramatically enhances operational safety and prevents minor issues from escalating into major mechanical interruptions. Furthermore, the intelligent software tracks critical performance metrics, including machine uptime, detailed alarm logs, and overall cycle efficiency. By providing this valuable, granular data, the equipment facilitates in-depth OEE (Overall Equipment Effectiveness) analysis, empowering factory managers to implement data-driven lean production strategies and continuously optimize their manufacturing workflows.
The following technical data sheet provides detailed specifications for the CE Certified Automatic Busbar Assembly Line. These parameters cover processing capacities, control system configurations, and facility requirements to assist engineers and procurement teams in equipment selection and production site planning.
| Model | KD-ZDX/NC-2(4)D-6（4.5） |
| Max. Busbar Height | 350mm（Single layer） |
| Max. Busbar Length | 6000mm |
| Position Type | Unilateral position / Middle position |
| Working Efficiency | Around 3000 mm/2 min |
| Control Axis | 5 Axis |
| Control System | Network control, Online maintenance (optional) |
| Riveting Station Nos | 4 sets (Four-piece type) / 2 sets (Two-piece type) |
| Riveting Type | Automatic riveting |
| Power | 380~415VAC 50~60Hz 20kW |
| Equipment Dimension | L25000mm*W2000mm*H19000mm |
The CE Certified Automatic Busbar Assembly Line is engineered to meet the rigorous demands of modern electrical manufacturing. Designed for high-efficiency production environments, this equipment provides reliable assembly solutions across various industrial sectors, ensuring that finished products meet stringent quality and safety standards.
Electrical busbar trunking system manufacturers (low/high voltage): Suitable for producing compact and air-insulated busbar trunking systems. The automated assembly process ensures consistent pressure and precise alignment, which is critical for maintaining electrical conductivity and thermal performance in demanding industrial applications.
Electrical distribution cabinet and switchgear producers: Facilitates the rapid and accurate assembly of copper and aluminum busbars used in switchgear and distribution panels. This helps manufacturers scale up production while minimizing manual handling errors and material waste.
Smart railway systems, energy infrastructure, and data center power tracks: As infrastructure projects demand higher power distribution reliability, this assembly line supports the manufacturing of heavy-duty power tracks. It ensures the structural integrity required for continuous operation in data centers and transit networks.
European OEM/ODM companies focused on automation upgrades: Ideal for European manufacturers looking to transition from manual or semi-automatic processes to fully automated production. The equipment helps reduce labor dependency, standardize output quality, and increase overall factory throughput.
Integration with automatic inspection, cutting, and powder coating lines: Designed as a modular unit, this assembly line can be smoothly integrated into existing factory layouts. It works in tandem with upstream cutting machines and downstream testing or coating equipment to create a continuous manufacturing workflow.
Understanding the specific regulatory and operational requirements of the European market, we provide comprehensive support to ensure smooth installation, compliant operation, and long-term reliability. Our commitment extends beyond equipment delivery to offer a complete partnership for your manufacturing facility.
✅ Made in China, Trusted Worldwide – With a proven track record of successful exports to Europe, our machinery is built to international industrial standards, offering a reliable and cost-effective solution for upgrading your production capabilities.
✅ Complete CE Certification Documents – Compliance is a priority. We supply a full set of CE certification documentation, including detailed electrical wiring diagrams, comprehensive operation manuals, and precise 3D mechanical drawings to support your local safety audits and factory planning.
✅ Multilingual Remote Support – To minimize equipment downtime and facilitate smooth operator training, our technical team provides remote troubleshooting and guidance. Support is readily available in English, German, and French, ensuring clear communication with your engineering staff.
✅ Custom Configuration – Every production facility is unique. We offer customizable interface modules, software localization, and specialized fixture options to match your specific product designs and factory automation requirements.
For a tailored quote, machine demo or integration plan, contact our team. We are a leading China-based manufacturer of automatic busbar assembly lines, serving clients across Germany, France, Italy, Spain, and Eastern Europe with dependable machinery and responsive service.
Flexibility in production is essential for adapting to different project specifications. Our automatic assembly line is designed to handle various busbar structural designs, ensuring broad compatibility with standard market requirements.
Currently the busbar type is mainly divided into two types: two-piece type and four-piece type.

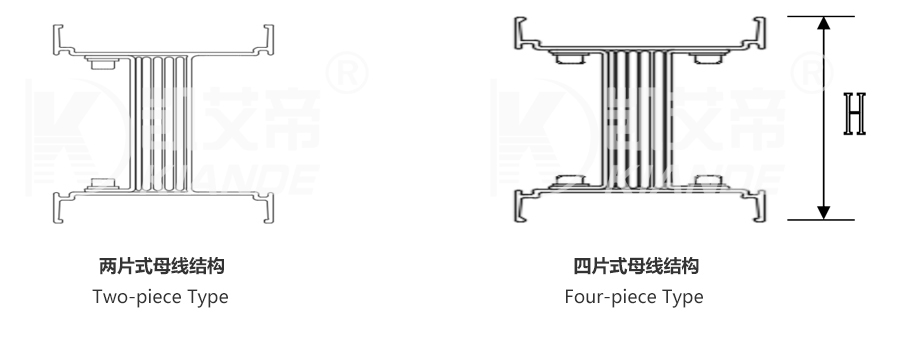

The two-piece busbar configuration typically consists of a simplified housing structure, which is widely used for standard power distribution tasks where quick assembly and cost-efficiency are prioritized. The four-piece busbar configuration involves a more complex housing assembly, providing enhanced structural rigidity and better heat dissipation capabilities, making it highly suitable for heavy-duty applications and high-current transmission systems. The assembly line is equipped with adjustable fixtures and programmable pressure controls to seamlessly switch between these two types, ensuring precise riveting and fastening without damaging the conductive profiles or the insulating layers.
