Engineered for absolute precision and maximum operational efficiency, this 3-in-1 multifunctional busbar processing machine integrates cutting, punching, and bending capabilities into a single, heavy-duty workstation. Designed specifically for handling dense copper and aluminum busducts, the equipment features a reinforced steel frame that actively absorbs and minimizes mechanical vibration during high-load fabrication cycles. Operators will immediately notice the smooth, tactile feedback of the responsive touchscreen interface, which dramatically simplifies complex metalworking tasks. By consolidating multiple processing steps into one centralized unit, manufacturing facilities can significantly reduce manual handling, eliminate tedious material transfer times, and optimize their floor space. Whether your production line requires standard right-angle bends or specialized crafts like surface embossing and axial twisting, the machine delivers consistent, clean, and dimensionally accurate results. The deep integration of intelligent controls ensures that every piece of conductive metal retains its structural and electrical integrity, providing a highly reliable foundation for complex power distribution assemblies.

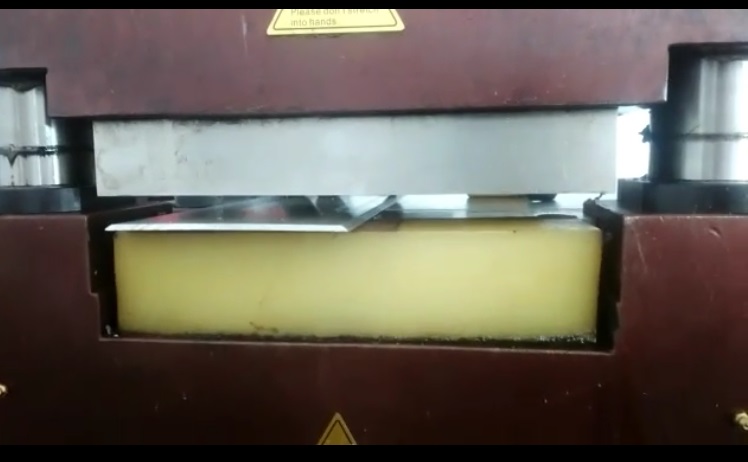

The machine utilizes a highly stable double-column shearing mechanism that applies even, immense downward pressure across the entire metal surface. This structural advantage ensures that every cut is exceptionally clean and perfectly flat, completely eliminating wasteful material scraps and preventing unwanted shear droops. The resulting metal edges are completely smooth to the touch and free of any sharp micro-burrs, which dramatically reduces the need for secondary manual grinding and preserves the maximum conductive cross-section of the busbar.

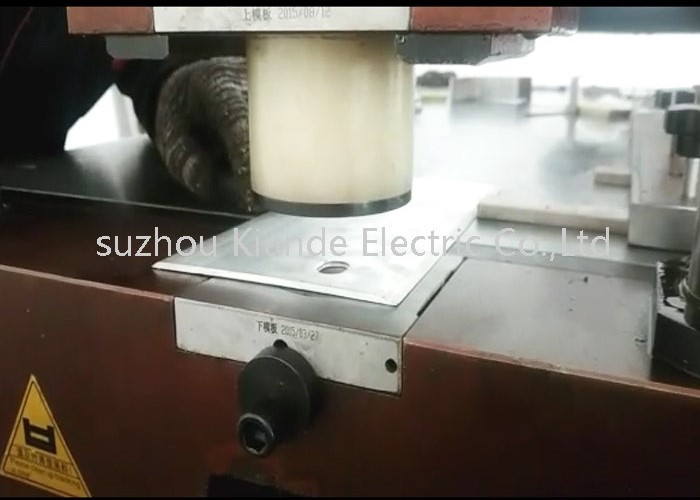

Engineered for absolute alignment precision, the punching station features a rigid single-arm integral cast structure. This open-front architectural design provides operators with an unobstructed, clear line of sight, allowing for effortless visual alignment of heavy copper plates before engagement. The concentrated force mechanism ensures that each punched hole is perfectly cylindrical with zero material distortion or warping around the perimeter, guaranteeing tight, secure, and flush connections for heavy electrical fasteners.

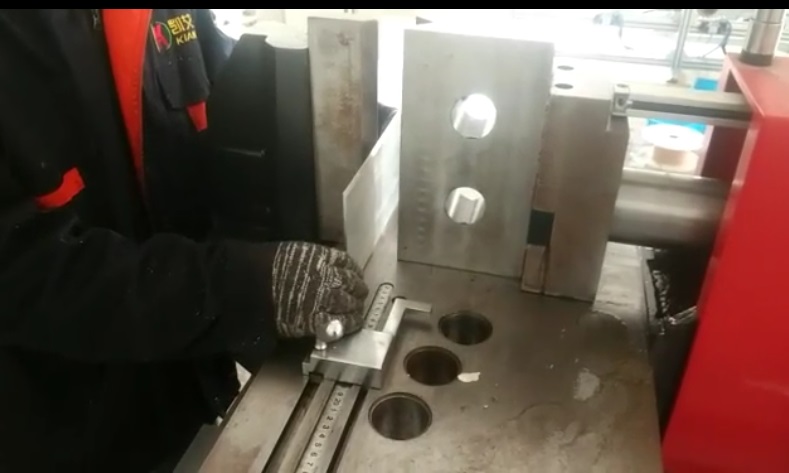

At the heart of the machine lies an advanced PLC and CNC control system, accessible via a highly responsive, full-color human-machine interface (HMI). This intelligent digital system supports automated parameter memory and complex angle calculations. Operators simply input the desired material thickness and target bending angle, and the system automatically calculates the exact mechanical stroke required. This eliminates manual guesswork, drastically reduces setup time between different batches, and ensures exceptional angle repeatability across massive production runs.
Fluid power is managed through a sophisticated, independent hydraulic system featuring three distinct oil cylinders and three dedicated oil pumps. This critical design choice allows the cutting, punching, and bending stations to operate simultaneously without any pressure drops or mutual mechanical interference. Furthermore, all hydraulic rubber hoses utilize the national standard A-type connection mode, providing a leak-proof, highly durable seal that withstands years of pressurized hydraulic fluid flow, ensuring long-term operational stability and workplace safety.
The physical capabilities of this equipment are specifically engineered to handle the demanding, continuous requirements of modern electrical manufacturing environments. With a massive nominal pressure capacity of 300KN distributed across the processing stations, the machine effortlessly cuts and bends solid conductive materials up to a maximum working size of 12x160mm. The expansive 1400x1000mm work bench provides ample, flat support for long, heavy busducts, actively preventing material sag and ensuring strict dimensional accuracy during complex fabrication steps. All integrated systems are intelligently housed within a compact boundary dimension of 1500x1150x1170mm, optimizing valuable factory floor space while maintaining a substantial, vibration-dampening total weight of 1270kg.
| Nominal pressure | 300KN | 300KN |
| Max. working size | 12x160mm | 12x160mm |
| Punching range | Ø4.3-25mm | Ø4.3-25mm |
| Max. vertical bending working width | 120mm | 120mm |
| Work bench size | 1400x1000mm | 1400x1000mm |
| Boundary dimension | 1500x1150x1170mm | 1500x1150x1170mm |
| Weight | 1270kg | 1170kg |
This versatile processing unit is an indispensable asset across a wide spectrum of heavy power distribution sectors. It is extensively utilized in the daily manufacturing of high and low-voltage switchgear, large-scale industrial transformers, and modern electric vehicle (EV) charging station networks. Additionally, it serves critical roles in elevator manufacturing and commercial shipbuilding, where precise, tight-tolerance power routing is absolutely non-negotiable. Beyond standard right-angle operations, the equipment fully supports specialized architectural copper work, including intricate surface embossing and complex axial twisting processes.
To ensure your manufacturing facility achieves maximum productivity from the very first day of installation, we provide a comprehensive suite of technical support services. This includes complete on-site equipment debugging, thorough hands-on or remote operator training programs, and a solid one-year warranty covering all core mechanical and electrical components. For specialized manufacturing requirements, we also offer extensive OEM customization capabilities, allowing the machine's software interface, physical tooling, and exterior aesthetics to be tailored precisely to your specific operational workflow and corporate brand identity.
