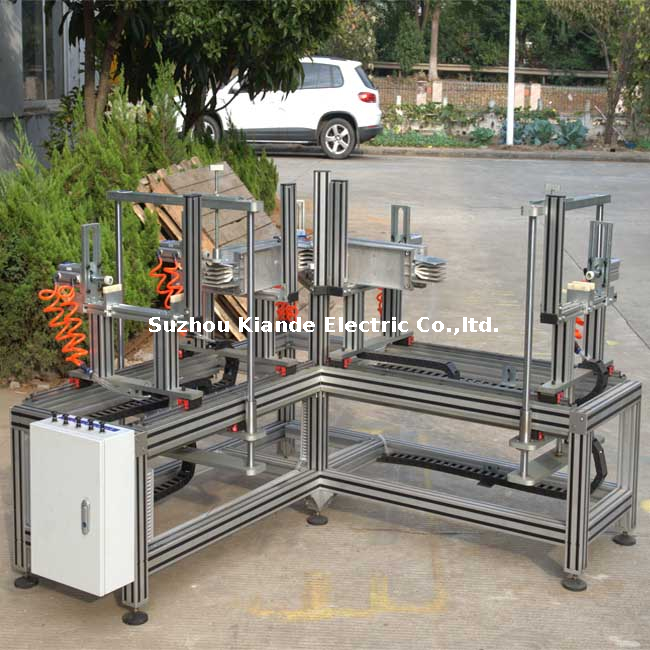

The Vertical Elbow And Offset Busbar Assembly Machine for Sandwich Busduct Clamp is mainly to use pneumatic clamp to position and fix busbar to make conductors close tightly in convenience of elbow offset busduct riveting. Engineered specifically for the rigorous demands of modern electrical component fabrication, this specialized equipment transforms the way conductive elements are aligned and secured. By integrating a highly responsive pneumatic control architecture, the machine ensures that copper and aluminum busbars of varying widths and thicknesses are handled with absolute precision. The tactile engagement of the heavy-duty clamps, accompanied by the distinct, rhythmic hiss of the pneumatic cylinders, provides operators with immediate sensory confirmation that the conductors are locked into their exact designated positions.
Achieving structural integrity in electrical pathways requires more than just force; it demands consistent, repeatable accuracy. The pneumatic clamping system delivers a uniform compressive load across the entire surface area of the busbar joints. This exact positioning completely eliminates the dimensional variations and alignment errors typically associated with manual assembly methods. As the clamps engage, the metallic conductors are forced into a tightly compressed arrangement, minimizing air gaps and ensuring optimal electrical conductivity. This level of processing accuracy significantly elevates the quality stability of batch assemblies, allowing facility managers to maintain strict operational tolerances while reducing the frequency of rework and material waste. The controlled application of force prevents surface deformation on the busbars, preserving the integrity of the conductive plating and ensuring long-term performance in demanding electrical environments.
Operational efficiency is another critical advantage of this automated assembly unit. By reducing the physical strain on operators and minimizing manual intervention, the machine substantially accelerates the production cycle for both horizontal and vertical elbow configurations. The streamlined workflow allows for rapid transition between different clamping stages, directly translating to higher daily throughput on the factory floor. Operators can manage the assembly process with simplified control inputs, ensuring that even complex offset busduct riveting tasks are completed swiftly and securely. The robust construction of the machine frame, coated in industrial-grade protective finishes, ensures that it withstands the continuous vibrations and mechanical stresses of a busy production environment. Operators appreciate the ergonomic layout of the control interfaces, which minimizes fatigue during extended shifts and promotes a safer, more focused working atmosphere.
No. | Parameters |
Elbow Type | Horizontal type, vertical type |
Power | 415VAC 50~60Hz 1.5kW |
Air Source | 0.6MPa |
Equipment Dimension | L1800mm*W1800mm*H900mm |
The versatility of the Vertical Elbow And Offset Busbar Assembly Machine extends across multiple sectors of electrical manufacturing. It serves as a vital asset within compact busduct production lines, switchgear manufacturing facilities, and the complex assembly of transformers and new energy power distribution systems. In these demanding environments, the ability to rapidly and reliably secure horizontal and vertical bends is essential for maintaining production schedules. The machine’s precise handling of heavy conductive materials ensures that the final electrical pathways are structurally sound and capable of handling specified thermal and electrical loads without degradation over time. By automating the critical alignment phase, manufacturers can achieve a higher degree of uniformity across their entire product range, establishing a strong foundation for reliable power distribution networks.
Recognizing that electrical infrastructure projects frequently involve unique dimensional requirements, we provide comprehensive customization for fixtures and tooling configurations. Whether your production involves non-standard elbow angles or specialized compact busduct cross-sections, the machine can be outfitted with tailored clamping jaws and positioning guides. This adaptability ensures that highly specific project demands are met with the same level of precision and structural integrity as standard configurations. The interchangeable tooling components are machined from hardened steel, offering a reassuringly solid feel and exceptional resistance to wear during continuous operation. This modular approach to tooling not only expands the machine's capabilities but also reduces downtime during product changeovers, allowing for a highly agile manufacturing process.
Reliability begins long before the equipment reaches your facility. Each assembly machine undergoes a stringent quality control and factory testing protocol to ensure it meets exact operational standards. Our technicians conduct a series of evaluations before dispatch:
Beyond the initial deployment, our commitment extends through a comprehensive lifecycle technical support program. We assist procurement and engineering teams starting from the early-stage technical scheme evaluation, ensuring the machine perfectly aligns with your facility's layout and production targets. Our services include detailed on-site installation guidance, hands-on operator training to familiarize your staff with the pneumatic controls, and a reliable, long-term supply of critical spare parts. If you have any other requirement, please contact us freely! Our engineering team is prepared to analyze your specific production challenges and develop a tailored solution that maximizes your operational efficiency.
