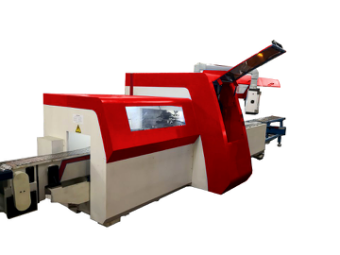

The Hydraulic Bus Bar Multifunctional Processing Machine for Conductor Punching represents a fundamental shift in how electrical conductors are prepared for heavy-duty applications. By integrating punching, shearing, and bending capabilities into a single, cohesive workstation, this equipment eliminates the need for multiple isolated machines on your production floor. The operator experience is centered around an intuitive, glare-free industrial touch screen. Here, the operator will input values such as length, width, piler position, quantity and etc. to initiate automatic working procedures including ends punching, piler opening, piler punching and etc..
As the machine springs to life, the sensory feedback is immediate—the quiet, precise hum of the servo motors pairs with the steady, controlled actuation of the hydraulic cylinders. When handling raw materials, the machine's feeding mechanisms grip the heavy copper and aluminum stock with firm, non-marring precision, preventing surface scratches that could compromise electrical conductivity. The tactile feedback of the machined surfaces post-processing is exceptionally smooth, a testament to the rigid frame construction that absorbs operational vibrations. This stability ensures that the punching dies strike true every single time, leaving clean, burr-free edges ready for immediate assembly.
To accommodate diverse manufacturing requirements, this system is engineered with advanced automation and stringent quality control mechanisms:
Understanding the exact capabilities of your processing equipment is crucial for facility planning and workflow optimization. The data below outlines the specific operational thresholds, force ratings, and material compatibilities for this hydraulic system. Each parameter has been rigorously tested to ensure reliable performance under continuous, heavy-duty manufacturing conditions.
No. | Parameters | ||
Model | KD-DTYTJ-C/A-4.5(6) | ||
Force (KN) | Bend | 400 | |
Punch | 300 | ||
Piler Head | 300 | ||
Marking | Barcode, QR code (optional) | ||
Conductor Size (Aluminum, Copper) | Length | 1200mm~6000mm | |
Width | 140mm~300mm | ||
Thickness | 2mm~6mm | ||
The versatility of this processing unit makes it an indispensable asset across various sectors of the electrical manufacturing industry. It is specifically tailored for the rigorous demands of producing high and low-voltage switchgear, complex electrical distribution panels, modular substations, and heavy-duty power transformers. Because the system effortlessly handles conductor lengths ranging from 1200mm to 6000mm and thicknesses up to 6mm, facility managers can confidently schedule diverse product runs without worrying about equipment limitations.
In the context of modern substation construction, where custom busbar configurations are frequently required to route power safely, the ability to rapidly program and execute unique punch patterns provides a distinct competitive advantage. The heavy-duty hydraulic force—delivering up to 400 KN for bending and 300 KN for punching—effortlessly powers through dense materials. This produces a satisfying, deep mechanical thud during operation, rather than the straining whine often associated with underpowered machinery. This reliable power delivery translates directly into faster cycle times and a more predictable manufacturing cadence.
Before any unit is cleared for dispatch, it undergoes a comprehensive series of operational stress tests to verify its compliance with ISO9001 international quality management standards. Recognizing the physical risks associated with global shipping, we secure the entire machine within a fortified, industrial-grade plywood enclosure. This robust packaging absorbs transit vibrations and protects sensitive electronic interfaces and hydraulic lines from environmental exposure, ensuring the equipment arrives at your facility in pristine, ready-to-deploy condition.
Acquiring heavy machinery is a significant commitment, which is why the physical product is backed by an extensive support ecosystem. From initial procurement consultations that align the equipment with your specific production targets, to detailed technical guidance during the commissioning phase, our infrastructure is designed to empower your workforce. Furthermore, a rapid-response global maintenance program stands ready to provide diagnostic assistance and replacement components, safeguarding your production schedules against unexpected downtime and extending the functional lifespan of your investment.
