Engineered for heavy-duty electrical fabrication, this CNC multi-function busbar processing machine delivers exceptional accuracy in punching, shearing, and bending operations. Designed specifically to handle conductive materials such as copper and aluminum busbars, the equipment accommodates substantial thickness and width ranges required in modern power distribution setups. By integrating three essential fabrication steps into a single workstation, facility managers can significantly reduce floor space requirements and material handling time. The machine operates with a distinct focus on material integrity, ensuring that every cut and punch maintains the electrical conductivity and structural strength of the metal. Whether you are outfitting a new production line or upgrading legacy equipment, this unit provides the consistent output necessary to meet strict project deadlines while maintaining absolute precision across large batch runs.
Engineered Features & Technical Advantages:

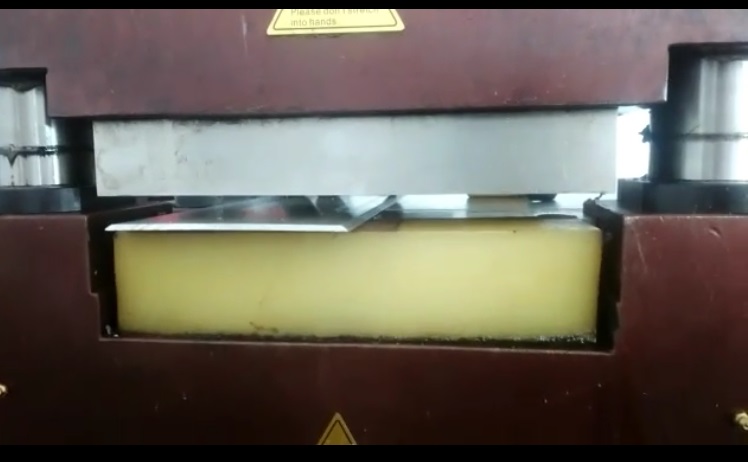

1) Double-column shearing structure, no scraps and shear droops: The advanced shearing mechanism utilizes a dual-column design that applies even, substantial pressure across the entire width of the copper or aluminum busbar. This specific configuration guarantees a clean, flat cut with absolutely no material waste or edge deformation. Operators achieve a perfectly square edge ready for immediate assembly, eliminating the need for secondary filing or grinding processes, which saves significant labor hours and preserves the material's conductive properties.

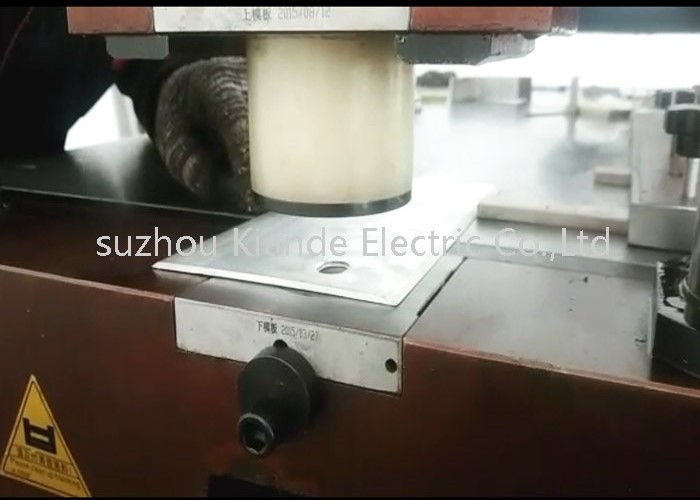

2) Workstation of punching adopts single-arm type integral structure: By utilizing a single-arm cast framework, the punching unit maintains strict vertical alignment even under maximum hydraulic load. This structural rigidity ensures that punch and die clearances remain absolute, resulting in precise, burr-free holes every single time. The open-throat design also provides operators with clear visibility and ample physical clearance for positioning oversized or uniquely shaped busbars without obstruction.
3) PLC control: At the heart of the machine's automation is a highly stable Programmable Logic Controller (PLC). This intelligent control system simplifies complex processing sequences into straightforward digital commands. Operators can quickly input dimensions, set processing parameters, and execute repetitive tasks with minimal manual intervention. The intuitive interface reduces the learning curve for new technicians while ensuring consistent batch-to-batch accuracy, significantly lowering the risk of human error during complex fabrication runs.
4) Hydraulic rubber hose adopts nationalstandard A type connection mode: Fluid power reliability is secured through the implementation of national standard A-type connections on all hydraulic rubber hoses. This precise threading and sealing standard prevents fluid leaks under extreme pressure spikes, ensuring a clean working environment and consistent force delivery to the shearing and punching cylinders. The premium hydraulic components are selected for their wear resistance, contributing to a longer overall equipment lifespan and drastically reducing unexpected maintenance downtime.
Visual Reference & Operational Details
The following visuals demonstrate the robust build quality and the specific processing stations of the equipment. Notice the heavy-duty framing and the organized layout of the hydraulic systems designed specifically for demanding industrial environments.
This versatile processing equipment is an indispensable asset for manufacturers operating in the electrical power sector. It is specifically engineered to support the fabrication of high and low-voltage switchgears, electrical transformers, power distribution cabinets, and comprehensive switchboard assemblies. By delivering precise copper and aluminum components, the machine ensures optimal electrical connections, reducing resistance and the risk of thermal failure in critical power grids. The ability to process thick and wide conductive materials makes it highly suitable for both standard commercial installations and heavy industrial power plants.
To guarantee performance reliability across international markets, every unit undergoes rigorous quality control protocols. The manufacturing process aligns with strict ISO quality management systems and holds CE certification, reflecting compliance with global safety and operational standards. Before leaving the facility, each machine is subjected to comprehensive load testing, hydraulic pressure checks, and precision calibration. This exhaustive testing ensures the equipment performs flawlessly upon arrival at your production floor, providing immediate value and operational stability.
Protecting your heavy machinery investment during transit is a top priority. Each machine is meticulously secured, coated with anti-rust protective films, and encased in heavy-duty, fumigated wooden crates designed to withstand the physical rigors and moisture of international sea freight. We adhere to standard, predictable lead times, coordinating closely with logistics partners to ensure your equipment is delivered securely and exactly on schedule, ready for immediate integration into your fabrication workflow.
