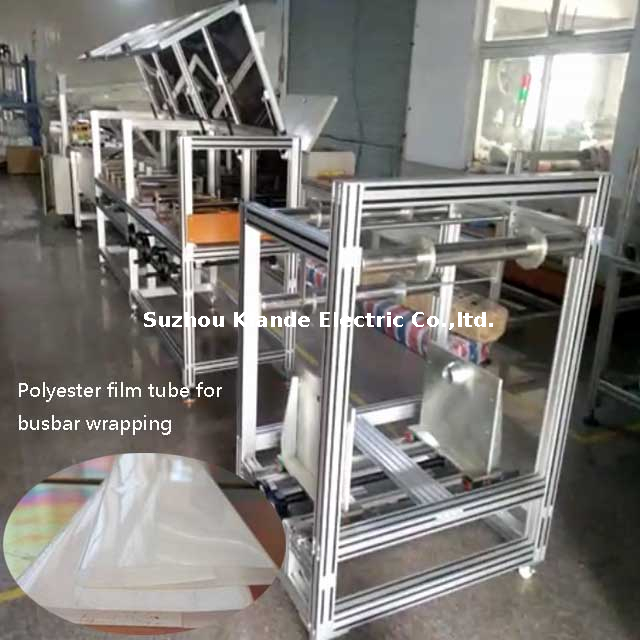

Automatic Hydraulic Mylar Film Forming Machine for Bending The Insolator Polyester . Designed specifically for the rigorous demands of electrical distribution manufacturing, this equipment redefines how insulation layers are prepared and applied. By automating the folding and shaping of PET materials, the system provides a reliable, repeatable method for encasing conductive bars. The distinct hum of the hydraulic press and the precise, controlled application of heat work in unison to soften the rigid film just enough to bend it perfectly without causing thermal degradation. This eliminates the manual inconsistencies that often plague electrical insulation wrapping, ensuring every piece meets strict dimensional tolerances required for compact electrical pathways.
Transitioning from traditional manual folding to an automated thermal approach fundamentally changes the structural integrity of the final product. The machine operates with a rhythmic precision, pulling raw material from wide rolls and guiding it through a series of digitally monitored tension zones before it reaches the primary shaping module.
Crucially, after formed in round corner tube, the wrapping is more suitable and have good performance of insolation. This is achieved through an advanced thermoforming technique that carefully molds the Mylar or PET film around a customized die. Unlike traditional mechanical cold bending, which often forces the material into sharp, brittle angles, this thermal shaping creates a smooth, continuous round corner. If you run a hand along the finished edge, you will feel a glass-like, flawless transition rather than a sharp crease. This absence of micro-cracks and stress fractures dramatically increases the dielectric strength of the insulation sleeve. By entirely eliminating these microscopic vulnerabilities, the resulting dielectric barrier prevents electrical arcing and ensures a completely void-free fit when applied to copper or aluminum conductors in dense electrical systems.
At the heart of this system is a fully automated workflow designed to maximize output while minimizing manual intervention. A single operator can easily monitor and manage multiple machines simultaneously, significantly reducing facility labor requirements. The equipment handles the entire cycle—from automated material feeding and thermal heating to precise cutting and final discharging—without breaking rhythm.
Handling delicate insulation films requires exact tension and temperature management. This machine is engineered to perfectly accommodate Mylar and PET insulation films ranging from 0.10mm to 0.35mm in thickness. It supports wide-format processing, utilizing a dynamic tension control system that constantly adjusts the pulling force. This prevents the thin films from stretching, warping, or tearing during the rapid feeding cycle.
Operators interact with the machine through a highly responsive, digitized touchscreen panel. This interface allows for granular adjustments to thermal calibration, laser cutting lengths, and punching parameters. The visual feedback on the screen simplifies the setup process, enabling rapid changeovers between different production runs. The low barrier to entry means new technicians can achieve uninterrupted, continuous production with minimal training.
The resulting insulation sleeves are specifically tailored for integration into compact busbar and sandwich busway systems. In these dense electrical distribution networks, space is at a premium, and any air gaps between the conductor and the insulation can lead to dangerous corona discharges or thermal buildup. By providing a tightly wrapped, perfectly contoured protective layer, this machine ensures a void-free insulation solution that meets the strictest safety standards for commercial and industrial power distribution.
| Configuration Options | Available in standard single-channel setups for specialized runs, or ultra-efficient dual-channel configurations for maximum throughput. |
| Customization Services | Full support for non-standard digital customization, including proprietary mold designs tailored to unique conductor dimensions and complex profiles. |
Investing in heavy industrial machinery requires a guarantee of long-term operational stability. This hydraulic forming equipment is constructed from industrial-grade steel and engineered specifically for high-intensity, round-the-clock continuous operation in demanding manufacturing environments. The physical build feels solid, absorbing the kinetic vibrations of the hydraulic presses to maintain absolute precision over millions of cycles.
To maximize your return on investment, the smart control panel includes a built-in preventive maintenance warning system. It actively monitors hydraulic fluid levels, heating element degradation, and mechanical wear, alerting operators well before a component failure can cause unplanned downtime. Furthermore, prior to leaving the manufacturing facility, every unit undergoes rigorous high-voltage simulation testing to verify that the insulation products it produces will perform reliably under extreme electrical loads. This comprehensive approach to reliability ensures that the machine remains a cornerstone of your production line for years to come.
