220v Digital Busbar Mylar Film Slitting Machine with Touch Screen

220V Digital Busbar Mylar Film Slitting Machine with Touch Screen

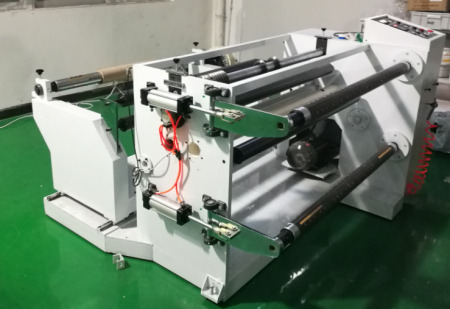

Achieving precise insulation wrapping is a critical and unforgiving step in modern busbar manufacturing. The 220V Digital Busbar Mylar Film Slitting Machine is meticulously engineered to deliver exact dimensional accuracy for electrical insulation materials, directly addressing the common industry challenge of inconsistent film widths that can compromise electrical safety. By replacing outdated manual measurement techniques with a highly responsive, digitized touch screen interface, operators gain the ability to input specific length and width parameters instantly. This direct digital input method completely eliminates calculation errors and ensures that every single roll of Mylar film is prepared to exact specifications. Consequently, facilities experience a drastic reduction in material waste and a much smoother, predictable preparation phase prior to final busbar assembly. The length and width can be set dynamically according to customer's requirement, allowing for rapid changeovers between different production batches without mechanical recalibration.

Intelligent Control and Precision Engineering

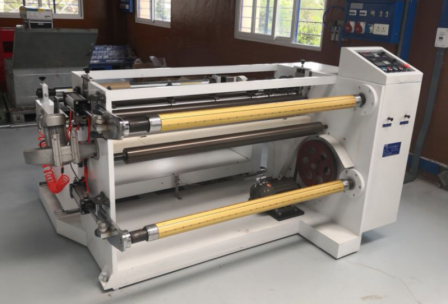

At the heart of this equipment lies an industrial-grade PLC control system paired with a highly sensitive, micro-level tension management mechanism. When processing delicate insulation films, maintaining a perfectly consistent tension is absolutely vital to prevent material stretching, warping, or micro-tears during the unrolling phase. The machine utilizes customized, hardened alloy steel cutting blades that slice through the substrate with minimal resistance. This results in perfectly flat, burr-free margins—a clean cut that is essential for maintaining the dielectric strength and overall safety of the final busbar trunking system. The physical tactile feedback of the control panel, combined with the quiet, steady hum of the heavy-duty drive motor, reflects its robust construction. It is specifically designed to withstand the rigorous demands of continuous, 24-hour production cycles in demanding factory environments without suffering from thermal fatigue.

Core Operational Advantages and Material Compatibility

Beyond standard Mylar, the robust feeding mechanism and adjustable blade configuration allow for the highly efficient processing of various electrical insulation materials, including dense PET and flexible PVC films. The ability to handle diverse substrates significantly enhances the return on investment for manufacturing facilities that produce multiple product lines. Safety is heavily prioritized in the physical architecture of the machine. It is equipped with strategically placed emergency stop buttons and transparent, impact-resistant physical safety guards. These essential features protect operators from moving parts and sharp edges without obstructing their visual monitoring of the slitting process. Furthermore, the heavy-duty structural frame effectively absorbs and minimizes operational vibration, ensuring that even when running at maximum slitting speeds, the output remains perfectly aligned and structurally sound.

   .

Equipment Data on Mylar Film Slitting Machine

Comprehensive Technical Support and Operational Reliability

Investing in heavy industrial machinery requires absolute confidence in long-term operational stability and reliable output. To ensure that your manufacturing facility experiences zero unnecessary downtime, this specialized slitting equipment is backed by an extensive and deeply integrated technical support framework. Upon arrival at your factory floor, the machine is supported by detailed, step-by-step installation guidance and comprehensive video training modules designed specifically for your floor operators. These intuitive visual resources dramatically shorten the learning curve, allowing your production team to master the digitized PLC controls, fine-tune the tension adjustments, and execute blade changes safely within hours rather than days.

Furthermore, the internal mechanical and electrical components—ranging from the powerful 3kW drive motor to the pneumatic cylinders operating at a steady 0.6MPa air source—are deliberately sourced for their proven durability in harsh, continuous manufacturing environments. They resist common factory floor challenges such as airborne dust and ambient temperature fluctuations. Should any routine maintenance be required, a highly responsive global supply network ensures that essential replacement parts, such as specialized alloy blades or electronic sensor units, are dispatched swiftly. This unwavering commitment to ongoing service completely eliminates operational anxieties, ensuring that your production line consistently maintains its output targets and continues to deliver flawlessly insulated busbar components year after year.

Key Value Deliverables for Production Facilities

• Consistent Output Quality: The integrated meter counter and digital length control guarantee that every single batch of insulation film meets exact dimensional tolerances, actively preventing costly assembly delays downstream.
• Enhanced Operator Safety and Ergonomics: Fully enclosed cutting zones and intuitive touch controls significantly reduce physical strain and protect floor workers from mechanical hazards during operation.
• Broad Material Versatility: Capable of smoothly handling heavy raw material rolls up to 1200mm in width and 700mm in diameter, seamlessly accommodating everything from standard Mylar to specialized composite films.
• Streamlined Maintenance Protocols: The simplified mechanical layout and wear-resistant contact surfaces mean fewer manual interventions, less downtime, and substantially lower ongoing maintenance expenditures for the facility.
