Engineered for precision and continuous operation, the 220V digital busbar Mylar film slitting machine fundamentally transforms how electrical insulation components are prepared on the factory floor. Rather than relying on manual measurements and inconsistent hand-cutting techniques, this equipment introduces a fully automated approach to sizing and shaping polyester films. The length and width can be set exactly according to specific operational requirements, allowing operators to transition effortlessly between different insulation specifications without extended downtime. By integrating a highly responsive touch screen interface, the setup process becomes intuitive, significantly reducing the learning curve for floor technicians. The machine's physical construction features industrial-grade metallic components that emit a reassuring, low-decibel hum during operation, indicating stable torque and minimal vibration. Every single cut produces a clean, crisp edge on the Mylar film, ensuring that the subsequent wrapping or bending phases proceed without material snags or uneven overlaps. This system is designed specifically for production facilities aiming to scale their output while maintaining strict dimensional tolerances for high-voltage insulation safety.
.
No. | Parameters |
Model | KD-FQJ-1300 |
Max. Width of Raw Materials | 1200mm |
Max. Diameter of Raw Materials | 700mm |
Slitting Width | 50mm-1200mm |
Scroll Diameter | 3 inches |
Slitting Speed | 0-300m/min |
Length Control | Meter counter |
Power | 220V~415VAC 50~60Hz 3kW |
Air Source | 0.6MPa |
Equipment Dimension | L1600mm*W1800mm*H1500mm |

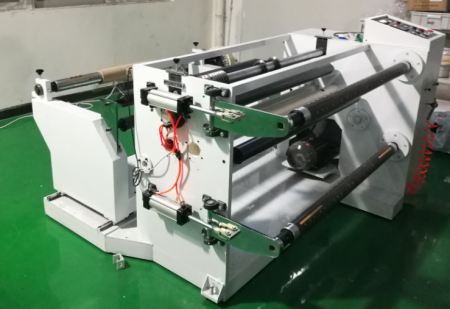

Transitioning to a fully automated slitting and bending workflow drastically reduces the need for manual intervention, directly lowering associated labor overhead. By maintaining a consistent, programmable slitting speed of up to 300 meters per minute, the equipment significantly elevates the daily processing capacity for copper and aluminum busbars. Operators standing near the unit can hear the precise, rhythmic engagement of the cutting blades against the polyester film, a clear auditory testament to the machine's reliable mechanical synchronization. This continuous, uninterrupted operation ensures that production targets are met without the typical bottlenecks caused by manual measuring and cutting, allowing personnel to focus on higher-level quality assurance tasks.

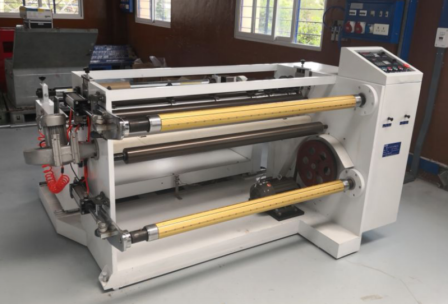

Equipped with an advanced intelligent touch screen and a built-in data logging module, this slitting system offers comprehensive real-time monitoring of every single production cycle. Facility managers can easily trace output metrics, analyze yield rates, and adjust the meter counter with absolute precision directly from the central control panel. The tactile feedback of the digital interface ensures that every parameter modification is registered instantly, completely eliminating guesswork from the daily operation. By maintaining a strict digital record of the process, engineering teams can identify efficiency trends, isolate material waste, and optimize their overall material usage over extended production periods.
The modular architecture of the system is specifically engineered to support rapid changeovers on the factory floor, offering distinct advantages for varied production runs:
Achieving flawless electrical insulation is absolutely critical for maintaining high-voltage safety standards. The system ensures this through multiple mechanical control layers:
Modern production environments demand interconnected machinery that communicates effectively across the entire workflow. This slitting unit is designed to interface smoothly with existing busbar bending machines, automated welding stations, and intelligent material handling systems already active in the facility. By linking these critical processes, plant operators can establish a closed-loop, smart manufacturing floor where materials flow logically from raw spools to finished, fully insulated conductors. This integration minimizes material handling times and reduces the risk of transit-related damage between different workstations, ultimately accelerating the overall production cycle. Furthermore, standardizing the Mylar preparation phase ensures that downstream automated wrapping stations receive consistently sized materials, preventing mechanical jams and maintaining a steady output rhythm.
Beyond the immediate operational upgrades, the equipment is backed by end-to-end engineering support designed to maximize uptime and operational longevity. From initial floor layout planning and custom equipment configuration to on-site commissioning and long-term component supply, every aspect of the machine's lifecycle is carefully managed. Technicians receive thorough guidance on maintaining the pneumatic air source at the optimal 0.6MPa and servicing the 3kW power drive to prevent unexpected wear. This comprehensive backing ensures that the slitting machine remains a reliable, heavy-duty asset, maintaining its structural integrity and cutting precision over years of rigorous daily use. Facilities can rely on continuous access to replacement blades and mechanical parts, securing their investment for the long term.
