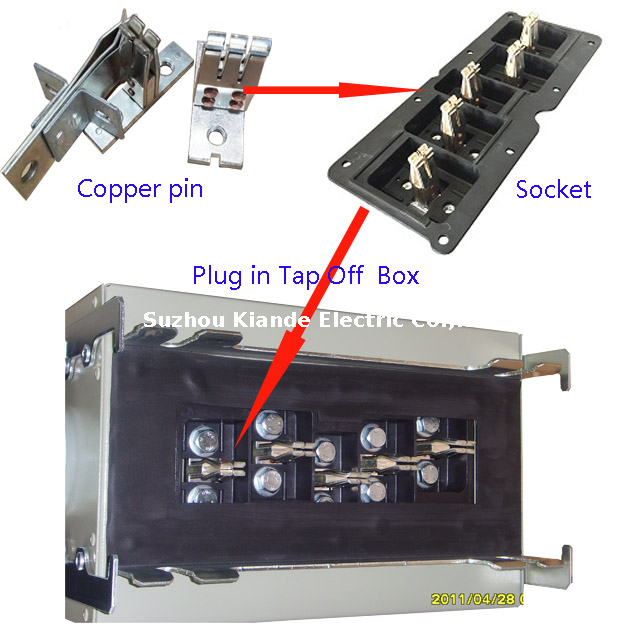

This specialized socket for compact busduct plug-in tap-off cover installation serves as the critical junction point within modern electrical distribution networks. Designed specifically for direct integration onto busway systems, this unit facilitates the safe and highly efficient collection of electric power from the main busbar trunking system, accurately distributing it to various outgoing feeders. Engineered with a highly compact conductive contact surface, the socket significantly reduces contact resistance and line voltage drop, ensuring stable, low-loss power transmission even under heavy current loads. The physical construction feels exceptionally rigid, featuring precise molding that allows for a secure, tight fit against the busway housing. This minimizes vibration noise during operation and prevents long-term mechanical loosening. When installed, the unit emits no audible hum, a testament to the tight tolerances achieved during the manufacturing process. The smooth, matte finish of the exterior not only provides a professional appearance but also resists the accumulation of industrial dust and airborne particulates, which is crucial for maintaining optimal dielectric strength over years of continuous service. Furthermore, the space-saving architecture of this tap-off cover socket supports flexible scalability. Facility managers can easily add or remove plug-in units based on terminal load variations, accommodating dynamic capacity expansions required in fast-paced operational environments without requiring extensive spatial reconfigurations.
Understanding the precise technical parameters of your power distribution components is essential for ensuring system compatibility and long-term operational reliability. The following data details the exact specifications for our compact busbar sockets, highlighting the premium materials and dimensional standards applied during manufacturing. Procurement specialists and electrical engineers must carefully evaluate these parameters to ensure they align with the specific load requirements and environmental conditions of their respective projects. The PA66 nylon specified in the material column is not merely a standard plastic; it is an engineering-grade polymer specifically chosen for its exceptional resistance to chemical degradation and mechanical wear. By adhering strictly to the 5/6mm and 3/4mm application dimensions, we ensure that every socket delivers a consistent, predictable clamping force on the busbar. This precise engineering eliminates the micro-movements that often lead to premature wear in lesser components, guaranteeing a flawless mechanical interface that prevents electrical arcing or dust ingress. Please review the specific model designations and material compositions below to match your exact infrastructure requirements.
Model | Material | Application | Type | Remark |
KD-05/15 | (Nylon) PA66 | 5/6mm | Compact busbar | |
KD-03/13 | (Nylon) PA66 | 3/4mm | Compact busbar |
The exterior housing of the socket is constructed from premium PA66 nylon, a high-strength, flame-retardant insulating material selected for its superior aging resistance and structural stability. When handling the unit, you will notice the dense, rigid texture of the casing, which is engineered with an optimized heat dissipation structure to manage thermal loads effectively during continuous operation. Safety remains the foremost priority in the design of this busduct component. It features a high-level IP protection rating, effectively sealing out dust and moisture, alongside an advanced anti-shock isolation design. This configuration significantly mitigates the risk of electrical arcing, providing absolute protection for both the critical distribution network and maintenance personnel. Furthermore, the manufacturing process strictly adheres to international electrical safety standards, including IEC and UL. Each unit undergoes rigorous temperature rise and insulation testing, ensuring full compliance for acceptance in large-scale engineering projects globally.
Operational continuity is vital for modern facilities, and this tap-off cover socket is specifically engineered to minimize system downtime. The unit supports true plug-and-play functionality and modular rapid assembly. Maintenance teams will appreciate the tactile feedback—a firm, reassuring engagement—when securing the socket onto the busway, confirming a proper electrical connection without the need for complex specialized tools. The intuitive design means that technicians can perform installations or reconfigurations with minimal training, relying on the clear visual and tactile indicators built into the socket housing. Crucially, the design permits hot-swapping and node adjustments without requiring a complete power shutdown. This capability drastically reduces the risks associated with system outages and significantly lowers overall construction and maintenance costs, allowing facility operators to reconfigure power distribution layouts dynamically as their operational needs evolve.
Given its resilient construction and high-efficiency power collection capabilities, this compact busduct socket is widely deployed across critical sectors that demand absolute power continuity. Its versatile design makes it an ideal component for the following environments:
