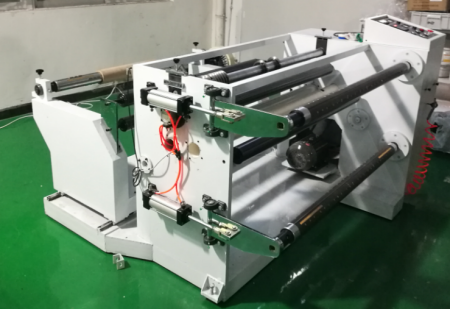

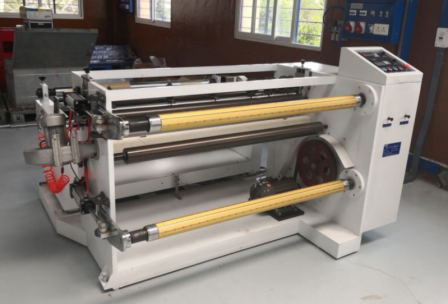

The Mylar film slitting machine is engineered specifically for the precise preparation of busbar polyester film, serving as a critical asset for electrical insulation processing. Designed with a heavy-duty three-part architecture—comprising automated feeding, precision cutting, and synchronized discharging—this equipment streamlines the entire material preparation workflow. Operators can easily configure specific length and width parameters according to exact project requirements, thanks to the intuitive semi-automatic control system and highly accurate meter counter. This intelligent control framework significantly lowers the barrier to operation, allowing even newer technicians to achieve master-level precision quickly. By integrating premium hydraulic components and wear-resistant slitting blades, the machine operates with minimal noise and exceptional stability, even during continuous, high-intensity production cycles. Furthermore, the precise dimensional control and automated rewinding mechanisms drastically reduce film waste, translating to substantial material savings and improved operational margins for manufacturing facilities.
Understanding the technical specifications of your processing equipment is vital for maintaining production efficiency and meeting stringent project deadlines. The KD-FQJ-1300 model is engineered to handle substantial material volumes with ease, accommodating raw material widths up to 1200mm and diameters up to 700mm. With an adjustable slitting width ranging from 50mm to 1200mm and a rapid processing speed of up to 300 meters per minute, this machine delivers exceptional versatility for various production runs. The integrated meter counter ensures exact length control, eliminating guesswork and reducing costly material discrepancies during large-scale operations. Powered by a reliable 3kW motor and requiring a standard 0.6MPa air source, the system is optimized for energy-efficient operation within standard industrial environments, ensuring your power consumption remains manageable while output remains high.
No. | Parameters |
Model | KD-FQJ-1300 |
Max. Width of Raw Materials | 1200mm |
Max. Diameter of Raw Materials | 700mm |
Slitting Width | 50mm-1200mm |
Scroll Diameter | 3 inches |
Slitting Speed | 0-300m/min |
Length Control | Meter counter |
Power | 220V~415VAC 50~60Hz 3kW |
Air Source | 0.6MPa |
Equipment Dimension | L1600mm*W1800mm*H1500mm |
This specialized equipment is directly applied to copper and aluminum busbar insulation wrapping processes, effortlessly meeting various width requirements for diverse wrapping applications. The hydraulic drive system guarantees a stable and uniform slitting pressure across the entire surface of the polyester film. This meticulous pressure control ensures that every cut edge remains perfectly smooth and entirely free of burrs, which is a mandatory standard for high-voltage insulation safety. The tactile feel of the finished Mylar film is crisp and clean, allowing for flawless adhesion and wrapping around conductive bars without the risk of micro-tears or electrical arcing. By maintaining such strict tolerances, manufacturers can prevent premature insulation failure and enhance the overall safety rating of their electrical assemblies.
Every component of this slitting machinery is carefully selected to enhance the overall processing experience and end-product reliability. The system's architecture focuses on delivering consistent hydraulic power and adaptable operation modes to suit varying production scales, from custom batch runs to continuous mass manufacturing.
Function / Feature | Description |
Purpose | Slitting polyester film (Mylar Film) for busbar insulation wrapping prep, ensuring precise dimensions for electrical safety |
Drive Type | Hydraulic drive, providing stable and even slitting pressure for smooth, burr-free edges |
Applicable Material | Polyester Film (Mylar), commonly used for heavy-duty electrical insulation and thermal protection |
Slitting Width | Adjustable; can be customized to match exact busbar specifications, minimizing material waste |
Operation Mode | Manual or semi-automatic; supports auto-feeding and rewinding to reduce manual labor |
Application Scenarios | Busbar trunking manufacturers, electrical equipment plants, insulation film processors, and custom fabrication shops |
Our slitting solutions have been successfully deployed across multiple demanding sectors, backed by positive feedback and verified case studies from leading engineering facilities worldwide. By addressing the specific insulation prep challenges of these fields, the equipment establishes a foundation for reliable power distribution and long-term operational success.
Reliability in industrial manufacturing begins with uncompromising quality standards and verifiable testing protocols. This Mylar film slitting machine is manufactured under strict industrial-grade quality management systems, including comprehensive ISO-aligned protocols. Before leaving the facility, each unit undergoes rigorous multi-stage operational testing under simulated heavy-load conditions. This testing guarantees mechanical safety, precise calibration, and long-term performance stability upon installation. Beyond the physical machinery, we provide end-to-end professional engineering support designed to empower your production capabilities from day one. Our dedicated technical team offers comprehensive services ranging from initial free sample processing and customized solution design to on-site equipment commissioning and global maintenance programs. This holistic approach ensures that your facility achieves maximum uptime, optimal material utilization, and a rapid return on investment, backed by a team that understands your specific manufacturing challenges.
