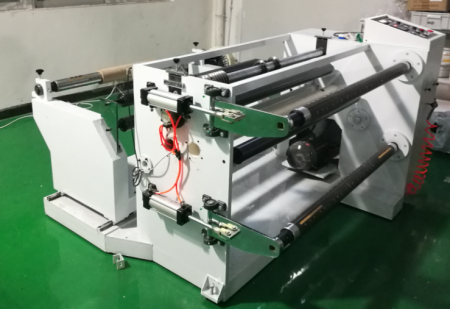

The Automatic Hydraulic Polyester Film Slitting Machine is meticulously engineered to process critical insulation materials used in demanding electrical environments. Designed specifically for busbar isolation, transformer manufacturing, and heavy-duty motor insulation, this equipment transforms raw Mylar and PET rolls into perfectly sized, ready-to-use components. The heavy industrial-grade frame provides a solid, vibration-free foundation, ensuring that even at maximum operational speeds of up to 300 meters per minute, the material flows smoothly without micro-tears or edge distortion. When you run your hand along the finished slit edges, you will feel a perfectly smooth, burr-free finish that meets the strictest electrical safety standards, preventing potential short circuits or arcing in the final electrical assemblies.
Understanding that every production line has unique requirements, this system offers exceptional flexibility for modern manufacturing facilities. The length and width parameters can be precisely configured according to specific customer requirements, accommodating a versatile slitting width range from 50mm up to a massive 1200mm. Driven by a precision-engineered hydraulic system, the machine maintains absolute tension stability throughout the entire run, eliminating the common issues of material stretching, telescoping, or uneven winding. Whether processing standard transparent polyester films, complex multi-layered composite membranes, or specialized industrial tapes, operators can rely on consistent, repeatable results. This level of precision significantly minimizes raw material waste and elevates the overall structural integrity of the final electrical components being produced.
The following table outlines the rigorous technical parameters of the KD-FQJ-1300 model. Every specification, from the 0-300m/min processing capability to the precise 0.6MPa pneumatic requirements, has been calibrated to deliver uncompromised reliability during continuous factory operation.
No. | Parameters |
Model | KD-FQJ-1300 |
Max. Width of Raw Materials | 1200mm |
Max. Diameter of Raw Materials | 700mm |
Slitting Width | 50mm-1200mm |
Scroll Diameter | 3 inches |
Slitting Speed | 0-300m/min |
Length Control | Meter counter |
Power | 220V~415VAC 50~60Hz 3kW |
Air Source | 0.6MPa |
Equipment Dimension | L1600mm*W1800mm*H1500mm |
To minimize manual intervention and reduce the operational learning curve for floor workers, this slitting system is equipped with an intuitive control panel and a highly sensitive meter counter. Operators can input exact length specifications into the digital interface, and the machine will automatically execute the run, triggering a precise auto-stop mechanism the moment the target length is achieved. This sophisticated level of automation prevents costly material overruns and ensures absolute dimensional consistency across large-scale production batches. The interface provides real-time, easily readable feedback on slitting speed and web tension, empowering the operator to maintain optimal processing conditions without constantly adjusting manual dials or levers. Standing next to the equipment, you can hear the steady, rhythmic hum of the hydraulic drive, a clear auditory testament to its balanced, friction-reduced power delivery and mechanical harmony.
While specifically optimized as a dedicated polyester film slitting machine for busbar isolation, its mechanical capabilities extend far beyond a single material type. The precisely angled cutting blades and highly responsive tension controls allow the equipment to seamlessly process a diverse array of flexible substrates, making it a versatile asset for any electrical component manufacturing floor.
In continuous, high-volume manufacturing environments, equipment durability and operator safety are absolute necessities. The machine features a heavy-duty, industrial-grade steel chassis that anchors the entire operation, effectively neutralizing the intense kinetic energy and vibrations generated during high-speed 300m/min processing runs. This exceptional structural rigidity translates directly to cleaner cuts and a significantly longer operational lifespan for the internal mechanical components, reducing maintenance downtime. Furthermore, the system integrates a comprehensive safety framework powered by a reliable 0.6MPa pneumatic air source. Strategically placed emergency stop buttons, interlocking guards, and automated fault-detection sensors provide immediate, fail-safe shutdown capabilities, actively safeguarding both the personnel on the factory floor and the valuable raw materials currently loaded on the scroll.
Recognizing that standard machinery specifications may not perfectly align with every unique factory layout or specialized product line, extensive non-standard customization options are readily available. Whether your specific production workflow requires modifications to the maximum 700mm raw material diameter, specialized 3-inch scroll configurations, or tailored slitting width ranges, the engineering team can adapt the core mechanical architecture to match your exact operational demands. Beyond the physical machinery itself, every installation is backed by comprehensive, long-term after-sales support. This dedicated service includes full on-site installation guidance, rigorous equipment calibration, and detailed operator training programs, ensuring your technical team can maximize the machine's output potential and maintain peak efficiency from the very first day of operation.
