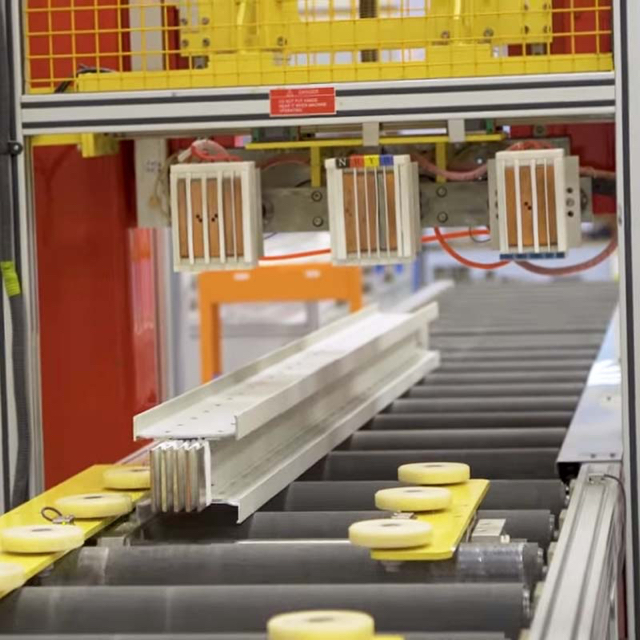

The Elbow Busbar Testing Machine for PE Testing and Hipot Inspection is a highly specialized, industrial-grade evaluation system engineered to deliver uncompromising accuracy and operational efficiency for your electrical component manufacturing line. Designed specifically to address the complex geometries of power distribution components, this equipment is perfectly suited for both straight busbars and intricate elbow busbar configurations. Ensuring that every single piece meets strict electrical insulation and grounding performance standards is critical to preventing field failures, and this machine provides that exact level of rigorous quality assurance. The fixture positioning part is operated manually, providing operators with a highly responsive, tactile adjustment experience. The heavy-duty clamping mechanisms offer a satisfying, solid resistance that confirms the component is securely locked in place, allowing for rapid and confident changeovers during mixed-specification production runs. Once the busbar is correctly positioned, the sophisticated internal inspection instruments take over the entire process. The system will test the busbar and generate the comprehensive inspection report automatically with just the push of a button. This intelligent integration of manual flexibility for irregular shapes and automated precision for electrical testing not only accelerates your overall testing cycle but also significantly reduces the physical strain on your quality control personnel.
No. | Parameters |
Model | KD-JCX/M-6 |
Busbar Height | 100~650mm |
Busbar Length | 500mm~3000mm |
Suitable Busbar Type | Irregular busbar and straight busbar |
Position Type | Unilateral |
High Voltage Withstanding test | 0~5000V |
Insulation test | 1~1000V |
Grounding test | 0~25A |
Power | 380~415VAC 50~60Hz 3kW |
Equipment Dimension | L62000mm*W800mm*H800mm |
Investing in the right inspection infrastructure is vital for maintaining a competitive edge and ensuring the absolute safety of your electrical products. This testing machine goes beyond basic parameter checking to offer a comprehensive suite of features designed to optimize your production workflow and safeguard your workforce.
The core operational value of this inspection equipment lies in its ability to execute exceptionally high-precision Hipot (High Potential) withstanding tests and PE (Protective Earth) grounding evaluations. By maintaining absolute accuracy across all voltage ranges, it guarantees that every busbar achieves 100% compliance regarding electrical insulation before it ever leaves your facility. Furthermore, the automated testing workflow completely eliminates the risk of human transcription errors. The system instantly captures performance metrics and generates exclusive, detailed detection reports.
These digital records can be directly integrated into your factory's MES (Manufacturing Execution System) or ERP networks. This connectivity enables complete, transparent data traceability throughout the product's entire lifecycle, providing you with irrefutable proof of quality during client audits or regulatory reviews.
Modern manufacturing facilities rarely produce just one type of component, which is why this machine is custom-designed for maximum physical adaptability. Whether you are processing standard straight busbars or highly irregular elbow busbars, the specialized tooling accommodates varying dimensions with ease. The manual positioning system is engineered with smooth-gliding rails and ergonomic locking handles that feel incredibly sturdy to the touch. This flexible design drastically minimizes the downtime typically associated with reconfiguring machinery for different product batches. By enabling rapid tooling changes and intuitive adjustments, the equipment significantly boosts the overall throughput of multi-specification, mixed-model production lines, ensuring your delivery schedules remain on track.
Operating electrical testing equipment at high voltages—up to 5000V—demands an uncompromising, fail-safe approach to operator security. This machine is constructed with a multi-layered safety architecture. It is fully equipped with advanced high-voltage interlocking mechanisms, highly visible and immediate emergency stop controls, and a flawless physical insulation shielding system. During operation, you can clearly hear the crisp, reassuring mechanical click of the heavy-duty safety relays engaging before any high-voltage output is authorized by the system. This auditory feedback, combined with visual warning indicators, provides operators with absolute peace of mind, allowing them to focus entirely on productivity without the constant anxiety of potential electrical hazards.
Built for the demanding realities of continuous factory use, the structural framework and core testing instruments are manufactured from premium, wear-resistant materials. The exterior features a durable, anti-corrosive industrial finish that withstands the daily rigors of a busy production floor.
To eliminate any concerns regarding operational downtime or shifting accuracy, we provide a comprehensive support ecosystem that extends far beyond the initial equipment installation. Our dedicated service package includes detailed, hands-on operational training for your technical staff, ensuring they are fully proficient in handling the machine's capabilities. Additionally, we offer scheduled accuracy calibration services for the testing instruments, ensuring your measurements remain perfectly aligned with international standards year after year. Coupled with our rapid-response technical assistance team, you can maintain optimal performance and continuous production flow without interruption.
