The packing platform is used for busbar conductor’s insulation wrapping. Platform is made of iron or aluminum alloy with main dimension of L2800mm*W600mm*H800mm. In the demanding environment of electrical power distribution manufacturing, the physical foundation upon which conductors are prepared dictates the final reliability of the system. This dedicated staging structure provides an unyielding, perfectly leveled base essential for preparing raw copper or aluminum bars before they are encased in their protective housings. When a heavy, dense metal conductor is lowered onto the staging area, the rigid metallic frame absorbs the substantial weight instantly. There is no structural groaning, no deflection, and no microscopic shifting. The cold, smooth finish of the contact surfaces ensures that the bare metal of the conductor glides into position without catching, preventing any surface abrasions that could compromise electrical integrity. By establishing this absolute physical stability, operators can focus entirely on the precision of the wrapping process rather than fighting against an unsteady workspace.
The core value of this staging unit lies in its uncompromising material construction. Fabricated from industrial-grade iron or premium aluminum alloy, the framework is specifically engineered to handle the concentrated, heavy loads characteristic of large-scale busduct production. This heavy-duty foundation offers several distinct operational advantages:
The primary function of this unit is to facilitate perfect insulation wrapping. A stable base is the single most critical physical factor in achieving flawless Mylar application. By maintaining an exact horizontal plane, the platform allows the polyester film to be tensioned and wrapped tightly around the conductor core. Operators can feel the consistent resistance as the film is pulled across the stable conductor. The resulting insulation layer is uniform, closely adhered, and completely free of surface wrinkles, creases, or trapped air pockets. This physical stability directly translates into higher pass rates during final dielectric testing. When the wrapping is uniform, the risk of partial discharge in the final electrical installation is drastically minimized. The smooth operation also means less material waste, as the Mylar film is applied correctly on the first attempt, laying flat and secure against the metal core.

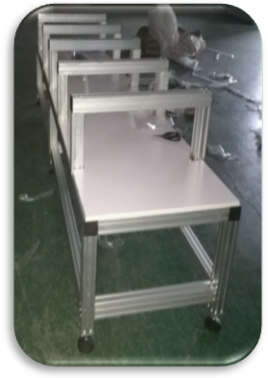

Beyond its mechanical strength, the physical dimensions of the platform are carefully calibrated for human interaction. Operating at a standardized height of 800mm, the structure aligns perfectly with established industrial ergonomic principles. This specific elevation places the conductor exactly at the natural waistline of the average assembly technician. It allows personnel to manipulate heavy metallic bars, apply tension to wrapping materials, and conduct visual quality inspections without engaging in excessive bending, stooping, or awkward overreaching. Over the course of a demanding eight or ten-hour shift, this significant reduction in physical strain minimizes muscular fatigue. It also drastically lowers the risk of manual handling injuries on the workshop floor. The tactile experience of working at the correct height allows operators to maintain steady hands and precise control, which is essential when dealing with delicate insulation films.

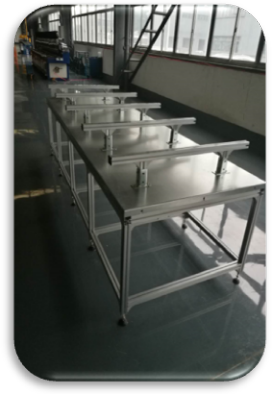

Modern busduct manufacturing is rapidly moving away from isolated workstations toward continuous, interconnected flow. This packing structure is designed to function as a vital node within a larger automated ecosystem. It connects directly with automatic polyester film forming machines and automated wrapping stations. Rather than acting as a standalone table, it serves as a reliable physical bridge. It enables smooth, uninterrupted transitions from intelligent loading and unloading storage systems directly to the final wrapping phase. This integration eliminates the bottleneck of manual transfer between incompatible machines. The physical alignment ensures that as a conductor moves from the forming machine onto this platform, it remains perfectly oriented for the next automated step, thereby maximizing the throughput and rhythmic efficiency of the entire production line.
Recognizing that every manufacturing facility operates within unique spatial constraints and specific capacity targets, the physical layout of this staging system can be tailored. The modular nature of the design allows it to fit into tight floor plans or expand to accommodate exceptionally long conductor runs. Beyond the tangible hardware, the implementation of this system is backed by comprehensive operational support. From the initial workshop layout planning—mapping out the exact footprint and material flow—to the physical installation and structural commissioning, every step is guided by deep technical expertise. Long-term maintenance guidance ensures that the structural integrity and surface conditions remain optimal. This holistic approach focuses on minimizing unexpected operational interruptions, ensuring that the platform continues to deliver precise support and maximizing the long-term value of the equipment investment.
