The Spring Support with Ball Joint is a precision-engineered suspension mechanism designed exclusively for securing heavy-duty horizontal and vertical busbar trunking systems. Crafted to manage the complex mechanical stresses inherent in modern electrical distribution networks, this support unit integrates a highly responsive ball joint and spring linkage design. Electrical busducts frequently experience microscopic shifts due to thermal expansion during peak load hours, as well as operational vibrations transferred from connected transformers and heavy machinery. Traditional rigid mounting hardware forces these stresses back into the busbar casing, leading to premature structural fatigue.
In contrast, this dynamic buffering system effectively absorbs these kinetic forces, ensuring absolute stability across complex multi-angle installations. The defining feature of this unit is the precisely machined ball joint. Unlike fixed brackets that force the busbar into rigid alignment, the ball joint allows for omnidirectional articulation. This means that if the building structure settles slightly over time, or if the busduct route requires a slight angular deviation, the support automatically compensates. The smooth, spherical articulation point prevents binding and ensures that the tension remains perfectly vertical, eliminating lateral shear forces that could damage the busbar housing.
Running a hand along the surface reveals a smooth, industrial-grade anti-corrosion coating that feels cold, dense, and unyielding. This specialized finish acts as a resilient barrier against atmospheric moisture, chemical vapors, and the harsh, fluctuating conditions typical of unfinished architectural environments. The core components, forged from high-tensile steel, guarantee long-lasting performance without degradation, safeguarding your critical power infrastructure against unpredictable structural shifting.
Engineered specifically for critical power distribution environments, this spring support mechanism provides rigorously tested Safe Working Loads (SWL) backed by an exceptional 5:1 safety factor. This conservative engineering approach ensures that even the heaviest, multi-conductor busbar trunking systems remain securely suspended under extreme operational conditions or unexpected architectural stress events. The core components are subjected to a rigorous metallurgical treatment process. The industrial-grade anti-corrosion coating is not merely painted on; it is chemically bonded to the high-tensile steel substrate. This prevents flaking or chipping during installation. When handling the components, the substantial weight of the steel conveys a sense of absolute permanence and structural integrity. Below are the precise mechanical parameters of the core assembly components, detailing the exact dimensional tolerances required for optimal system performance.

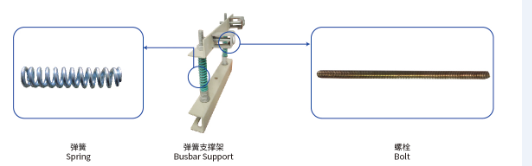

No. | Item | Specification | Parameter |
1 | Spring Support | 60*40*5mm | |
60*40*3mm | |||
2 | Spring | 17*L120 | L=120mm |
3 | Double headed bolt | M10*230mm | |
4 | Support | Vertical/flatwise |
The precisely calibrated M10*230mm double-headed bolts and the 120mm tension springs work in perfect unison to deliver consistent, measurable suspension force. The dual-thickness spring support plates—available in both 5mm and 3mm specifications—offer versatile configuration options depending on the specific weight distribution requirements of the busduct run. The springs themselves are tempered to maintain their exact modulus of elasticity over decades of continuous load, preventing the gradual sagging often seen in inferior suspension setups.
To fully address the rigorous demands of large-scale commercial and industrial electrical installations, this spring support system is optimized for both rapid on-site deployment and uncompromising long-term reliability.
Utilizing an intelligent pre-assembled design and a tool-free rapid adjustment mechanism, this support system eliminates the need for traditional on-site cutting, grinding, and hazardous hot work. Installation crews can swiftly secure the busbar trunking, drastically shortening project timelines and reducing manual labor expenses. The intuitive threading and locking process provides immediate tactile feedback—a satisfying, solid engagement that ensures each connection is securely fastened with minimal physical exertion. This streamlined workflow is particularly valuable in tight ceiling plenums or elevated vertical shafts where maneuverability is severely restricted.
The physical footprint of suspension hardware is often an overlooked aspect of large-scale electrical projects. By utilizing a compact, lightweight kit packaging strategy, this system revolutionizes material handling. The nested components take up a fraction of the space required by traditional strut channels and threaded rod bundles. This density allows for highly efficient palletization, significantly reducing shipping costs and minimizing the required staging area on crowded construction sites. Workers can easily carry multiple complete support kits to elevated work platforms, eliminating the need for constant trips to the material hoist.
Whether deployed in exposed architectural layouts or concealed utility spaces, this suspension unit offers universal compatibility. The adaptable mounting brackets seamlessly interface with various building substrates, including reinforced concrete ceilings, structural steel beams, and engineered timber frameworks.
Beyond the physical hardware, we deliver comprehensive, customized engineering services tailored to your specific facility requirements. From the initial project phase involving detailed blueprint refinement and precise load-bearing calculations, to on-site installation guidance and final inspection support, our technical expertise ensures that every busbar network is suspended with absolute precision. This full-lifecycle support guarantees structural compliance and provides facility operators with total confidence in their electrical infrastructure.
