The automatic joint connection bar processing center is a machine with unmanned operation. Operator only needs to set the related data on the touch screen such as current ratings, quantity, hole distance, raw material length and etc. and strip conductors will be processed automatically. This will save labor cost and win stable and good quality. As connection bar type is different in the joint, machine can be customized according to the requirement to proceed hole punching, counter bore, cutting and etc..
The Joint Connection Bar Processing Center is intended for busway connector fabrication. The original description covers automatic processing of strip conductors after the operator enters the production data. Current content lists punching, bending and forming, with PLC and HMI control. Its table and narrative give different conductor capacities, so the quotation must identify a model and capacity set that match the required joint drawing. |  Official Kiande Electric product image |
The current table lists up to 300mm width and 15mm thickness, while the narrative describes 100mm–140mm and 2mm–4.5mm. The narrative identifies KD-LJP-3; the table caption uses a generic page identifier. Quoted model and capacities require reconciliation.
| Parameter | Specification |
|---|---|
| Published Model / Identifier | Body identifier: KD-Joint-Connection-Bar-Processing-Center; narrative: KD-LJP-3 |
| Function | Joint bar punching, bending, forming |
| Busbar Width Range | up to 300mm |
| Busbar Thickness Range | up to 15mm |
| Working Stroke | Configurable |
| Hydraulic Pressure | Configurable |
| Control System | PLC + HMI |
| Power Supply | 380~415VAC 50~60Hz |
| Application | Busway joint connector fabrication |
| Automation Grade | Semi-automatic / automatic |
Joint Connector FocusThe listed application is busway joint connector fabrication. | Integrated OperationsPunching, bending and forming are named in the current specification table. | Production Data EntryThe original description includes current rating, quantity, hole distance and raw-material length inputs. |
PLC and HMIThe current table identifies a PLC control system with an HMI. | Configurable StrokeWorking stroke is listed as configurable rather than given one fixed value. | Automation ChoicesSemi-automatic and automatic arrangements are both listed in the current table. |
FunctionsJoint Connector Focus — The listed application is busway joint connector fabrication. Integrated Operations — Punching, bending and forming are named in the current specification table. Production Data Entry — The original description includes current rating, quantity, hole distance and raw-material length inputs. | Working Principle
|
Busway Joint ConnectorsProcessing conductive connection bars for busway joints. | Strip Conductor FabricationDrawing-based preparation of the strip conductors described in the original page. | Busbar Joint ProductionRepeat production of the required joint-bar shape and hole pattern. |
Define hole locations and whether counterboring is needed, as discussed in the original description.
Separate bending, forming, shearing and cutting tasks in the quotation.
Confirm copper or aluminum strip dimensions for one identified model.
Recommended acceptance checks for joint connection bar processing center:
Connector Drawing MatchInspect hole spacing and the final bar shape against the approved drawing. | Capacity ReconciliationObtain written confirmation of width and thickness because the page lists conflicting ranges. | Batch Setup ReviewCheck quantity and raw-length entries before a representative processing run. |
Joint-Bar Equipment OfferingThe connection-bar center is specifically named in Kiande’s official manufacturing range. | Busbar Accessory KnowledgeThe company also lists busbar joints and joint insulation separators as supplied accessories. | Electrical Manufacturing ScopeIts stated business centers on production equipment for electricity manufacturing. |
Production inputs relate to the joint pattern rather than a generic metalworking task.
The original page describes tailoring punching, counterboring and cutting to the connection-bar requirement.
Digital end punching and conductor processing equipment are also available within the official portfolio.
Additional equipment for joint and conductor fabrication: Digital Bus Bar Punching Machine, Busbar Conductor Multifunctional Processing Machine, Automatic Busbar Assembly Line.
Busway connector manufacturing
Busbar joint fabrication
Electrical component production

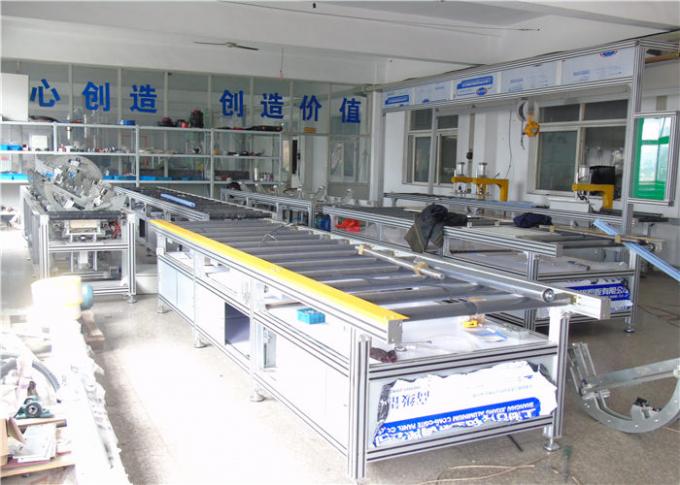

Joint connection bar processing is one of the machine types named by Suzhou Kiande Electric Co.,Ltd. The same official profile lists busbar joints and supporting accessories, together with departments for R&D, engineering design, manufacturing and after-sales service. |  Factory scene published on Kiande’s official sister website |
Provide material, thickness, joint shape and hole spacing.
Require the quoted model and tooling to use one verified capacity set.
Assess the processed bar against the matching joint components.
Kiande’s official website displays an invention patent document for busduct processing equipment. This is a company technology document. It does not establish CE conformity or current ISO certification for every product configuration. |  Company-published invention patent document |
The current table describes joint bar punching, bending and forming. The earlier KD-LJP-3 description additionally covers configurable hole punching, counterboring and cutting.
The current table says up to 300mm, while the narrative describes 100mm–140mm. These are conflicting capacities; use a model-specific written confirmation.
The current table lists up to 15mm, but the page narrative states 2mm–4.5mm. Do not treat either value as the confirmed limit without matching the quotation to the machine.
The current specification lists semi-automatic or automatic operation. Confirm which arrangement applies to KD-LJP-3 or the model selected for the order.
The KD-LJP-3 source description lists current rating, quantity, hole distance and raw-material length before automatic strip processing.
The current table specifies 380~415VAC at 50~60Hz. A 10kW figure appears in the KD-LJP-3 narrative and must be confirmed for the selected configuration.
