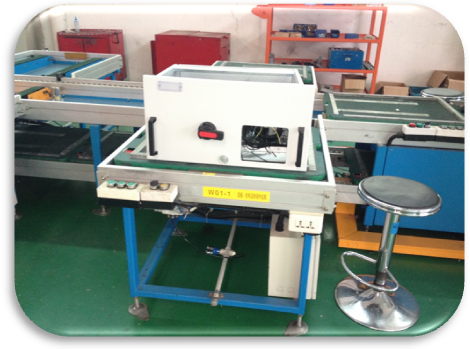

The drawer assembly process for low-voltage electrical infrastructure demands absolute precision, continuous movement, and reliable handling of heavy metallic components. To meet these rigorous industrial demands, the drawer of LV switchgear cabinet is mainly designed by free flow conveyor technology. It carries out the streamlined operation for each drawer from the initial housing installation to the final offline dispatch. During the housing installation phase, the rigid metallic enclosures are securely mounted onto the heavy-duty work plates. The faint scent of freshly machined metal and protective anti-rust coatings accompanies these initial stages, as the line transforms traditional manual assembly into a highly automated, rhythmic workflow. By integrating optional industrial robots and RGV (Rail Guided Vehicle) carts, facility managers can significantly increase throughput while reducing physical strain on operators. The working stations are allocated according to the working hour of every working procedure, which will balance every working procedure across the entire floor. This scientific allocation ensures that complex wiring tasks receive appropriate dwell times, while faster mechanical fastening steps move swiftly, preventing any single station from becoming a production bottleneck.
Modern manufacturing environments require intelligent tracking and adaptable layouts to remain competitive. After the drawer inspection is finished, the line can be coordinated with automated storage & retrieval system (ASRS) by bar scanning to realize the warehouse management. When operators scan the barcodes affixed to each drawer unit, the system instantly logs the assembly timestamp, operator ID, and component batch numbers into the central database. This creates a transparent, auditable trail for every piece of equipment that leaves your facility.
Beyond digital tracking, the production line offers exceptional manufacturing flexibility. Whether your facility produces high, medium, or low-voltage switchgear cabinets, the system provides a highly customized solution tailored to specific dimensional requirements. The tactile, responsive smart control panels positioned at key intervals give operators immediate oversight. With a simple touch on the interface, supervisors can adjust conveyor speeds, monitor the automated ups and downs of the recycle work plates, and ensure that the entire 20-meter equipment length operates in perfect harmony.

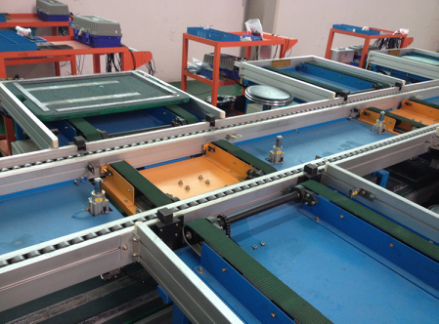

Stability during transport is crucial for sensitive electrical components. The core of this system relies on a double-layer 2.5 times speed free flow conveyor paired with an automatic ups and downs recycle working mode. This heavy-duty mechanical structure ensures that even fully loaded, weighty switchgear drawers travel with minimal vibration, protecting delicate internal wiring and copper busbars from transit damage.
No. | Parameters |
Model | KD-LCT-20-50 |
Work Station Nos | 20 sets |
Work Plate Nos | 30 pieces |
Free Flow Conveyor | Two layer 2.5 times |
Recycle Working Mode of Work Plate | Automatic ups and downs recycle |
Testing Area Dimension | L4000mm*W4000mm |
Equipment Dimension | L20000mm*W4000mm |
Investing in a dedicated flow conveyor system for switchgear drawer assembly fundamentally transforms the atmosphere of the manufacturing floor. The traditional clanking and chaotic movement associated with manual assembly are completely replaced by the rhythmic, low-decibel hum of the 2.5 times speed conveyor system. Operators experience a cleaner, highly organized environment where tools and structural components are delivered exactly when and where they are needed. By combining scientific workstation allocation with automated storage retrieval, facility managers gain absolute visibility over their inventory levels and daily production rates. This powerful synergy of mechanical stability, intelligent PLC software integration, and ergonomic design ultimately leads to higher yield rates, drastically fewer assembly defects, and a much stronger competitive edge in the demanding electrical equipment market.
