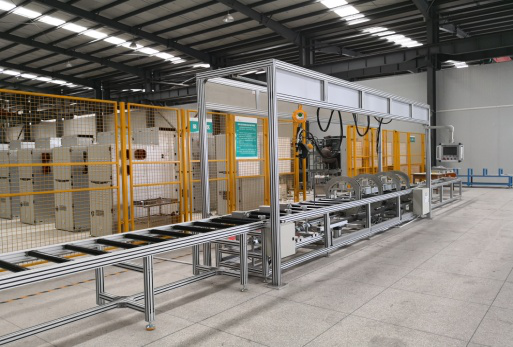

Effective Semi-automatic Busbar Assembly Line for Compact Busway Housing Assembly is used for clamp the busbar and rotating the swing table and riveted manuallly. Building upon this core functionality, this specialized machinery serves as the backbone for electrical distribution manufacturing facilities, engineered to streamline the intricate process of compact busway construction. By integrating mechanical clamping mechanisms with a smooth-rotating swing table, this equipment transforms a traditionally labor-intensive task into a highly controlled, methodical workflow. Operators experience a tangible reduction in physical strain while maintaining the tactile precision required for manual riveting. The solid steel construction provides a reassuringly rigid foundation, minimizing vibrations during the clamping phase and ensuring that every housing unit aligns with exact tolerances. Designed for continuous operational cycles, this assembly line bridges the gap between fully automated systems and manual craftsmanship, delivering a balanced solution that prioritizes both output volume and structural integrity.

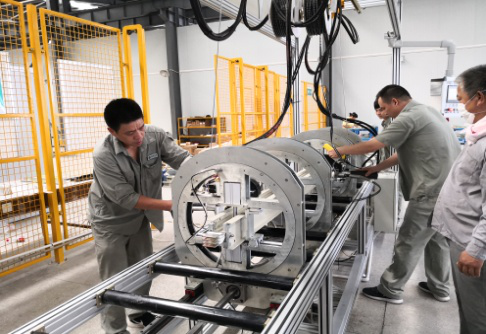

At the core of this assembly line is a meticulously calibrated clamping system that secures the busbar components with a firm, unyielding grip. When engaged, the pneumatic or hydraulic actuators produce a low, steady hum, locking the conductive bars and housing panels into perfect alignment without scratching or deforming the exterior surfaces. Once secured, the swing table mechanism allows operators to rotate the entire assembly with minimal physical effort. The rotation is fluid and balanced, gliding on heavy-duty bearings that eliminate jerky movements. This precise positioning is critical for the final stage, where the components are riveted manually. The ergonomic positioning ensures that technicians can apply the exact amount of force needed for each rivet, feeling the solid mechanical connection as the fasteners lock the housing into place. This methodical sequence drastically reduces the cycle time per unit while virtually eliminating alignment errors that can occur in purely manual setups.

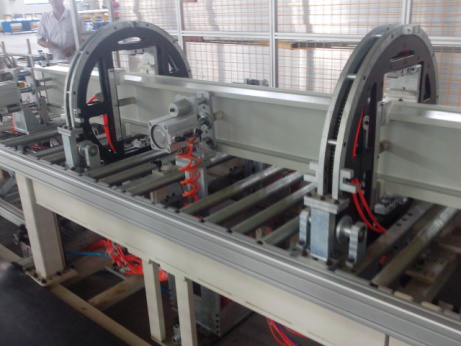

The physical presence of the assembly line speaks to its industrial endurance. The main framework is constructed from heavy-gauge industrial steel, coated with a thick, anti-corrosion industrial finish that feels slightly textured to the touch and resists the daily wear of metal-on-metal processing. This substantial mass anchors the machine to the factory floor, absorbing the kinetic energy generated during the clamping and rotating phases. The precision fixtures are machined from hardened alloys, designed to maintain their exact geometric tolerances even after thousands of clamping cycles. Every joint, weld, and pivot point is engineered to resist fatigue, ensuring that the assembly line remains a reliable asset through years of rigorous manufacturing schedules. The careful selection of materials not only extends the operational lifespan of the equipment but also guarantees that the delicate copper or aluminum busbars are handled with the utmost care, preventing surface abrasions or structural micro-fractures during the housing assembly process.
To meet the rigorous demands of modern electrical component manufacturing, this semi-automatic assembly line integrates multiple operational enhancements that drive productivity while safeguarding the workforce. The design philosophy centers on adaptability, safety, and long-term reliability, providing manufacturers with a versatile tool that scales with their production requirements.
By optimizing the critical transition between the clamping and rotation phases, the equipment significantly shortens the processing cycle for each individual unit. The streamlined workflow allows operators to maintain a consistent, uninterrupted rhythm throughout their shift, dramatically increasing the overall assembly output of compact busways. This measurable reduction in handling time directly translates to higher daily production capacities, enabling manufacturing facilities to fulfill large-scale, time-sensitive orders with greater predictability, speed, and resource efficiency. Furthermore, the synchronized operation minimizes bottlenecks on the factory floor, ensuring that downstream processes receive assembled housings at a steady, reliable pace.
Manufacturing environments rarely handle just one product size, and this assembly line is built with inherent flexibility. The clamping fixtures and swing table support intuitive adjustments, allowing the system to accommodate a wide spectrum of compact busway specifications and dimensions. Whether processing narrow profiles or heavy-duty wide-format housings, the machine can be reconfigured swiftly, ensuring that diverse production runs can be managed without the need for entirely separate equipment setups.
Investing in heavy machinery requires assurance beyond the hardware itself. This assembly line is backed by an end-to-end support infrastructure. From the initial site installation and precise calibration to hands-on operator training, every step is guided by experienced technicians. A reliable, long-term supply chain for replacement parts and ongoing technical consultation ensures that the equipment integrates smoothly into active production lines and continues to operate at peak performance, eliminating concerns about unexpected downtime and allowing management to focus entirely on fulfilling client orders.
