Tap-off Unit Busbar plug-in box
(Tap off box) is the normal equipment widely used for branch circuit protection. The rated current is from 16A to 630A. Each type has five shapes which guarantees to be close with the clients' requirements. Managing electrical distribution in space-constrained environments requires components that deliver both reliability and adaptability. This unit serves as the essential bridge between the main power busway and individual load circuits, ensuring that power is delivered exactly where it is needed without compromising the integrity of the overall system. Facility managers and electrical engineers rely on this component to prevent localized faults from cascading through the primary power grid, thereby safeguarding sensitive machinery and significantly reducing unplanned operational downtime.
At the heart of the power transmission capability lies the high-purity copper conductor. Each copper busbar undergoes a specialized tin-plating surface treatment, which significantly minimizes oxidation and maintains an exceptionally low contact resistance over decades of continuous operation. The exterior enclosure is formed from a single-piece metal stamping process, reinforced through precision laser welding. This construction not only provides a solid, heavy-duty feel when handled but also guarantees structural integrity against mechanical vibrations often present in demanding manufacturing environments.
When dealing with high-capacity power distribution, maintaining a stable temperature profile is non-negotiable. This tap-off unit is engineered to support a rated voltage of up to 1000V and boasts an impressive breakdown voltage resistance of 3750V. The internal architecture of this box is specifically mapped to optimize airflow and heat dissipation around the copper contacts. By keeping operating temperatures well within safe thresholds even at the peak 630A load, the unit prevents thermal degradation of the insulation materials. Furthermore, the superior Short-Circuit Current Rating (SCCR) ensures that in the event of an unexpected surge, the unit contains the fault without sustaining catastrophic damage, allowing for quick recovery of the main busbar line.
Operator safety and circuit protection are paramount in any electrical distribution network. The unit is equipped with a built-in AC23 isolation switch and a standardized fuse base. These integrated components provide precise overload and short-circuit protection, instantly isolating the branch circuit when abnormal currents are detected. Furthermore, the housing is designed to meet stringent ingress protection standards, offering IP54, IP55, or IP66 ratings depending on the specific environmental requirements. Combined with an IK10 impact resistance rating, the unit effectively prevents dust ingress, water exposure, and accidental physical impacts, significantly reducing the risk of electrical leakage or dangerous arc flashes.

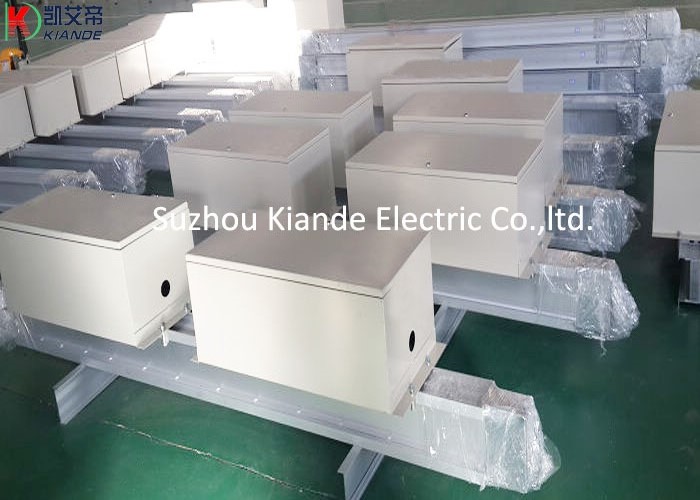

Traditional hardwired branch connections often require extensive labor, specialized tools, and prolonged facility shutdowns. This plug-in tap-off box revolutionizes the installation workflow. The mechanical locking system not only provides a satisfying, tactile click upon successful engagement but also features an anti-drop mechanism to confirm that the unit is fully seated and locked onto the compact busduct. This intuitive design drastically reduces the margin for human error during installation. Facility maintenance teams can quickly execute layout modifications, add new machinery circuits, or perform routine inspections with unparalleled speed, transforming a typically complex engineering task into a straightforward, manageable process.
Procuring electrical infrastructure components demands absolute certainty in product reliability. Our manufacturing process integrates 100% automated diagnostic testing at the end of the assembly line. Every single box is subjected to rigorous continuity checks, dielectric withstand tests, and mechanical switch actuation cycles before it is cleared for packaging. By strictly adhering to ISO9001 quality management protocols and holding active CE, RoHS, and CCC certifications, this equipment meets the exacting legal and safety requirements of international markets. Fully compliant with IEC and UL standards, it delivers consistent, compliant performance whether deployed in a European manufacturing plant or an Asian data center.
The versatility and heavy-duty construction of the copper conductor tap-off unit make it the ideal choice for complex power distribution environments where high-density routing and frequent layout adjustments are necessary.
| Industrial Automation | Provides stable, isolated power to heavy-duty control cabinets, robotics, and automated assembly lines, ensuring that localized faults do not disrupt the entire factory floor. |
| Data Centers | Enables flexible power routing to server racks. The modular plug-in design allows for rapid capacity scaling without extensive rewiring or prolonged server downtime. |
| Commercial Buildings | Ideal for high-rise office towers and shopping complexes where electrical loads frequently shift based on changing tenant requirements and spatial reconfigurations. |
| Water Treatment Plants | The high IP55/IP66 ingress protection rating ensures that the electrical components remain completely isolated from moisture, humidity, and corrosive elements typical in these facilities. |
