The hydraulic digital bus bar punching machine represents a fundamental shift in how electrical conductors are prepared for assembly. Traditionally, achieving perfect alignment required multiple steps and constant manual verification. This equipment is engineered to simultaneously punch both ends of a busbar in a single, fluid cycle. This synchronized operation guarantees absolute parallelism between the busbar profile and the conductor. Why does this specific metric matter so much? Perfect parallelism ensures a flush, reliable surface-to-surface connection at the electrical joints. When the contact area is maximized and perfectly aligned, it directly minimizes electrical contact resistance. Consequently, this heavily controls and reduces joint temperature rising during peak electrical loads, preventing thermal degradation of the connections over time.
At the heart of this equipment is an intelligent rebound coefficient compensation technology. Operators interact with a responsive, glare-free digital control interface to input the specific conductor’s material composition and exact width. Because the physical rebound coefficient naturally varies depending on the bending angle, the ambient temperature of the metal, and the specific dimensions of the copper or aluminum, this machine automatically calculates and adjusts the stroke depth. You can hear the steady, controlled hum of the hydraulic-pneumatic hybrid system as it actuates, delivering precise force. This automated adjustment ensures every punched piece meets exact tolerances without relying on manual guesswork, dramatically reducing material waste and rework.
No. | Parameters |
Model | KD-YYJ-40(50)T |
Bending Power Type | Hydraulic and pneumatic hybrid |
Pressure | 40T or 50T, Max. 80T |
Die | Fast die change |
Workplace Size | L450mm*W340mm |
Control Mode | Digital control |
Air Source | 0.6MPa |
Power | 220~230VAC 50~60Hz 80W |
Equipment Dimension | L680mm* W580mm* H2600mm |

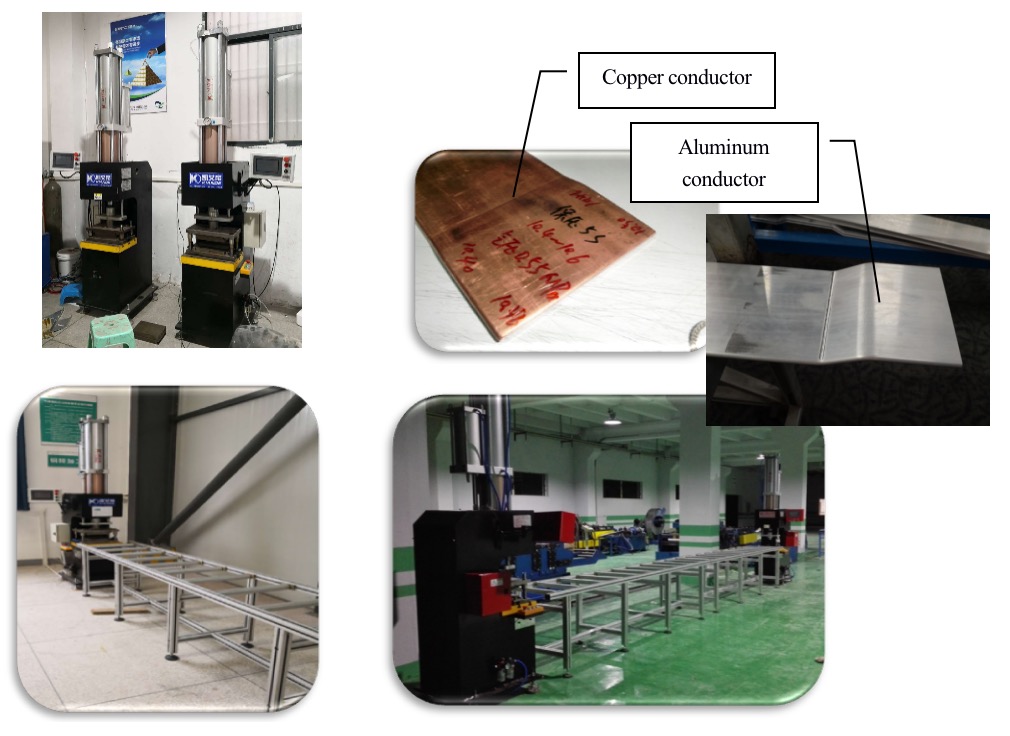

Transitioning between different product specifications is often a major bottleneck in fast-paced electrical manufacturing facilities. This equipment directly addresses that challenge through a sophisticated fast die change design, which works in tandem with a heavy-duty hydraulic and pneumatic hybrid power system. The physical components are meticulously built for rigorous, continuous daily use. The wear-resistant punching dies are forged from hardened industrial steel, and the heavy-duty hydraulic cylinders are engineered to comfortably handle a maximum pressure load of up to 80T.
This heavy-duty construction ensures long-term operational stability and a remarkably low failure rate, even when processing exceptionally thick copper or aluminum profiles shift after shift. The tactile, satisfying click of the quick-release die locking mechanism provides operators with immediate physical confirmation that the tooling is securely seated and ready for action. By drastically reducing the time required for tooling changeovers, facility managers can maintain high throughput rates and improve overall batch processing efficiency, transforming a traditionally labor-intensive task into a streamlined operation.
Precision busbar fabrication is absolutely critical for the safety, longevity, and efficiency of modern power grids. This specialized punching machine is widely deployed across a diverse range of heavy electrical manufacturing sectors. It serves as an essential, foundational asset for producing high and low-voltage switchgears, intricate transformer components, heavy-duty box-type substations, and large-scale electrical distribution panels.
In these demanding environments, there is zero margin for error. By ensuring every punched hole and bent edge aligns perfectly with the corresponding mounting points, this machine helps manufacturers assemble complex power distribution units significantly faster. The resulting assemblies exhibit greater structural integrity and superior electrical performance. Whether you are outfitting a commercial building's power room or constructing components for a municipal substation, the precise tolerances achieved by this machine ensure that the final electrical infrastructure operates safely and reliably under continuous load.
Operating heavy hydraulic machinery processing thick metal components requires the most stringent safety protocols. This unit is manufactured in strict accordance with CE, ISO, and other leading international industrial manufacturing standards. It features built-in, highly responsive overload protection systems and active operator shielding mechanisms. If the sensors detect an anomaly in pressure or positioning, the system immediately halts the cycle, ensuring a secure working environment on the factory floor and preventing damage to the tooling.
Beyond the physical hardware and safety features, the entire system is backed by a comprehensive, long-term technical support framework. This commitment encompasses everything from initial on-site installation and precise calibration to hands-on operator training, ensuring your team is confident from day one. Furthermore, a dedicated rapid-response spare parts supply network and lifetime technical guidance guarantee that your production lines remain active, efficient, and profitable year after year, minimizing unexpected downtime.
