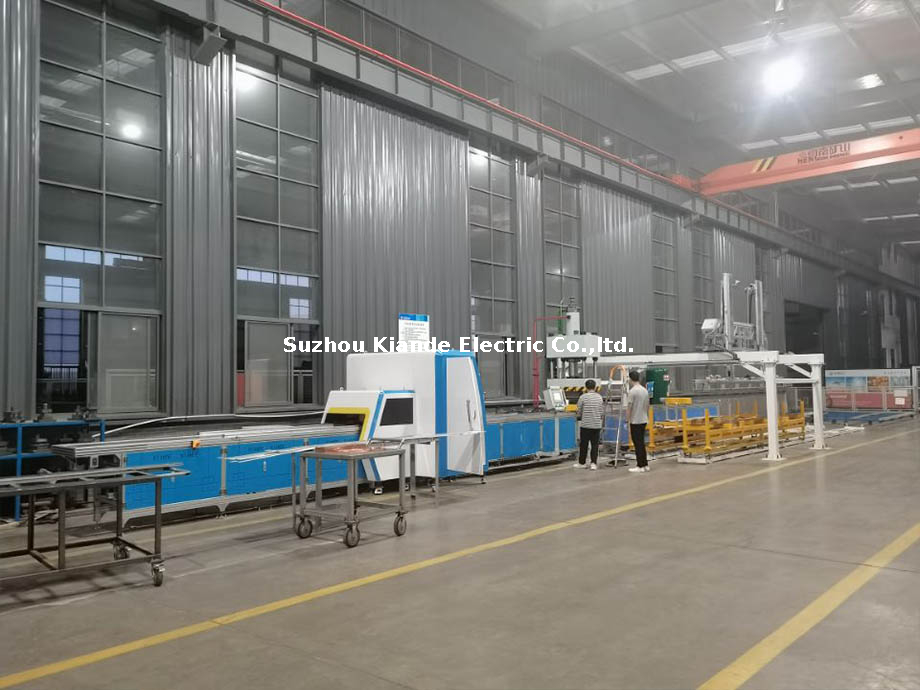

Copper and aluminum busbar fabrication demands exact tolerances. Tolerance stack-up across multiple bends and punches creates a massive headache on the production floor. Material scrap and rework quickly erode margins when fabricated parts fail to align during final switchgear assembly. Manual or semi-automated processing systems inherently struggle with consistency over long production runs. Operator fatigue, mechanical wear, and material inconsistencies degrade production quality over time, leading to unpredictable outcomes and delayed project deliveries.
Solving this variability requires evaluating the internal architecture of modern fabrication equipment. Closed-loop mechanics, software compensation, and rigid tooling must work together to eliminate variation. This integration guarantees long-term repeatability across cutting, punching, and bending operations. By removing the guesswork from the fabrication process, manufacturers ensure every component meets exact engineering specifications, cycle after cycle.
Precision vs. Repeatability: Precision is hitting a target tolerance once; repeatability is how precisely a commanded motion can be duplicated across thousands of cycles without deviation.
Mechanical Integrity is the Baseline: True accuracy relies on heavy-duty frame rigidity, servo-driven linear guides, and closed-loop encoder feedback to prevent deflection under high tonnage.
Software Drives Consistency: Advanced CNC controllers actively compensate for material springback, thermal expansion, and tool wear, removing the guesswork from automated busbar processing.
Evaluation Requires Proof: Buyers must evaluate machines based on verifiable hole-to-hole accuracy (e.g., .004”), clamping mechanisms, and predictive maintenance features rather than superficial software interfaces.
Understanding machine performance requires differentiating between theoretical precision and operational repeatability. Precision refers to the machine's resolution. It dictates the ability to move a tool to a specific programmed coordinate, such as 10.005mm. Repeatability measures consistency over time. It defines whether the machine can hit that exact 10.005mm mark ten thousand times in a row without drifting. High theoretical precision means nothing if the machine cannot duplicate that motion reliably during a high-volume production run.
The cost of inconsistency becomes immediately apparent during final assembly. Minor deviations in bending angles, stroke depth, or punching positions lead to catastrophic assembly failures in switchgears and control panels. When you run half-inch thick C11000 copper busbars for a 4000A switchgear lineup, a single-degree error on a complex Z-bend translates to millimeters of misalignment at the final connection point. This forces technicians to manually pry copper bars into place. Forcing connections induces mechanical stress on insulators and breakers, which frequently leads to premature field failures and voided warranties.
Manual processing introduces unavoidable human variables. Operators vary their material feeding speed, clamping pressure, and stroke timing based on fatigue and experience levels. Implementing automated busbar processing eliminates these variables by strictly controlling movement, stroke, and positioning along multiple axes. CNC technology replaces human estimation with exact mathematical execution, ensuring the first part matches the thousandth part perfectly.
Setting realistic expectations requires establishing strict success criteria for machine performance. Modern electrical manufacturing demands baseline tolerances of at least .004 inches for hole-to-hole accuracy. Buyers must demand physical proof of these tolerances when processing high-quality copper and aluminum busbars. Evaluating capability studies and physical test runs ensures the equipment meets the rigorous demands of modern power distribution systems.
Define the baseline mechanical tolerances required for the specific switchgear design, typically demanding hole-to-hole accuracy within .004 inches.
Establish strict material grade expectations, ensuring the copper or aluminum stock maintains consistent hardness to minimize unpredictable springback.
Verify continuous run capabilities by demanding physical capability studies from the equipment manufacturer before purchase.
Implement standardized tooling maintenance schedules to prevent dull punches from introducing micro-fractures or burrs into the conductive material.
True accuracy begins with the physical frame. Heavy-duty, stress-relieved steel frames absorb the immense shock generated by high-tonnage punching and shearing operations. When a punch strikes a 12mm thick copper bar, the opposing forces attempt to push the machine frame apart. If the frame lacks sufficient mass and rigidity, it flexes under the load. We refer to this as C-frame deflection on the shop floor.
Minimizing mechanical deflection ensures the punch and die remain perfectly aligned during continuous operation. Even a fraction of a millimeter of frame flex alters the die clearance. This misalignment causes uneven tool wear, burred edges, and out-of-tolerance holes. A rigid cast or heavily welded frame provides the stable foundation necessary for the moving components to maintain their programmed trajectories. You cannot compensate for a weak frame with good software. The mechanical baseline must remain absolute.
Engineers design these frames using finite element analysis to identify stress points. By adding heavy steel ribbing to the throat of the punching station, manufacturers prevent the upper tool from walking away from the lower die. This structural integrity guarantees that a 50-ton punching cylinder delivers force straight down, without lateral movement that ruins the hole quality.
The transition from hydraulic-only systems to servo-electric or hybrid drives changed how we handle stroke control. Traditional hydraulics struggle with exact positioning due to fluid compressibility and valve response times. Servo motors provide instantaneous torque and exact rotational control. This allows the machine to control the punch or bending tool with micrometer accuracy, stopping the stroke at the exact depth required for a perfect bend.
Precision ball screws and linear guideways translate these digital commands into exact physical positioning. Unlike traditional rack-and-pinion systems, high-quality ball screws eliminate mechanical backlash. Backlash is the slight play or lost motion between moving parts. Eliminating it ensures that when the controller commands a reverse motion, the axis responds immediately without any dead zone, preserving positional accuracy across a 20-foot stick of copper.
Heavy-duty linear guide blocks support the massive weight of the copper bars while allowing frictionless movement. These guides resist the lateral twisting forces generated during heavy shearing operations. Keeping the material perfectly flat and square to the tooling is the only way to maintain repeatable cut lengths over a long shift.
A high-performance CNC busbar machine relies on closed-loop feedback systems to verify position. Absolute encoders and optical scales continuously monitor the exact physical location of the cutting, punching, and bending axes. They send this location data back to the central controller thousands of times per second.
This real-time position verification allows the system to instantly detect and correct micro-deviations. If a heavy copper bar causes slight mechanical drag on the feeding axis, the optical scale detects the lag. The controller instantly increases servo torque to correct the position before the machine executes the cut or bend. This closed-loop architecture separates highly repeatable industrial equipment from basic open-loop alternatives that simply assume the material arrived at the correct coordinate.
Absolute encoders provide a distinct advantage over incremental encoders. If the machine loses power, an absolute encoder remembers its exact position. Operators do not need to re-home the machine and risk losing the zero-reference point, which prevents scrapped parts during power fluctuations.
The central processing unit does more than just read coordinates. It calculates optimal tool paths, acceleration curves, and deceleration profiles. Rapid, uncontrolled movements cause heavy copper bars to slip inside the clamping mechanisms due to inertia. Controlled acceleration prevents material slippage, ensuring the bar arrives at the exact punching coordinate without overshooting the target.
Integration with CAD/CAM software allows for the seamless translation of 3D models into exact machine code. This eliminates manual data entry errors on the shop floor. Engineers design the busbar in their software, and the post-processor generates the exact G-code required for fabrication. The controller reads this code and maps out the most efficient sequence of punches and bends to minimize material handling.
Programmable controls and saved part recipes maximize operational efficiency. Operators input specific instructions, material parameters, and tool selections once. The controller saves this recipe. Months later, operators recall the exact recipe for perfectly repeatable batch runs, eliminating setup variations between different shifts or operators. This digital library is the backbone of high-mix, low-volume production environments.
Bending copper and aluminum presents a unique physical challenge: material yield strength variability. Different batches of copper, even from the same supplier, exhibit slight variations in hardness and tensile strength. When a bending tool forms a 90-degree angle, the material naturally springs back slightly once the pressure is released. A hard batch of copper springs back more than a soft batch.
Modern CNC systems use integrated sensors and algorithms to counter this phenomenon. Angle encoders measure the real-time resistance of the material during the bending stroke. The algorithm calculates the exact amount of over-bend required to compensate for that specific bar's springback. This ensures repeatable angles regardless of minor material inconsistencies across different batches.
Some advanced systems perform a physical test bend. The machine bends the material to 85 degrees, releases the pressure, measures the springback with a laser or mechanical probe, and then calculates the exact force needed to hit the final 90-degree target. This closed-loop bending process guarantees that every part fits perfectly during final assembly.
Continuous high-speed operation generates heat, particularly within hydraulic power units and tooling assemblies. As hydraulic fluid heats up, its viscosity changes. This viscosity shift subtly alters the response time of hydraulic cylinders, causing the bending punch to travel a fraction of a millimeter further than intended. Tooling also expands slightly as it absorbs heat from continuous punching friction.
Advanced digital busbar punching controllers monitor system temperatures continuously. They apply micro-adjustments to the stroke depth and positioning coordinates to counteract thermal expansion. This environmental compensation maintains strict tolerances throughout a demanding multi-shift production run, preventing the slow drift in accuracy that plagues uncompensated machines.
Facilities operating in extreme climates benefit heavily from these thermal algorithms. A machine calibrated at 60 degrees Fahrenheit in the morning will behave differently at 95 degrees in the afternoon. The software bridges this gap, ensuring the mechanical hardware performs consistently regardless of ambient shop conditions.
Maintaining exact die clearance is critical for achieving clean, burr-free holes. Die clearance is the specific gap between the outer edge of the punch and the inner edge of the die. A standard rule of thumb dictates a clearance of 8% to 10% of the material thickness for copper. Rigid punch alignment ensures this clearance remains uniform around the entire perimeter of the tool, maintaining .004” hole-to-hole accuracy.
CNC punching offers superior positional repeatability compared to traditional drilling. Manual or semi-automated drilling suffers from drill wander, where the bit slightly deflects upon contacting the hard surface of the copper. Rigid CNC punching eliminates this deflection. The punch strikes the material with absolute vertical force, guaranteeing the hole center matches the programmed coordinate exactly.
Turret or linear tool changers facilitate rapid tool swaps without introducing positional errors. These automated changers lock into place using precision-ground index pins. This mechanical locking ensures the punch center aligns perfectly with the machine's zero point every time a new tool is deployed. Operators never have to manually indicate the tool center, removing a massive source of setup error.
Securing heavy copper bars requires robust automated clamping and material positioning systems. Dual-clamp systems and automated grippers hold the material firmly against the feeding axis. This prevents lateral movement or twisting during high-speed punching and shearing operations. Non-marking clamp pads ensure the soft copper surface remains free of scratches or gouges.
Automated positioning completely eliminates human handling errors. In manual setups, operators physically push the bar against a back gauge, risking slight misalignments if they push too hard or at an angle. Automated grippers pull or push the material to the exact coordinate based on encoder feedback. This ensures absolute precision during complex, multi-step fabrications across the entire length of the busbar.
Managing the dead zone is another critical function of automated workholding. The dead zone is the area near the clamps where the punch cannot physically reach. Intelligent software calculates the clamp positions and automatically repositions the grippers mid-program to expose the dead zone, allowing full utilization of the copper bar without manual intervention.
Tool condition directly impacts processing accuracy. Dull tooling increases the required punching tonnage, causes localized material deformation, and pulls the material slightly out of position during the stroke. This degrades overall accuracy and introduces heavy burrs that require secondary deburring operations. A dull punch also creates a louder, harsher impact that sends damaging vibrations through the machine frame.
Advanced CNC systems monitor stroke force and cycle counts to track tool wear. If the required punching force exceeds a baseline threshold, the system recognizes the tool is dulling. It alerts operators to change tools before repeatability is compromised. This predictive maintenance ensures a joint bar processing center operates only with optimal tooling, safeguarding production quality.
Tracking cycle counts allows maintenance teams to schedule tool sharpening during planned downtime. Instead of waiting for a punch to fail and ruin a piece of expensive copper, the software provides a clear dashboard of tool health. This proactive approach keeps the machine running at peak accuracy and extends the lifespan of the tooling inventory.
Evaluating fabrication equipment requires mapping specific mechanical and software features directly to tangible business outcomes. Buyers must look past superficial software interfaces and examine the underlying architecture. A flashy touchscreen cannot fix a flexing frame or a slipping clamp.
| Production Metric | Manual Processing | CNC Automated Processing |
|---|---|---|
| Setup Time | High; requires manual layout, scribing, and center punching. | Low; relies on saved digital part recipes and automated tool changers. |
| Scrap Rate | Moderate to High; dependent on operator skill and fatigue levels. | Near Zero; closed-loop feedback prevents positioning errors before they occur. |
| Hole-to-Hole Accuracy | Inconsistent; prone to drill wander and manual feeding errors. | Strictly maintained at +/- .004 inches via servo-driven linear guides. |
| Bend Angle Consistency | Variable; operators must manually guess and check springback. | Exact; algorithmic compensation adjusts for material yield strength in real-time. |
Buyers must balance the conceptual trade-offs between high-speed processing and ultra-high precision. While maximum axis speed looks impressive on a specification sheet, controlled acceleration and rigid deceleration are far more critical for processing heavy copper bars without slippage. A machine that moves slightly slower but never misses a coordinate yields higher throughput than a fast machine that produces scrap.
Deploying high-precision equipment introduces specific implementation risks that must be managed. Environmental factors heavily influence machine calibration. Extreme temperature fluctuations in a facility cause thermal expansion in the machine frame and tooling. Floor vibrations from neighboring heavy machinery disrupt optical scale readings, causing the controller to chase false coordinates.
Mitigating these risks requires proper site preparation. Install vibration-damping mounts to isolate the machine from floor vibrations. Maintain a climate-controlled production environment to stabilize thermal expansion. Regular calibration checks using precision gauges ensure the machine maintains its baseline accuracy over years of heavy use.
Operator error during setup and tooling changes presents another significant risk. Installing the wrong die clearance for a specific material thickness ruins the part and damages the tool. Mitigate this by implementing standardized training protocols. Utilize error-proofing tooling designs that physically prevent incorrect die installation. Rely heavily on CNC preset libraries to minimize manual data input, ensuring the Busbar Machine operates exactly as engineered.
Repeatable accuracy in busbar fabrication requires a tightly integrated system of rigid mechanics, closed-loop feedback, and intelligent tooling. Deflection management, servo-driven positioning, and springback compensation work in unison to eliminate the variables that plague manual processing. By investing in robust internal architecture, manufacturers guarantee that every punched hole and bent angle meets strict engineering tolerances.
Buyers must demand physical test runs using their own specific material grades. Verify claims regarding long-term tolerance stability by inspecting the frame construction, encoder resolution, and clamping mechanisms.
Request detailed capability studies from vendors to verify long-term repeatability under heavy production loads.
Schedule a technical demonstration focusing specifically on algorithmic springback compensation and hole-to-hole precision using your heaviest copper stock.
Audit the vendor's tooling ecosystem to ensure quick-change capabilities and error-proof die alignment mechanisms are standard.
Evaluate the machine's predictive maintenance software for automated tool wear monitoring and hydraulic temperature compensation.
A: Industry standards for high-quality equipment typically demand a hole-to-hole accuracy of +/- 0.1mm or .004 inches. Achieving this tolerance depends heavily on the machine's frame rigidity, the resolution of its closed-loop encoders, and the exact calibration of the linear guideways.
A: Automated systems utilize angle encoders and software compensation algorithms. The machine measures the real-time resistance of the copper or aluminum during the bending stroke. The algorithm calculates the material's specific yield strength and automatically adjusts the stroke to over-bend the material, compensating exactly for the anticipated springback.
A: Precision is the machine's smallest programmable movement, indicating how accurately it can reach a specific coordinate once. Repeatability is the machine's ability to duplicate that exact commanded motion over thousands of cycles without drifting or deviating from the target coordinate.
A: Calibration frequency depends on production volume and operating environment. High-volume, multi-shift operations typically require quarterly preventative maintenance and calibration checks. Advanced machines utilize automated self-checks upon startup, but physical verification with precision gauges ensures optical scales and servo drives remain perfectly aligned.
A: Yes. Worn or dull tools cause material drag, increase mechanical deflection, and require higher punching tonnage. This pulls the material slightly out of position, degrading accuracy and creating burrs. Predictive maintenance features that monitor stroke force alert operators to change tools before accuracy drops.
