China RGV Trolley PLC Control MV Switchgear Cabinet Assembly Line

MV Switchgear Cabinet Assembly Line Overview

Transform your manufacturing floor with our automated MV switchgear cabinet assembly line, meticulously engineered to handle the complete production cycle from the initial housing framework installation to the final offline testing phase. This system replaces fragmented manual workstations with a synchronized, continuous flow. By integrating specialized heavy-duty steel fixtures and automated transport mechanisms, the assembly line establishes a steady production rhythm that minimizes operational bottlenecks. The physical layout accommodates flexible manufacturing demands, allowing facility managers to configure the setup according to specific production volumes and spatial constraints. Heavy metallic components glide smoothly across the floor via mechanized systems, reducing the physical strain on operators while maintaining strict alignment tolerances.

Each designated working station is equipped with a primary dock or a buffer dock, ensuring that components are always staged and ready for the next sequence. The inclusion of dedicated site warehouses at the line edge means that essential apparatus and fasteners are within arm's reach, eliminating unnecessary walking and searching. The precision-engineered rails ensure a vibration-free movement as metallic housings are transferred between stations, protecting sensitive internal relays and busbars from mechanical shock. This structured environment not only accelerates the assembly process but also creates a safer, more organized workspace where every mechanical action is deliberate, controlled, and highly efficient.

Intelligent Control and Ergonomic Material Flow

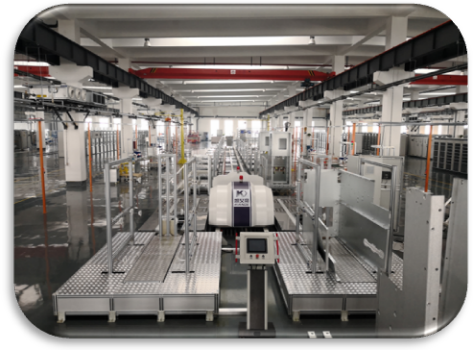

At the core of this production system is a sophisticated PLC internet connection that orchestrates every movement along the line. Operators interact with high-resolution, glare-free touch panels that display real-time diagnostic data, making it easy to monitor system status. This digital backbone supports seamless integration with factory MES and ERP systems, granting production supervisors real-time visibility into output metrics and comprehensive traceability for every assembled cabinet. Instead of relying on manual lifting, heavy and awkward components like current transformers (CT) and solid steel doors are maneuvered into place using industrial manipulators and robotic arms.

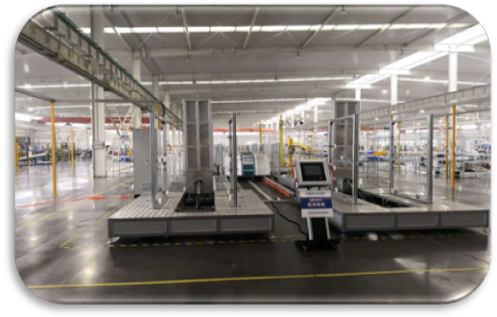

• Automated Navigation: The motor vehicle head type RGV trolley autonomously navigates the factory floor, delivering parts exactly when needed with a quiet, rhythmic mechanical hum.
• Reduced Operator Fatigue: Targeted material handling significantly lowers physical strain and drastically reduces the risk of surface scratches to the painted cabinet panels.
• Precision Locking: The reversal automatic positioning frame assembly ensures each switchgear housing is securely locked in the optimal orientation for wiring, fastening with a solid mechanical click.
• Fluid Execution: Industrial robots execute their programmed paths with synchronized motions, eliminating the erratic jolts associated with manual handling.

Rigorous Quality Assurance and Safety Testing

Before any assembled unit leaves the facility, it must pass through a dedicated, isolated testing zone. We have engineered a specialized testing area enclosed by a robust protective fence. Stepping into this zone, technicians are shielded by heavy-gauge steel barriers. Here, the distinct hum of high-voltage testing equipment confirms that each switchgear cabinet meets stringent insulation and continuity standards. This physical barrier ensures that all electrical performance evaluations are conducted in a strictly controlled environment, protecting personnel from accidental exposure to energized circuits. The automated diagnostic tools deliver crisp, immediate feedback on the control screens, leaving no room for human error in the final validation phase. Operating at a steady working efficiency of 20 sets per 8-hour shift, the system perfectly balances rapid throughput with uncompromising safety checks.

Equipment Data on MV Switchgear Cabinet Assembly Line

Comprehensive Turnkey Engineering and Facility Integration

Implementing an automated layout of this scale requires meticulous planning and execution. We provide a complete turnkey solution that extends far beyond the physical hardware. Our engineering team collaborates with facility planners to optimize the spatial arrangement, ensuring that the 20 to 50 sets of docks are positioned for maximum workflow efficiency within the L50000mm by W8000mm footprint. Our commitment to your operational success includes a detailed site audit to map out the optimal routing for the RGV trolleys. We ensure that the buffer docks and site warehouses are strategically placed to minimize forklift traffic and reduce ambient factory noise. From the initial blueprint phase to the final physical installation, every step is carefully managed to align with your specific structural constraints. We also deliver extensive operational training, familiarizing your technicians with the PLC interfaces, robotic controls, and safety protocols. By the time the final 20kW power connection is established, your personnel will be fully adept at navigating the intuitive control systems, translating advanced mechanical engineering into immediate, reliable daily production.
