Do copper busbars power your modern electrical systems? Whether you are manufacturing switchgears, transformers, or high-capacity power distribution panels, working with this highly conductive metal represents a significant financial investment. When shop floor settings are improperly calibrated for the material at hand, the result is predictable. You get expensive waste, dangerous edge burrs, and severely compromised electrical conductivity. Therefore, precise calibration based on the exact thickness of the metal is absolutely essential for any fabrication facility.
In my years working on shop floors and engineering electrical joints, I have seen exactly how copper thickness impacts bending radius, punching clearance, cutting pressure, and overall equipment settings. By mastering these parameters on your busbar machine, you ensure flawless fabrication. This mastery extends tooling lifespan and maintains the highest safety standards in your electrical connections.
Thickness dictates tonnage: Thicker copper materials require exponentially more hydraulic force for both bending and punching operations. Failing to adjust this leads to incomplete processing and stalled pumps.
Die clearance is crucial: The physical gap between the punch and the die must increase proportionally with the thickness of the metal. This prevents tool breakage and razor-sharp edge burrs.
Springback varies: Thicker busbars experience different levels of mechanical springback during bending. This requires specific over-bending adjustments in digital settings.
Cutting requires gap adjustments: A shearing station needs precise blade gap calibration based on material thickness to guarantee a clean and distortion-free cut.
Modern automation is mandatory: Investing in a digital control system automates complex thickness calculations. This drastically reduces human error and material waste during high-volume production.
Electrical-grade copper serves as the industry standard for power distribution due to its exceptional electrical conductivity and thermal properties. However, from a mechanical engineering standpoint, copper possesses unique characteristics that demand careful handling. While highly ductile, it also exhibits significant tensile strength and is highly prone to work-hardening. This means that as it is deformed during copper joint bar processing, its internal grain structure changes. The metal becomes harder and more brittle at the exact point of manipulation. Consequently, the physical dimensions of the copper alter how it reacts to mechanical force.
Furthermore, we must look at where the industry is heading. The rapid global shift toward renewable energy infrastructure, high-capacity data centers, and electric vehicle charging networks has fundamentally changed material requirements. These high-load applications demand massive amperage. This forces engineers to specify thicker and heavier copper busbars, often reaching 12mm to 16mm. As a result, fabrication facilities are rapidly moving away from manual setups. Today, every single hydraulic pressure setting, tooling selection, and digital parameter must be rigorously calibrated with the exact material thickness as the foundational variable.
When a heavy conductor is bent, the material on the outside of the curve stretches under tension. At the same time, the material on the inside compresses. The boundary between these two opposing forces is known as the neutral axis. As material thickness increases, the distance from the neutral axis to the outer edge expands. This significantly amplifies the stretching force.
To prevent the metal from fracturing on the outside or wrinkling on the inside, operators must respect the minimum bend radius. A standard engineering rule dictates that the inside bend radius should be at least equal to the thickness of the material for soft copper. Bending a thick busbar too sharply using a narrow V-die causes localized stress concentrations. These micro-fractures severely degrade both electrical conductivity and mechanical integrity.
In addition, springback is the natural tendency of metal to attempt to return to its original flat shape after a bending force is removed. Thickness heavily impacts this springback angle. Generally, thinner materials exhibit a higher degree of springback relative to their thickness because a larger percentage of the metal remains in the elastic zone. In contrast, thicker busbars require massive force to bend. This pushes more of the material into the plastic zone. However, the absolute force required to overcome the springback in thick copper is immense. Operators must adjust the bending angle settings on the interface to intentionally over-bend the copper. For instance, you might drive the die to 88 degrees to achieve a perfect and relaxed 90-degree final angle.
Picture an operator wrestling with a heavy 15mm thick busbar. If the equipment tonnage is set too low for that thickness, the hydraulic pump will stall. It will groan under the pressure and fail to complete the bend. Conversely, setting the hydraulic tonnage too high on thin copper will drive the material too aggressively into the die. This leaves nasty coining marks and causes cross-sectional deformation. Bending force requirements increase exponentially as copper thickness increases. Doubling the thickness of the busbar effectively quadruples the required bending force.
In any copper busbar punching machine, die clearance is arguably the most critical parameter. Die clearance is the physical space measured between the outer diameter of the descending punch tool and the inner diameter of the bottom die. The general rule for electrical copper is that the total die clearance should be approximately 5 to 8 percent of the material thickness. Naturally, as thickness increases, this clearance must increase proportionally.
If the clearance is set for 5mm copper but used on a 10mm batch, the punch will require excessive force to penetrate. This causes severe tool wear and dangerous overheating. It can even result in the punch snapping or jamming inside the die during retraction. On the other hand, if the gap is too large for the material thickness, the copper will be dragged down into the die rather than sheared cleanly. This results in heavy burrs, torn edges, and unacceptable convex deformation around the hole.
Operators must also ensure their equipment has adequate tonnage capacity to punch through specific thicknesses. The standard formula for calculating punching force is the perimeter of the hole multiplied by the material thickness, multiplied by the shear strength of copper. Because material thickness is a direct multiplier in this equation, processing thicker materials demands significantly higher hydraulic capacity. Improper settings on thick materials often cause cupping. This is a physical distortion where the flat surface of the copper around the punched hole bows outward. In electrical engineering, a perfectly flat contact surface is mandatory for bolted joint connections to prevent electrical arcing and dangerous heat buildup.
Shearing copper is not simply cutting through metal like scissors through paper. It is a process of controlled plastic deformation followed by a calculated fracture. A shearing station utilizes an upper blade that descends past a fixed lower blade. The horizontal distance between these two blades must be meticulously adjusted based on the thickness of the busbar. For optimal shearing, this gap should typically be set to 3 to 5 percent of the material thickness.
Specifically, thin copper requires a very tight blade gap. If the gap is too wide, the thin material will fold or bend between the blades rather than shear cleanly. Thick copper requires a wider blade gap. If the gap is too tight on a heavy conductor, the secondary shear fracture lines will not align properly. This results in a jagged edge, excessive cutting force, and rapid dulling of the hardened blades.
When cutting heavy conductors with incorrect gap settings, operators frequently encounter roll-over. This mechanical defect occurs when the top edge of the cut is pulled downward and heavily deformed before the actual shearing begins. Severe roll-over reduces the cross-sectional flat area of the busbar at the joint, which negatively impacts the electrical connection. By calibrating the cutting station blade gap and clamping force to match the specific thickness of the batch, operators guarantee a clean and perpendicular cut.
To help engineers and operators standardize their shop floor processes, below is a quick reference guide demonstrating how parameters scale with copper thickness.
| Copper Thickness | Recommended Minimum Bend Radius | Optimal Die Clearance | Suggested Blade Gap |
|---|---|---|---|
| 3mm - 5mm | R5 | 0.15mm - 0.40mm | 0.10mm - 0.20mm |
| 6mm - 10mm | R10 | 0.30mm - 0.80mm | 0.25mm - 0.50mm |
| 12mm - 16mm | R16 | 0.60mm - 1.28mm | 0.50mm - 0.80mm |
To achieve consistent results, operators must follow a strict calibration protocol when transitioning between different copper thicknesses. Variations in thickness from the material supplier can easily alter the outcome of fabrication.
The first step is to measure the actual thickness of the copper batch using digital calipers. Mill tolerances can vary by fractions of a millimeter. Once measured, the operator inputs the exact thickness, width, and desired target angles into the digital interface. Advanced systems utilize these inputs to automatically calculate the required stroke depth, back-gauge position, and estimated springback compensation.
Data input alone cannot compensate for incorrect physical hardware. The thickness of the busbar dictates the size of the tooling utilized across all stations. For bending, you must select a V-die where the opening width is appropriate for the thickness. For punching, verify that the installed punch and die set matches both the required hole diameter and the specific die clearance percentage dictated by the bulk of the copper.
Regardless of how advanced the equipment is, empirical testing remains a critical step. Never process a final production piece without testing. Utilize a scrap piece of copper from the exact same batch to perform a test bend, punch, and cut. Inspect the test piece for burrs, cracking, or dimensional inaccuracies. Adjust the digital stroke parameters based on these real-world results before running the full production volume.
Historically, adjusting machine settings for different thicknesses required manual limit switches, physical measuring gauges, and highly experienced operators. While manual machines remain viable for low-volume production with consistent and thin materials, they are highly susceptible to human error when material dimensions scale up. Upgrading to a Computer Numerical Control system represents a massive leap in quality assurance.

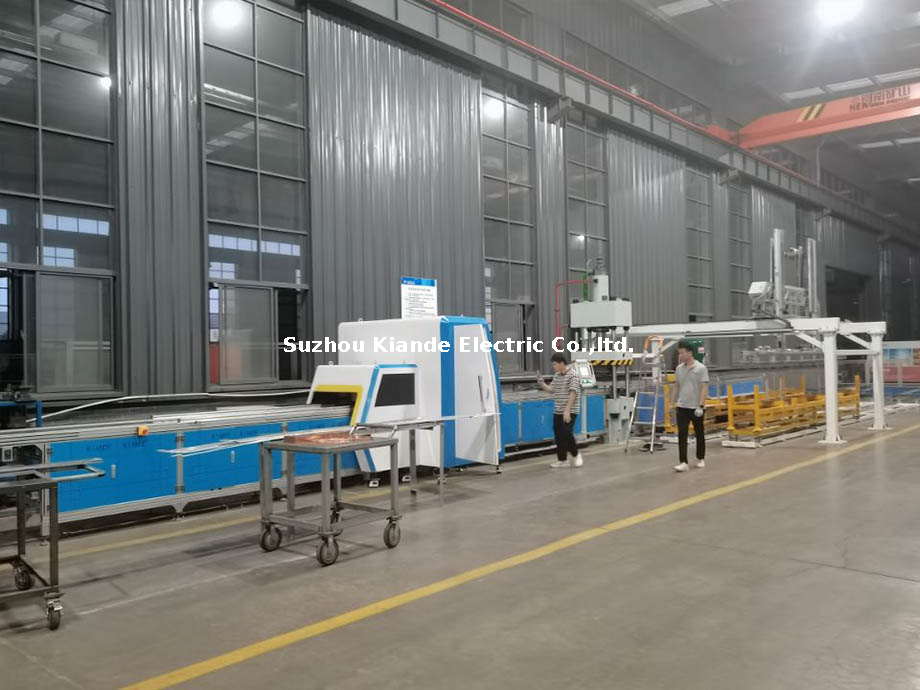

For facilities handling a wide variance of fabrication tasks, an all-in-one copper busbar processing machine is the most efficient solution. When evaluating these machines for procurement, you must scrutinize the technical specifications against your thickest required busbars. For example, a high-end digital processing center is typically equipped with a 500kN punching cylinder and Siemens PLC controls. This setup effortlessly handles copper busbars up to 16mm in thickness and 250mm in width. It guarantees precision stroke depth to a fraction of a millimeter. If your facility plans to process 20mm heavy-duty conductors, you will need to select models with reinforced dual-column frames and upgraded hydraulic power units to prevent structural deflection during operation.
Copper thickness is the foundational metric that controls every setting on your fabrication equipment. From altering the blade gap during shearing to dictating the die clearance in punching and the stroke depth in bending, understanding how thickness interacts with hydraulic force is non-negotiable. Mastering these settings ensures high-conductivity electrical connections, significantly extends the life of your tooling, and drastically reduces expensive material waste.
If your facility is struggling with inconsistencies, dangerous burrs, or manual setup delays, it is time to upgrade your capabilities. Investing in a digital processing center automates these complex thickness calculations. It improves your daily production efficiency and final product quality. Evaluate your current and future thickness requirements, and visit busbarequipment.com to find the ideal automated equipment tailored to your specific shop floor demands.
Machine capacities vary significantly by model and manufacturer. Standard industrial machines typically process copper busbars up to 12mm to 16mm in thickness. Specialized heavy-duty industrial models are available that can handle thicknesses of 20mm or more. These heavier machines require substantially larger hydraulic power units and heavily reinforced structural frames to prevent deflection during operation.
For electrical-grade copper, the general engineering guideline is to set the total die clearance at approximately 5 to 8 percent of the material thickness. If you are punching a 10mm thick busbar, the total clearance between the punch and the die should be between 0.5mm and 0.8mm. This precise gap ensures a clean shear and prevents the tool from binding during retraction.
Cracking on the outer radius is almost always caused by using a bend radius that is too tight for the given material thickness. When heavy copper is forced into a sharp angle, the outer fibers stretch beyond their physical tensile limits and fracture. To resolve this, operators must use a larger punch radius and a wider V-die to distribute the bending stress over a larger surface area.
While requirements depend on the specific amperage load, most commercial low-voltage switchgear applications use a minimum copper thickness of 3mm to 5mm for grounding or low-current phases. However, main distribution buses usually start at 6mm and scale upwards to 12mm or more to safely manage thermal loads and prevent voltage drops.
Yes, temper plays a massive role. Hard-drawn copper has a much higher yield strength compared to annealed soft copper. Therefore, bending a 10mm hard-drawn busbar will require significantly more hydraulic tonnage and will exhibit much greater springback than a 10mm soft copper busbar. Operators must adjust their digital stroke depth accordingly when switching material tempers.
