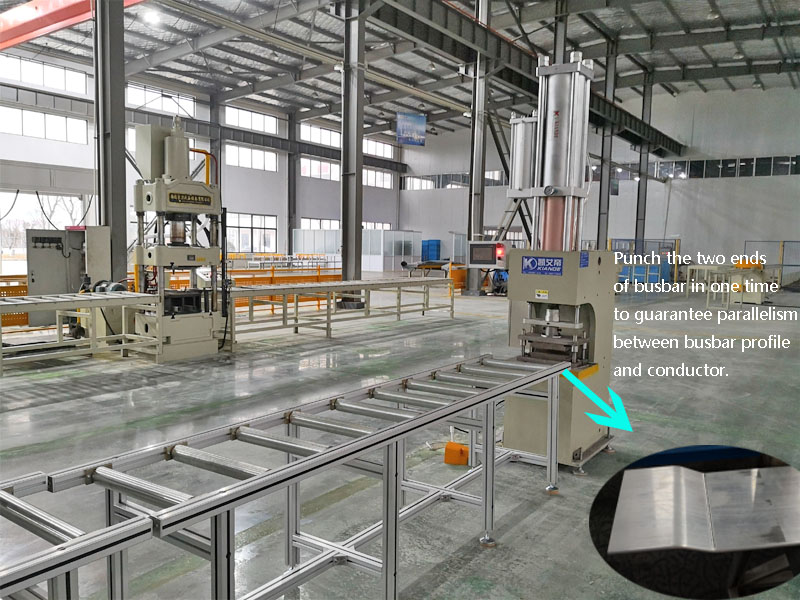

40T Cnc Copper Hydraulic Digital Bus Bar Punching Machine suit for punch the two ends of busbar. This specialized equipment serves as a foundational asset for modern electrical panel manufacturing, switchgear assembly, and large-scale power distribution projects. When processing thick conductive metals, achieving absolute precision is a strict requirement to prevent catastrophic electrical failures. As the tooling engages the copper or aluminum, operators can feel the precise 40-ton force cleanly shearing through the thick metal, leaving behind smooth, mirror-like hole edges that require no secondary filing or deburring.
This parallelism ensures the reliable connection between conductor and joint which can control joint temperature rising. A perfectly flush and parallel joint maximizes the surface contact area, facilitating uninterrupted current flow and eliminating the microscopic gaps that typically cause electrical arcing and dangerous heat buildup. By maintaining this optimal electrical conductivity, the machine directly contributes to the long-term safety, efficiency, and operational lifespan of the final switchgear assemblies.
The advantage of that machine can adjust the rebound coefficient according to conductor’s material and width. Rebound coefficient varies by bending or different conductor width and this kind of adjustment can guarantee the parallelism. By actively compensating for the natural spring-back of different metals—whether handling rigid extruded copper or softer aluminum alloys—the advanced CNC system guarantees that every single punched hole and bent edge aligns flawlessly during the final assembly process. This intelligent adaptation eliminates the guesswork for operators and drastically reduces the rate of material rejection.
In a high-paced production environment, the ability to pivot between different product specifications dictates overall profitability. The advanced quick-change tooling system integrated into this machine transforms how operators handle workflow transitions. Instead of spending hours unbolting and calibrating heavy dies, the quick-release mechanism allows for rapid adaptation to various hole diameters and shapes—be it round, oblong, or square. This flexibility is crucial when fabricating custom switchgears that demand diverse connection points. The die sets themselves are forged from hardened, wear-resistant steel, ensuring that even after thousands of cycles, the cuts remain razor-sharp and the metal yields cleanly without tearing or warping.
Modern fabrication relies heavily on data-driven execution. The onboard digital control system acts as the brain of the operation, taking complex engineering drawings and translating them into optimized punching sequences. The proprietary layout software analyzes the dimensions of the raw busbar and calculates a path that minimizes material travel. This not only drastically reduces the time the metal spends on the processing table but also tightly packs the punch locations to minimize off-cut waste. For procurement managers, this translates directly to better material yield and lower raw copper costs. The touchscreen interface is highly intuitive, displaying visual representations of the workpiece, allowing operators to verify the program before initiating the 40-ton hydraulic press, thereby eliminating costly manual errors.
Delivering 40 tons of raw force requires a highly capable power plant, yet this machine achieves it with remarkable efficiency. The hybrid hydraulic and pneumatic system is engineered to provide explosive punching power exactly when the die meets the metal, while conserving energy during the retraction and standby phases. Walking past the machine in operation, one immediately notices the absence of the harsh, rhythmic banging associated with older mechanical punchers; it is replaced by a controlled, powerful hydraulic hum. This reduction in noise pollution significantly improves the working conditions on the shop floor, reducing operator fatigue. Furthermore, the advanced fluid dynamics within the hydraulic cylinders prevent oil overheating, ensuring consistent pressure delivery even during continuous, multi-shift production runs.
Acquiring heavy-duty fabrication machinery is a long-term investment that demands absolute assurance in both structural durability and post-installation support. This punching system is meticulously engineered to satisfy the intense demands of continuous, industrial-scale electrical manufacturing, ensuring that every processed busbar adheres to the strictest global electrical standards.
| Certified Industrial Quality | Constructed under rigorous ISO9001 quality management protocols, the equipment’s framework is built from stress-relieved, heavy-gauge steel to eliminate flexing under maximum load. It proudly carries CE and UKCA international safety certifications, validating its suitability for highly regulated markets and demanding operational environments. |
| Comprehensive Safety Mechanisms | Operator protection is deeply integrated into the design. A heavy-duty, shielded safety foot switch allows personnel to keep both hands free for guiding massive copper bars, while maintaining absolute, instantaneous control over the punch stroke. The system also features enclosed scrap collection zones and leak-free hydraulic circuits, aligning with modern environmental requirements for a clean, hazard-free workshop. |
| Global Technical Assistance | To safeguard your production schedule, this machine is backed by a comprehensive 12-month warranty covering all major components. Integration is streamlined through highly detailed installation and commissioning video guides. We offer immediate online diagnostic troubleshooting, and for large-scale deployments, our experienced overseas engineers can be dispatched for on-site technical support to ensure your equipment operates at peak performance year-round. |
