3M Busduct Indoor Insulation Film for Electric Insulation

Product Overview: 3M Busduct PVC Insulation Film for Heat Insulation

In the intricate architecture of modern power distribution, the integrity of every component is paramount. Securing power distribution networks requires materials that offer unwavering reliability. The 3M Busduct PVC Insulation Film is engineered specifically to address the rigorous demands of indoor electrical isolation and heat resistance. Manufactured from a premium-grade polyvinyl chloride (PVC) substrate, this film delivers a profound combination of dielectric strength and long-lasting mechanical protection. When handled, technicians will immediately notice its smooth, uniform texture—a tactile indicator of its high-density composition. It emits a clean, neutral scent, signifying the use of virgin, non-recycled polymers that guarantee consistent performance. The film's distinct pliability allows it to conform tightly to complex busway geometries, eliminating hazardous air gaps and ensuring a secure, protective wrap that stands the test of time.

Unyielding Electrical and Mechanical Performance

At the core of this insulation film is its exceptional ability to maintain electrical isolation under stress. It boasts a high dielectric strength and an impressive rated voltage withstand capacity, acting as a critical barrier against electrical faults, short circuits, and corona discharge. This ensures the safe and stable operation of entire busduct and power distribution systems. Beyond its electrical capabilities, the film exhibits remarkable physical resilience. It features high tensile strength and superior wear resistance. When electrical contractors manipulate the film around sharp 90-degree bends or complex joints, it retains its protective thickness without compromising the dielectric barrier. Over the long term, it effectively withstands the micro-abrasions caused by the natural thermal expansion and contraction of metal busbars, preventing any degradation of the insulation layer.

Advanced Thermal Stability and Flame Retardancy

Operating environments for power distribution can experience significant temperature fluctuations. This PVC insulation film is formulated to adapt to a broad working temperature range, maintaining its structural and electrical integrity whether in cold startup conditions or under peak operational heat loads. Prolonged exposure to operational heat can cause inferior materials to become brittle and crack. However, this specialized insulation film resists thermal aging, ensuring that it remains pliable and effective over decades of continuous service. Furthermore, it is equipped with outstanding flame-retardant characteristics. In the critical event of an external fire or an abnormal temperature spike within the electrical system, the film is designed to resist ignition and self-extinguish. This crucial feature satisfies the most stringent indoor electrical fire safety requirements, preventing the propagation of flames and protecting vital infrastructure from catastrophic damage.

Global Certifications and Customization Adaptability

Compliance is a non-negotiable pillar in electrical engineering and facility construction. This insulation film rigorously adheres to recognized international electrical safety standards, proudly meeting the exacting criteria for UL and CSA certifications, alongside strict RoHS environmental compliance. Utilizing such certified materials directly translates to higher pass rates during stringent engineering inspections, municipal safety audits, and final project handovers. To accommodate diverse project requirements and specific architectural constraints, the film is available in multiple standard thicknesses and widths. Additionally, it supports precise, on-demand custom cutting to ensure an exact fit for any specific busduct configuration, drastically reducing material waste on the job site and accelerating the overall installation timeline.

Comprehensive Application Scenarios and Strategic Value

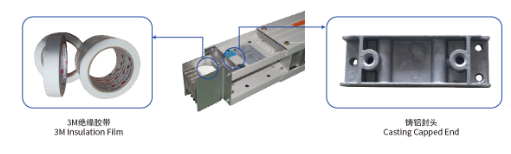

Designed with versatility in mind, this insulation film is the material of choice for a wide array of critical applications. It is specifically tailored for the meticulous insulation wrapping and protection of indoor busducts, switchgear cabinets, power transformers, and various high and low-voltage electrical equipment.

• Enhanced System Longevity: By providing a resilient barrier against ambient moisture, particulate dust, and continuous mechanical wear, the film significantly extends the operational lifespan of expensive electrical assets, safeguarding your capital investment.
• Reduced Maintenance Overhead: The durable nature of the PVC substrate minimizes the need for frequent physical inspections and preventative replacements. This reliability directly lowers ongoing operational costs and frees up maintenance teams for other critical tasks.
• Streamlined Installation Process: The material's crisp edges and consistent thickness allow for neat, professional overlapping during application. The tactile feedback during wrapping ensures technicians can achieve the correct tension easily. This improves the internal aesthetic finish of the wiring and makes visual safety verifications straightforward during routine audits.
• Uncompromising Reliable Protection: Whether deployed in the electrical risers of commercial high-rises, the heavy-duty switchgears of industrial manufacturing plants, or the critical power pathways of data centers, the film delivers profound peace of mind through consistent, verifiable electrical isolation.
