A busbar production line changes how switchgear is made. It helps make things faster at every step. Manufacturers can finish work quickly and save money. Automated busbar processing lets them customize parts exactly. Machines help keep quality high and make fewer mistakes. Safety gets better because standards stay the same. Suzhou Kiande Electric Co., Ltd. gives trusted busbar automation solutions. These help manufacturers follow tough industry rules with confidence.
Busbar production lines make switchgear faster to build. This helps companies save both time and money.
Automation in busbar production cuts down on mistakes. It keeps the quality high and makes sure connections work well.
Modern machines help lower labor costs and waste less material. Factories can make more products with less work.
Copper busbar fabrication makes things safer and more efficient. It helps electrical systems work better and lose less heat.
Easier assembly steps help finish projects faster. This lets manufacturers meet tough industry rules.
A busbar is a thick metal strip. It is made from copper or aluminum. It carries a lot of electricity in power systems. Busbars are used because they have low resistance. They let electricity flow easily and do not waste much energy. This helps stop overheating and energy loss. Busbars can be different shapes and sizes. The size depends on what the electrical system needs. Each busbar must be the right size and very smooth. This keeps connections safe and reliable.

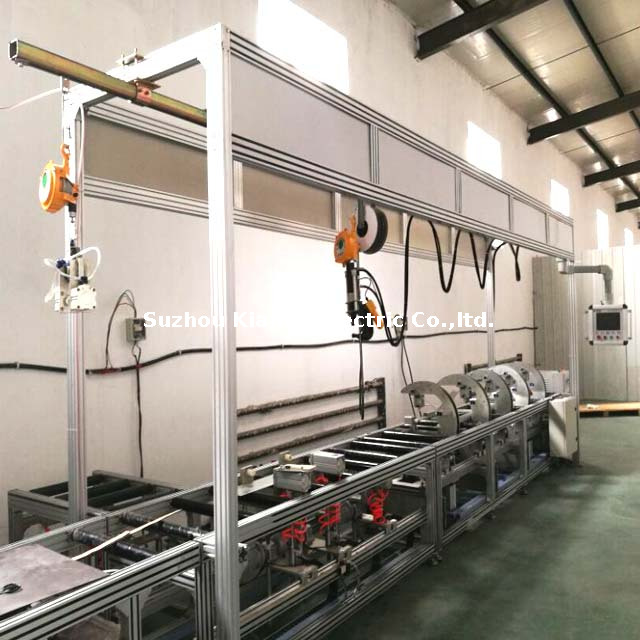

A busbar production line has many steps and machines. The table below shows the main steps:
Stage/Component | Description |
|---|---|
Loading | Busbars are put on the infeed conveyor. |
Cleaning (Optional but Recommended) | Busbars go through a cleaning station to remove dirt. |
Wrapping | The busbar gets wrapped as it moves through the wrapping machine. |
Cutting and Sealing | The wrapping is cut and sealed by the machine. |
Unloading | The wrapped busbar comes out on the outfeed conveyor. |
Infeed Roller Conveyor | This conveyor helps load busbars and moves them to the next step. |
Automatic Busbar Cleaning Device | This machine cleans the busbar before it gets wrapped. |
Automatic Wrapping Machine | This machine wraps the busbars in a special way. |
This process helps busbar production stay fast and efficient.
Busbars are very important in switchgear making. They move power from the main lines to smaller circuits. Busbars help make strong and safe electrical connections. The busbar production line helps make parts that control and protect electrical equipment. Making busbars the right way is very important. If a busbar is the wrong size or bent wrong, it can cause bad connections. This can make the busbar get too hot and even fail.
Busbar systems are key parts in switchboards. They help deliver electricity safely and efficiently.
A good busbar production process lowers repair costs and makes the system safer. Good busbars make it easy to add new breaker frames and switches. Companies need fast and accurate production lines to meet tough rules and always get good results.
Suzhou Kiande busbar machines make the production line faster. They use smart technology to do important jobs automatically. Workers set up the machines, and then the machines do the work. This makes busbars faster and helps the factory work better.
The table below shows how automation helps speed and accuracy:
Automation Feature | Description |
|---|---|
Automated Positioning | Puts parts in the right place quickly and correctly. |
Automated Transferring | Moves materials fast between steps. |
Automated Riveting | Puts parts together without people doing it. |
Zero Manual Intervention | Stops mistakes and makes everything go faster. |
These features help the line run without problems. Automated positioning puts each busbar in the right spot. Automated transferring moves things fast so work does not stop. Automated riveting joins parts quickly and keeps them strong. Zero manual intervention means fewer mistakes and faster work. The line works fast and always gives the same results.
Precision is important in switchgear making. Suzhou Kiande busbar machines use controls to keep busbars the right size. The machines change settings for different materials and widths. This makes sure each busbar fits well.
Suzhou Kiande busbar machines keep quality high in many ways:
They use automation to stop mistakes in making busbars.
Built-in functions help make switchgear parts the same every time.
The data system helps fix problems fast and keeps quality high.
Workers see fewer mistakes and do not need to fix things as much. The machines make busbars the same from start to finish. This helps factories work better and keeps quality high every time.
Suzhou Kiande busbar machines help companies save money and need fewer workers. Automation does jobs that people used to do. The machines cut, punch, bend, and emboss busbars in one step. This saves money and makes work faster.
Factories save money in these ways:
Fewer workers are needed because machines do more jobs.
Less material is wasted because machines work carefully.
Fewer mistakes mean less time fixing things.
The busbar line costs less and works better. Companies can make more busbars without hiring more people. They keep quality high in every batch. This helps factories work faster and get better results in switchgear making.
Copper busbar fabrication is important for switchgear reliability. Good fabrication makes electrical connections more precise. These connections help switchgear work safely and well. Engineers use advanced copper busbar fabrication to control heat and energy loss.
A well-made busbar keeps resistance low. This means less heat and better energy use. The table below shows how copper busbar production affects heat:
Parameter | Value |
|---|---|
Resistance per meter | 0.05 milliohms |
Heat generation per meter | |
Total heat generation (100m) | 20kW |
Primary heat dissipation | Natural convection |
Effectiveness factors | Surface area, orientation |
Engineers use simulations to see how busbars handle heat. They find problems early and change designs to fit needs. This process uses less material and saves space. It keeps temperatures safe, even in crowded switchgear.
Copper busbar fabrication gives many benefits:
High electrical conductivity
Great thermal performance
Less power loss
Better safety and reliability
Mechanical stability is very important for switchgear systems. Copper busbar fabrication makes each busbar strong under stress. Good production keeps busbars from bending or breaking. This protects connections and stops failures.
Modern copper busbar fabrication meets strict safety rules. The table below lists important standards for switchgear making:
Standard | Region | Covers |
|---|---|---|
IEC 61439-1/2 | International | Temperature rise, short-circuit performance |
UL 857 | North America | Busway systems, current ratings, construction |
IEEE 605 | USA | Mechanical and electrical stresses |
BS EN 60439 | UK/Europe | Type-tested assemblies |
IS 8623 | India | Copper busbars for electrical purposes |
GB/T 5585 | China | Electrical copper busbars specifications |
Manufacturers must get certifications like ISO 9001, ISO 14001, UL Listing, CE Marking, and RoHS Compliance to show quality and safety.
Copper busbar fabrication helps switchgear work reliably. It helps companies meet global standards and make safe products. Consistent production improves quality and lowers risks in every switchgear system.
Modern busbar production lines use CNC automation. CNC machines cut, punch, and bend parts with great accuracy. Workers set up the machines, and they finish jobs fast. Manual methods need skilled workers for each step. This makes production slower and results less steady.
Suzhou Kiande’s busbar solutions show how automation helps. In power transmission, precise parts make systems more reliable. They also lower maintenance costs. Railway systems use high-precision fishplates. These fishplates make tracks safer and more stable. Heavy machinery makers produce important parts quickly. This boosts performance and helps machines last longer.
Application Area | Impact on Production Efficiency |
|---|---|
Power Transmission Infrastructure | Precise parts make lines more reliable and cut maintenance costs. |
Railway Systems | Accurate fishplates keep tracks safe and strong. |
Heavy Machinery in Construction Sites | Fast production of key parts improves performance and helps machines last longer. |
Modern busbar lines use automation to improve workflow. Robots replace manual labor and make work faster and steadier. Line balancing uses automatic loading and unloading. This keeps parts moving smoothly. Modular equipment lets factories change setups quickly. Control systems help manage the process.
Strategy | Description |
|---|---|
Automation | Robots do precise jobs, making work faster and steadier. |
Line Balancing | Automatic loading and unloading keeps parts moving well. |
Advanced Manufacturing Techniques | Modular equipment lets factories change setups fast and control systems help manage everything. |
Scalability is very different in traditional and modern busbar systems. Traditional busbars are not flexible and need big changes to expand. Modern systems are modular and easy to install. They also make maintenance easier. Manufacturers can change layouts and add equipment quickly.
Feature | Traditional Busbars | Modern Busbar Systems |
|---|---|---|
Scalability | Not flexible | |
Installation Time | Takes longer | Faster |
Maintenance Access | Harder | Easier |
Adaptability to Change | Needs big changes | Quick adjustments possible |
Modern busbar trunking systems are made ahead of time for easy setup. Their modular design helps electrical distribution and keeps out dirt and dust. Manufacturers get better efficiency and improved switchgear production by using these advanced lines.
Manufacturers have many problems when making busbars. They need to keep parts the right size and shape. Joints must be strong and not break. The table below lists the main problems:
Challenge Type | Description |
|---|---|
Precision Requirements | Parts must fit within ±0.1mm to work in enclosures. |
Bending and Forming Complexities | Wrong bend size causes 34% of busbar failures. |
Welding and Joint Integrity | Bad welds can make contact resistance go up by 400%. This makes too much heat. |
Surface Treatment and Corrosion | Tin-plated copper busbars last 15 years in tough places. |
Modern busbar lines use machines to fix these problems. Automation helps stop mistakes and makes work faster. Machines keep each part the same and improve quality. Automated controls check every step for accuracy. CNC busbar processing checks every size and bend. This makes busbars more stable and correct. With this method, there are fewer mistakes and better products.
Automated busbar lines help companies make good products and follow strict rules.
Easy assembly and installation are important for switchgear factories. Busbar lines use special machines for each job. The table below shows how each machine helps the work go faster:
Machine Type | Contribution to Efficiency |
|---|---|
Hydraulic Busbar Bending | Makes custom busbars with exact angles. This keeps things safe and working well. |
Busbar Punching Machines | Makes holes and slots fast and accurate. This helps production move quickly. |
CNC Busbar Punching Machines | Makes sure busbars are always the same and reliable. |
Busbar Cutting Machines | Helps build switchgear that fits many places. |
CNC busbar processing keeps every step exact and steady. This technology lets workers change things fast and use materials well. Simple steps mean less time and money spent on setup. Prefabricated busbar parts bolt together quickly. This saves weeks on projects. Fewer electricians are needed, so work is easier. Companies use their resources better and their systems stay strong.
Easy assembly and CNC busbar processing help companies make good switchgear with less work and better results.
Busbar production lines help switchgear factories work better and faster. The table below shows the main ways they help:
Efficiency Gain | Description |
|---|---|
Reduced Variations | There are fewer mistakes and less fixing needed. |
Stabilized Batch Production | Work moves smoothly and more gets done. |
Improved Delivery Stability | Schedules are steady and there is less extra work. |
Integrated Workflow | Cutting, punching, and bending happen together in one system. |
Suzhou Kiande solutions make these things happen by giving:
Better quality because of careful work and good data checks.
The ability to make lots of busbars or special ones for different jobs.
Switchgear makers get more done, make better products, and stay ahead of others. Smart machines help factories work in new ways, protect the planet, and follow world rules. Now is a good time to use smart busbar systems to get ready for the future.
A busbar punching and shearing machine cuts busbars and makes holes in them. It uses special shearing technology to shape copper or aluminum bars for electrical systems. This machine helps factories work faster, make fewer mistakes, and stay safe.
Shearing makes clean and exact cuts in busbars. This means less waste and every connection fits just right. Shearing also helps factories follow strict rules and finish work faster.
Busbar bending accuracy makes sure each busbar fits in the cabinet. Good bends stop electrical problems and keep things from getting too hot. This helps electrical systems stay safe and work well.
A busbar punching and shearing machine helps factories work faster, make fewer mistakes, and keep workers safe. It also helps use more material and waste less. Workers can make more busbars with better quality and less waste.
Shearing lets factories use more of each busbar. Less material is thrown away during production. This helps factories save money and use materials better.
Tip: Keep the busbar punching and shearing machine in good shape. This keeps shearing quality high and makes electrical work safer.
