Common Busbar Manufacturing Problems and How to Solve Them

You can face many problems in Busbar Manufacturing. These problems can hurt how well and how safe your system works. The most common problems are with material selection, joint design, the environment, insulation, and planning for future loads. Fixing these problems helps your electrical systems work better and stay safe. Using automation and new machines, like those from Suzhou Kiande, can lower mistakes and make things faster.

Key Takeaways

• Pick good materials so busbars work well and do not fail.

• Make joints with care so they do not get too hot and stay safe.

• Keep the area clean and dry to stop busbars from rusting or getting dirty.

• Make sure sizes are exact so parts fit and do not get too hot.

• Check insulation often so it does not break and cause danger.

• Use machines to help make busbars so mistakes are less and work is faster.

• Use the right ways to fasten parts so they stay tight and do not come loose.

• Set up strong checks to find problems early and keep everyone safe.

Material Quality Challenges

Substandard Copper or Aluminum

Causes of Material Defects

You can find many material defects when making busbars. These problems often happen because the raw materials are not good, storage is wrong, or mistakes happen during production. Some common issues are resin voids, warping, delamination, resin overflow, and surface steps. Each problem has its own cause. For example, low-flow polypropylene, uneven copper, or bad adhesion can cause these defects. The table below shows the main material quality problems, their causes, and how to fix them:

Impact on Busbar Performance

If you use bad copper or aluminum, your busbars may not work well. Poor materials can make busbars overheat, spark, or fail. You might see too much heat, voltage changes, or even fires. These problems can break electrical panels and put your whole system in danger. Good busbar manufacturing needs high-quality materials for safety and lasting performance.

Solutions for Material Selection

To stop these problems, always pick copper and aluminum that meet strict standards. The table below lists important standards you should follow:

You can use automated machines, like Suzhou Kiande’s Busbar Machine, to make sure materials are processed right and quality stays the same. Automation helps control sizes and lowers mistakes.

Corrosion and Contamination

Preventing Corrosion

Corrosion and contamination can start while making or storing busbars. Common causes are things like air, water, pollution, and chemicals. The table below explains these sources:

You can stop corrosion by keeping busbars dry and clean and using protective coatings. Do not let busbars touch water, dust, or chemicals.

Cleaning and Handling Best Practices

Always keep busbar surfaces clean from dust, oil, and chemicals. Wear gloves when touching materials to keep them safe. Check and clean storage areas often to lower pollution risks. If you let corrosion or dirt build up, resistance goes up and failures can happen. Clean busbars last longer and work better.

Tip: Make a regular cleaning and inspection plan to keep busbars in good shape during manufacturing.

Precision and Dimensional Accuracy in Busbar Manufacturing

Precision and dimensional accuracy are very important in Busbar Manufacturing. Every busbar must fit just right and work safely. If you do not control the size, problems can happen. You might get overheating, joints that break, or insulation that gets stressed. The table below explains why being accurate is important:

Cutting and Punching Errors

Causes of Inaccuracies

Cutting and punching mistakes can happen for a few reasons. Machines might not be set up right. Tools can get old and worn out. Sometimes, people use the wrong settings. These mistakes can cause:

• Bad punching, which makes holes not line up and weakens connections.

• Cutting mistakes, which make busbars the wrong length and waste material.

• Holes in the wrong place, which mess up spacing and support.

Effects on Assembly

Cutting and punching mistakes cause problems when putting parts together. Holes, slots, and countersinks might not match other parts. This makes it hard to fit everything. In places with lots of current, bad holes make less contact and add stress. If things do not line up, connections get weaker. The whole system might not work as well.

Note: If you do not fix these mistakes, resistance can go up. Hot spots or even failures can happen.

Suzhou Kiande Busbar Machine Solutions

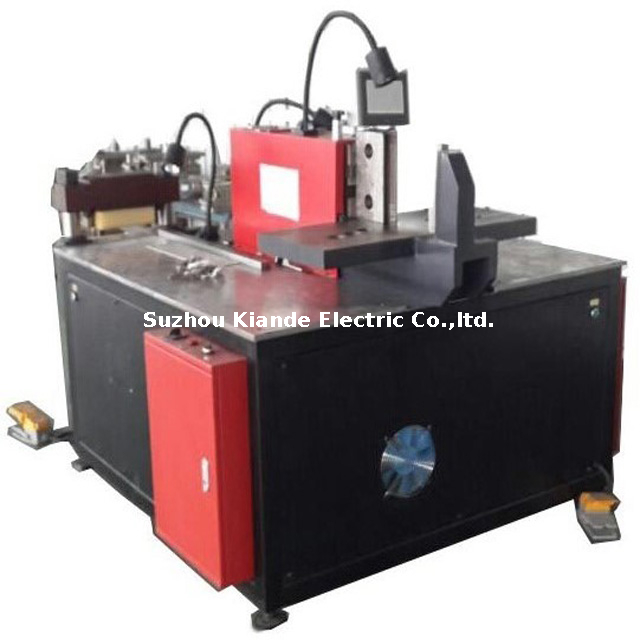

Suzhou Kiande’s Busbar Machine helps fix these problems. The machine uses smart CNC systems and servo motors. It can be very exact, down to 0.05mm. You get a smooth finish with sharp cutting, which helps electricity flow better. The machine makes every part the same, so bending and punching mistakes are less likely. This is good for tricky assemblies. You also waste less because the machine cuts and punches very well. This saves both material and time.

Tolerance and Hole Placement Issues

Design Considerations

You need to think about tolerance and where holes go. If tolerances are too tight, it costs more and takes longer. Bad hole placement can bend the busbar or need special tools. You should:

• Make sure holes, slots, and countersinks match other parts.

• Measure important holes from key points to keep things lined up.

• Do not put holes where they block current or make weak spots.

Quality Control Steps

You can do some things to keep quality high. Check if surfaces are flat to lower resistance. Look at the edges around holes to make sure they are smooth. Make sure the plating is even where parts touch. Use machines to check for mistakes early.

Tip: Checking often and using machines like Suzhou Kiande’s helps keep every busbar the right size.

If you focus on being exact and use the right tools, busbars will be safer, more reliable, and work better.

Bending and Forming Defects

Shape and Rebound Problems

Causes of Bending Defects

Bending defects can happen when you shape busbars. These problems start because the material gets squeezed and stretched a lot. If the material is not bendy enough, it can wrinkle. Sometimes, the busbar does not bounce back in a straight way. This makes it hard to control the angle. You might have to try bending it a few times to get it right. The busbar can also get a trapezoid shape when bent. This makes the contact surface uneven. If the material is harder in some spots, the angle can change. Springback can get worse and make the final angle hard to guess.

• Too much squeezing and stretching causes wrinkles.

• When the busbar does not bounce back right, you need to fix it more.

• Trapezoid shapes make the contact surface uneven.

• Hardness changes in the material can change the angle.

Impact on Performance

Bending problems can hurt how busbars work. Uneven surfaces make more resistance where they touch. This can make the busbar get too hot. If the angle is wrong, it is harder to put the busbar in place. You might have to fix it more to make it fit. Wrinkles and bad shapes make the electrical connection weaker. If you do not fix these problems, your system can break down a lot.

Tip: Always check the shape after bending. This helps stop problems before they get worse.

Automated Bending Solutions by Suzhou Kiande

Suzhou Kiande has special machines to fix bending and forming problems. These machines do the work by themselves and make the quality better. You do not need as many people to do the job. The machines help you work faster and better. Here are some machines you can use:

These machines help you get the same good results every time. Using machines to bend busbars makes sure they meet strict rules. This means there are fewer mistakes and it is easier to put them in.

Surface Cracks and Cold Shuts

Identifying Defects

You need to look for cracks and cold shuts when making busbars. Cracks look like lines or splits on the busbar. Cold shuts are spots where the metal does not join right. These problems can happen if the temperature is not right or if there is too much stress. Bad material can also make cracks.

• Cold shuts happen when the temperature is not controlled well.

• Cracks show up when there is too much stress or the material is not good.

Note: Look at busbars closely and use special tests that do not break them to find these problems early.

Prevention Methods

You can stop cracks and cold shuts by watching the forming process. Keep the temperature the same when making busbars. Pick materials that bend well and do not break easily. Use machines that press evenly on the busbar. Check busbars often to find problems before they get bad.

• Keep the right temperature when bending.

• Pick materials that bend without breaking.

• Use machines to press evenly.

• Check busbars often to find problems early.

Tip: Teach your team how to find and stop defects. This makes the busbars better.

Joint and Connection Failures

Poor Joint Design

Causes of Joint Failures

Busbar joints can have problems if not designed well. Some common reasons are loose bolts or connections. High contact resistance is another problem. If you do not tighten bolts enough, joints can fail. Oxidation deposits can build up on the joints. Bad plating can also cause trouble. Other things like not using the right torque, vibration, and temperature changes can hurt joints. Material creep and corrosion can make things worse. These problems get even worse in places with lots of humidity or chemicals.

Effects on Heating and Reliability

Bad joint design makes busbar joints heat up fast. If bolts are not tight, clamp force drops. This lowers the pressure at the contact point. Lower pressure means more resistance. More resistance makes more heat. Too much heat can break insulation and cause failure. Over time, dust and oxidation can build up. Corrosion can also cover the connection. This makes it harder for electricity to flow. Joints get hotter and can break. Loose joints can cause thermal faults and mechanical issues. This is worse if the system shakes or moves.

Tip: Always check if joints are tight and clean when you put them together. This helps stop overheating and failures.

Using Suzhou Kiande Busbar Accessories

You can fix many joint problems with good busbar accessories from Suzhou Kiande. These parts help you make strong and safe connections. They use careful engineering and tough materials. This lowers energy loss and keeps things safe. Suzhou Kiande has many types of accessories. You can find joints, connectors, and fasteners for different busbar systems. These products save you time when you install them. They also help you spend less on repairs. You can trust these accessories to keep your busbar system working well.

Loose or Corroded Connections

Fastening Techniques

You need to use the right way to fasten bolts to stop loose connections. Put bolts in straight lines, not in a zigzag. This helps the current move better. Make sure surfaces are flat and clean. Scrape off oxide layers to help metal touch metal. Use more than one bolt and thick washers to spread pressure. Pick the right bolt material and use the right torque. This stops bolts from getting loose when things get hot.

Note: Always use flat washers under bolts and nuts. Lock washers are good for important connections.

Corrosion Prevention

You can stop corrosion by picking the right materials and using protection. For inside use, zinc-plated steel works well. For outside or tough places, use stainless steel or silicon bronze. Always use joint compound for aluminum-aluminum and copper-aluminum joints. For copper-copper joints outside, joint compound is not always needed. Use flat washers and lock washers for better safety.

You can also use special grease to stop fretting corrosion. Sealants help stop crevice corrosion at threads. Stainless steels with molybdenum fight crevice corrosion well.

Tip: Check and fix connections often. This helps you find loose or rusty spots early. It keeps your busbar system safe and working well.

Insulation and Coating Problems

Inadequate Insulation

Causes of Insulation Failures

Insulation can fail for many reasons. Materials get old and lose strength. Heat goes up and down, which makes cracks. Dust, oil, and water can get inside and hurt insulation. These things make the dielectric layer weak. Your system may not work well. You can find problems by looking for cracks or peeling. You can also use special tests to check for issues. If you do not fix these signs, your busbar might stop working.

• Old materials break and get weak.

• Heat changes cause cracks and melting.

• Dust, oil, and water make insulation worse.

Tip: Check insulation often and use tests to find problems early.

Overheating and Electrical Risks

Bad insulation can make busbars get too hot. Too much heat from high current hurts insulation. This can cause short circuits. Poor insulation keeps heat inside the metal. The dielectric material can melt or crack sooner than expected. You can use special epoxy to move heat away and protect the busbar.

• High current makes heat build up.

• Bad insulation keeps heat in and melts.

• Short circuits and failures can happen.

Insulation Solutions in Busduct Production Line

Modern busduct lines use new insulation to stop failures. Air gaps and strong dielectric materials keep conductors safe from the metal housing. These materials handle big voltage and current. Makers pick insulation for indoor or outdoor use. Epoxy powder, Mylar PET films, and halogen-free epoxy resins make insulation stronger and safer. They stop toxic smoke if there is a fire. Tests like hi-pot and insulation at 1000V DC check reliability before you turn on the system.

Note: Automated lines, like Suzhou Kiande’s, help keep insulation quality steady and lower mistakes.

Coating Defects

Causes and Impacts

Coating problems can hurt busbar performance. Powder coating gives smooth coverage and stops cracks. It protects against things like water and dust. It keeps insulation strong for a long time. But you need to watch for:

• Uneven thickness at sharp edges and corners can cause failures.

• Thin spots and tiny holes can start discharge and tracking.

• Shape limits can make coating uneven as it gets thicker.

These problems can cause electrical breakdowns and make busbars last less time.

Quality Control in Coating

You can stop coating problems by using strict checks:

• Look at color and surface to see if it is even.

• Check if the surface is flat for good conductivity.

• Inspect edges and cuts to make sure they are smooth.

• Use simple bend tests to find coating issues.

Tip: Regular checks help keep insulation and coating reliable. This protects your busbar system from electrical risks.

Process and Equipment Issues

Equipment Calibration Errors

Identifying Calibration Problems

You should check your equipment calibration often. If calibration is wrong, measurements will not be right. This can mess up your quality checks. You might let bad products pass or throw away good ones. Gauge Repeatability & Reproducibility (GRR) helps you see if your measurements are trustworthy. When your system is reliable, busbar sizes stay the same. This stops mistakes that could cause failures.

• Wrong calibration makes measurements unreliable.

• Good measurements help you make smart choices.

• GRR checks if your system is trustworthy.

• Reliable measurements keep quality steady.

Tip: Always look at your calibration logs and test your machines before you start making things.

Maintenance and Automation with Suzhou Kiande

Doing regular maintenance keeps machines working well. This means less downtime and less wasted material. When you take care of your equipment, production runs better. You also need to check your power supply voltage. Using the right voltage stops machine problems. Steady voltage helps you make good busbars.

Suzhou Kiande’s automated machines help you avoid calibration mistakes. Their machines use smart controls to keep measurements right. You can trust these machines for steady and repeatable results. Automation means you do not need to check things by hand as much. This makes your work faster and easier.

Process Control Gaps

Monitoring and Automation

If you have process control gaps, mistakes can happen and quality drops. Using automation helps close these gaps. Automated systems make work faster and need fewer people. You get fewer mistakes and more even results. Automation saves space and boosts how much you can make. The PLC control system runs each step and lowers mistakes. Machines can put things together, clamp, and move parts by themselves. Anti-repeat riveting makes sure every connection is tight.

• Automation makes work faster and needs fewer workers.

• It cuts down on mistakes for steady quality.

• PLC systems run assembly steps.

• Machines do jobs by themselves for better accuracy.

• Anti-repeat riveting keeps connections safe.

Note: Automated monitoring helps you find problems early and fix them before they get worse.

Integration with Busduct Production Line

You can use automation in your busduct production line. Suzhou Kiande’s solutions link machines, inspection tools, and ERP software. This makes sure every step follows safety rules. Electrical connections stay strong, so there is less overheating and wasted energy. The system checks for missed steps or loose parts. You get steady production and better quality.

• Automation keeps electrical connections strong.

• The system follows safety rules at every step.

• It checks for missed steps and loose parts.

Tip: Use connected systems to watch your production and make it more reliable.

You can make Busbar Manufacturing better with automation and regular maintenance. Suzhou Kiande’s solutions help you control your process and keep your machines working well.

Quality Control and Inspection in Busbar Manufacturing

Inspection Procedure Gaps

Common Oversights

Some quality problems keep happening in busbar manufacturing. These problems show up because people skip steps or do not check well. For example, rough edges, cracks, and holes in the wrong place can get missed if you do not look closely. Sometimes, the coating peels off or busbars get too hot when used. These problems can make things unsafe and cost a lot to fix.

Here is a table that lists common inspection mistakes, what you see, why they happen, and how to fix them:

Tip: If you find these problems early, you can fix them before they hurt your whole system.

Implementing Robust QC Protocols

You can stop most inspection mistakes by using strong quality control steps. Start with simple checklists for every job. Use digital templates and CNC machines to make fewer mistakes. Teach your team to look for cracks, sharp edges, and coating problems. Check the first busbar in every batch before making more. Use thermal cameras to find hot spots. Write down every check so you can see patterns and fix weak spots.

• Make a checklist for each step.

• Use machines for cutting, punching, and bending.

• Teach workers to find and report problems.

• Check the first busbar in every group.

• Use tools like thermal cameras and thickness testers.

Note: Training often and using new tools helps keep your quality high.

Traceability and Data Management

Tracking Materials and Processes

You need to know where each busbar comes from and how it was made. Good tracking lets you follow every batch and every step. If something goes wrong, you can find the problem fast. You can also show that your products are safe. Put barcodes or QR codes on each busbar. Scan these codes at every step, from raw material to the last test. Keep all this information in one place so you can find it easily.

• Put a special code on each busbar.

• Scan the code at every step.

• Save all the data in one system.

Benefits of Suzhou Kiande Data Solutions

Suzhou Kiande has smart data systems for busbar manufacturing. Their system links machines, inspection tools, and software together. You can see where every busbar is at any time. The system tells you if there is a problem. You get reports about quality, speed, and how much material you use. This helps you see patterns and make things better. You also save time during audits because all your records are easy to find.

With Suzhou Kiande’s data system, you get better control, faster fixes, and higher quality products.

Most Busbar Manufacturing problems can be fixed if you pick good materials. Use machines that are very exact and check your work carefully. Automation and new machines help you finish jobs faster and make less mistakes. Suzhou Kiande has good tools and machines for your factory. Train your workers well and check your process often. Always use the right tools for each job to stay ahead.

FAQ

What is the most common cause of busbar failure?

Busbars often fail because of bad materials or weak connections. These problems make busbars get too hot and cause electrical trouble. Always check your materials and connections before you start making busbars.

How can you improve busbar dimensional accuracy?

You can use machines that work by themselves, like Suzhou Kiande’s Busbar Machine. These machines cut, punch, and bend busbars very exactly. Automation helps stop mistakes and keeps every busbar the right size.

Why does busbar insulation break down?

Insulation can break from heat, water, or getting old. Dust and oil can also hurt insulation. You should look at insulation often and change it if you see cracks or damage.

How do you prevent corrosion on busbars?

Keep busbars dry and clean to stop rust. Use coatings to protect them and store them in safe places. For outside, pick stainless steel or use special joint compounds.

What tools help with busbar quality control?

You can use CNC machines, digital templates, and thermal cameras. These tools help you find mistakes early. Automated inspection systems from Suzhou Kiande also make quality checks better.

How do you track busbar production data?

You can use barcodes or QR codes to track busbars. Scan each busbar at every step. Suzhou Kiande’s data solutions let you see all your records in one place.

What are the benefits of using Suzhou Kiande equipment?

Suzhou Kiande equipment gives you very exact work, fast jobs, and strong data tracking. You save time, make fewer mistakes, and get better products.
