Complete Guide to Busduct Production Lines and Equipment

You work in a place where quick and safe electrical work is important. A busduct production line changes how you put together power systems. Suzhou Kiande’s smart solutions help you use machines to do the job faster. This can cut installation time by half. It also makes things safer and helps you work better. The line has a modular design and fits in easily. This lets you change things fast and keep your facility running well.

Key Takeaways

• A busduct production line helps make electrical power systems faster and safer.

• Suzhou Kiande uses automation to make more products, up to 45% more, and setup is 87% quicker.

• The modular design lets you change or add parts easily as your business grows.

• Using good materials like copper and aluminum makes power flow strong and efficient.

• Checking quality often and following rules like ISO 9001 and IEC 61439 keeps things safe and reliable.

• Automation lowers labor costs and stops many human mistakes, so products are better.

• Good insulation and sealing keep busduct systems safe from damage and make them safer.

• Watching and tracking data in real time helps find slow spots, so work goes smoothly.

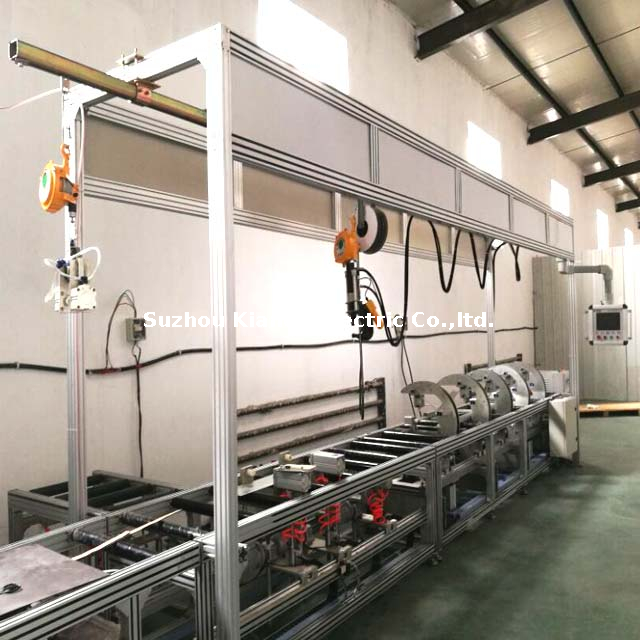

Busduct Production Line Overview

What Is a Busduct Production Line?

A busduct production line is a system that helps you make bus duct systems for electrical power. Machines and automation make busbar production line jobs easier and faster. You pick materials like copper or aluminum. Then, you shape them into bus duct pieces. The line controls each step so your results stay the same. You use this system to make bus duct products for factories, big buildings, and power plants.

You follow simple steps in the busduct production line. Each part has a job and helps you keep quality high. The table below lists the main steps and what you do at each one:

You use these steps to make sure your bus duct is safe and works well. Each part helps you avoid mistakes and keeps your work smooth.

Suzhou Kiande’s Role in Busduct Automation

Suzhou Kiande gives you smart machines for your busbar production line. Their technology helps you make bus ducts faster and set up quicker. Kiande’s machines let you control every step, from picking materials to sending out the finished product. You use barcode scanning and ERP integration to run your line with less hand work.

You see big changes when you use Suzhou Kiande’s automation. The table below shows how your busbar production line gets better:

You notice your bus duct output goes up and setup time goes down. Kiande’s automation helps you focus on quality and speed. You use their modular systems to make different bus duct types and change your line when you need to.

Key Features and Benefits

You get many good things when you use a busduct production line from Suzhou Kiande. The system is flexible and lets you make custom bus duct products. You control the busbar production line with touch screens and networked PLCs. You use barcode scanning to find bus duct types and change machine settings by itself.

• You save money on workers because the line needs little hand work.

• You make better products with careful assembly and fixing.

• You run your process with ERP integration and automatic checks.

• You waste less material and keep your line working well.

• You can make both two-piece and four-piece bus duct types.

Tip: You can make your busbar production line bigger as your business grows. Suzhou Kiande’s modular design lets you add new parts or change the setup without stopping your work.

You use these features to meet tough industry rules and give customers good bus duct systems. The line helps you stay ahead and answer customer needs fast.

Bus Duct System and Applications

Bus Duct System Basics

A bus duct system helps move electricity in your building. The bus duct connects right to the main power source. Flat copper or aluminum busbars carry the electricity with little loss. A strong metal box covers the busbars to keep them safe. Good insulation stops accidents and makes the system work better. You can join modular sections together easily. This lets you change or grow your system without much work. Tap-off points let you add new machines or change the setup fast. The design handles heat well, so you can use more power than with cables. You get steady electricity, less waste, and can change things later.

• Hook up the bus duct to your main power.

• Use flat busbars to move electricity well.

• Cover busbars with a strong box and insulation.

• Connect modular parts for easy setup and changes.

• Add tap-off points for flexible power use.

• Control heat for more power flow.

Main Applications and Industries

Bus duct systems are used in many places that need strong power. Data centers use bus duct for lots of servers and high power needs. Heavy industry uses bus duct for main power with strong short-circuit protection. Tall buildings use bus duct for trunk power and low resistance. Power plants use bus duct for backup power and steady electricity.

Bus duct helps these places get better power and keeps things running well.

Advantages Over Traditional Wiring

Bus duct gives you many benefits over regular cable wiring. The modular design lets you change or grow your system easily. You can plug in a tap-off box for new machines without new cables. Setup is faster and cleaner since you do not need cable trays or lots of workers. The closed system keeps out heat, water, and stops accidents. You can change your power setup fast and add more power when needed. You can move power spots in minutes without an electrician.

• Power delivery is as good as regular systems.

• Change your setup with less work and money.

• Make quick and easy changes to your power layout.

• Add more power when you need it.

• Move power spots fast and safely.

Note: Bus duct makes your power system safer, faster, and easier to change. You meet new needs and keep your building working well.

Busbar Equipment and Technology

Essential Busbar Machines

You need special machines to make good bus duct systems. In busbar manufacturing, you use different machines to shape copper and aluminum. These machines help you make strong parts for power distribution. Each machine helps you control how you make bus duct. This keeps your production line working well.

Cutting and Punching Machines

You start with cutting machines. These machines cut copper and aluminum busbar. You can pick manual, hydraulic, or CNC cutting machines. The type depends on what you need. Cutting machines help you make each busbar the right size. After cutting, you use punching machines. Punching machines make holes in copper busbar and aluminum busbar. These holes are for connections and mounting. You can use manual or CNC punching machines. The choice depends on how fast you want to work. Punching machines get every busbar ready for assembly and power distribution.

Bending and Assembly Tools

You use bending machines to shape copper and aluminum busbar. Bending is important in busbar manufacturing. It helps you fit bus duct into small spaces or around things. Some machines do simple bends. Others make complex shapes. Assembly tools help you put bus duct sections together. These tools make sure copper busbar and aluminum busbar fit tight and safe. Good assembly keeps your power system strong and reliable.

Automation and Integration by Suzhou Kiande

Suzhou Kiande gives you smart automation for busbar manufacturing. Their machines connect with ERP systems. They use barcode scanning to track copper busbar and aluminum busbar. You get real-time data on your bus duct production. The table below shows how these features help you manage your line:

You control your busbar equipment with touch screens and networked PLCs. Barcode scanning lets you switch between copper busbar and aluminum busbar types fast. You do not have to stop your line. This automation keeps your bus duct fabrication quick and correct.

Customization and Flexibility

You can change your busbar equipment for any bus duct project. Flexible designs let you bend or shape copper busbar and aluminum busbar for special needs. You can order custom shapes, like odd bends or tricky profiles. This helps with cooling or fitting into unique spaces. Suzhou Kiande’s team helps you pick the right structure, thickness, material, and surface treatment. This support makes your bus duct fabrication easy and dependable.

Tip: Custom busbar equipment lets you do big or small jobs. You can switch between copper and aluminum busbar types. You can also change your setup for different power distribution projects.

You get the best results when your equipment fits your needs. Suzhou Kiande’s modular design lets you add new machines or change your line as you grow. This flexibility keeps your bus duct manufacturing ready for anything.

Busduct Production Process

Raw Material Selection

You begin by picking the right materials for your busduct. This step is very important for making a good bus duct. You choose copper or aluminum for the busbar. These metals carry electricity well and do not waste much power. Copper is strong and lets electricity flow easily. Aluminum is lighter and costs less money. You also pick stainless steel or other strong metals for the outside housing. These choices help keep your bus duct safe and working for a long time.

You think about how you will use the bus duct before you pick the material. If you need to move a lot of power, copper is the best choice. If you want to save money or do not need as much power, aluminum works well. You make sure every busbar is good for electrical connections and can hold up under stress. Using good materials helps your busduct production line make strong and safe products every time.

Cutting, Punching, and Bending

After you pick your materials, you start the next step. You use special machines to cut copper and aluminum busbar to the right size. Each piece must be the right length for your power system. You use CNC or hydraulic cutting machines to do this job fast and well.

Next, you punch holes in the busbar. These holes let you connect different parts and mount the bus duct. You use punching machines that work with both copper and aluminum. The holes must be in the right place to keep the busbar strong and ready to use.

After punching, you bend the busbar. You use bending machines to shape copper and aluminum busbar. You can make straight lines, angles, or even tricky shapes. This helps the bus duct fit in small spaces or go around things. You check each piece to make sure it matches the plan and will be safe for power.

Insulation and Assembly

After shaping the busbar, you add insulation and put everything together. This step keeps your bus duct safe from electrical problems. You use air gaps and solid materials to cover the copper and aluminum busbar. These materials stop sparks and short circuits. You also use halogen-free epoxy resins. These resins do not make dangerous smoke if there is a fire, so your building is safer.

You put each part of the bus duct together carefully. Good insulation keeps the wires apart and protects people who work on the system. You test each bus duct with a 1000V DC megger check. This test makes sure there are no leaks before you send out the product.

You finish by checking every connection and making sure the busbar fits tight in the housing. Good insulation and careful work give you a safe and strong bus duct for any power project.

Encapsulation and Sealing

You protect your bus duct from water, dust, and damage by using strong encapsulation and sealing methods. This step keeps your busbar system safe and reliable for power distribution. You use special designs and materials to make sure your bus duct works well in tough places.

You start by making sure every joint in your bus duct fits tight. You use high-quality elastomeric gaskets. These gaskets stop water and dust from getting inside your busbar. You place them at every connection point. This keeps your copper busbar safe and helps your power system last longer.

You use epoxy resin casting to cover the electrical parts of your bus duct. Epoxy resin forms a solid barrier around your copper busbar. This barrier blocks water and keeps out dirt. You use this method for both indoor and outdoor bus duct systems. Epoxy resin also protects your busbar from bumps and hits during production or installation.

You check the IP rating of your bus duct. A high IP rating, like IP67, means your busbar can handle dust and water. You use this rating to pick the right bus duct for outdoor power distribution. You want your copper busbar to stay dry and clean, even in rain or dust storms.

Note: Good encapsulation and sealing help your bus duct pass safety tests. You lower the risk of short circuits and keep your power system running without problems.

You follow these steps in your production line to make sure every copper busbar and bus duct section is ready for real-world use. You keep your power distribution safe and strong by using the best sealing and encapsulation methods.

Investment and Cost Analysis

Initial Setup Costs

Equipment and Facility

First, you look at what you need to buy. You need machines for busbar cutting, punching, and bending. You also need tools to put bus duct sections together. Your building must have enough room for all the lines and storage. You plan your money to pay for automation systems. Suzhou Kiande has modular solutions for your goals. You can spend more as your business gets bigger.

Installation and Commissioning

You must add setup and testing costs to your plan. You pay for putting in machines, checking them, and training workers. Suzhou Kiande’s team helps you set up and test your equipment. You check each machine to make sure it works right. You make sure your line is safe and ready to use. You want your production to start without problems.

Operational Costs

Labor and Maintenance

You keep track of labor and maintenance costs. Automation means you need fewer workers. You hire less people for busbar and bus duct jobs. You plan regular checks to keep machines working well. Suzhou Kiande’s systems help lower downtime and make power more reliable. You watch maintenance costs so you do not get surprised.

Utilities and Consumables

You also count the cost of electricity, water, and cooling. Busbar machines use power for cutting and bending. You buy things like lubricants, insulation, and packaging. You watch how much you use to save money. Suzhou Kiande’s machines help you use less power and materials.

ROI and Cost-Saving Strategies

You get more ROI by making smart choices. Automation lowers labor and running costs. You use ERP to track busbar work and manage money. You waste less material when making bus duct. You can grow your lines as you get more orders. Suzhou Kiande’s modular design lets you add more without spending a lot.

Tip: You can get better ROI by using automated busbar and bus duct systems. You spend less on workers, repairs, and power. You keep your factory running well and save money.

You check your costs and plans often. You change your budget to fit what you need. You use Suzhou Kiande’s ideas to stay ahead in power distribution.

Quality Assurance and Standards

Key Quality Control Points

You need strong quality checks in your bus duct production line. You start by looking at the raw materials. You check copper and aluminum busbar to see if they carry electricity well. You use special tests to make sure every busbar is Grade A quality. You follow ISO 9001:2015 Clause 8.4 and ISO 10007 rules. These rules help keep your bus duct safe from bad materials. This stops overheating and electrical problems. You check each busbar to make sure the metal is the same all the way through. You use many checks to find problems early. This keeps your power system working well.

You test bus duct sections at every step. You use insulation checks and megger tests. You measure air gaps and creepage distances. You make sure each busbar fits tight in its housing. You use torque tools to make bolts and connections tight. You look for rust and surface problems. You use sleeved aluminum busbar and tin plated copper busbar. You follow IEC rules for spacing. You keep your bus duct safe and ready to use.

Certifications and Compliance

You need certificates to show your bus duct meets the rules. You follow ISO and IEC rules for making busbar and bus duct. You use ISO 9001 for quality checks. You test each busbar for strength and safety. You use IEC 61439 for low-voltage bus duct systems. You test your busbar for insulation and surface finish. You use UL and CE marks to show your bus duct is safe everywhere. You keep records for every bus duct batch. You use barcode scanning to track busbar types and dates. You show customers your bus duct is safe and ready to use.

Tip: You keep your bus duct line ready for checks. You use machines to track every busbar and power section.

Common Issues and Prevention

You see some common problems in bus duct production. You stop these problems with good habits. You check each busbar for loose bolts and connections. You use torque tools and check them often. You protect copper busbar from rust with tin plating and coatings. You use sleeved aluminum busbar to stop insulation problems. You follow IEC rules for spacing. You use flexible connectors to handle stress. You support each bus duct section to stop bending. You keep enough air and creepage distance to stop short circuits and flashover. You make sure the plating is thick enough. You handle busbar carefully when you install it.

• Loose bolts or connections: Use torque tools and check often.

• Rust and oxidation: Use tin plated copper busbar and coatings.

• Insulation problems: Use sleeved aluminum busbar and follow IEC rules.

• Mechanical stress: Use flexible connectors and support bus duct sections.

• Short circuit and flashover: Keep enough air and creepage distance.

• Surface problems: Make sure plating is thick and handle busbar with care.

You use these steps to keep your bus duct and busbar safe. You make your power system strong and dependable. You test at every step to find problems early. You keep your bus duct ready for any power job.

Troubleshooting and Maintenance

Equipment Malfunctions

Sometimes, your bus duct production line has equipment problems. These issues can make your work slow and affect your power system. Sizing failures in tap boxes happen often. If tap boxes are too small, your busbar cannot handle heavy loads. You need special units that are made for tough jobs like robotic welding. Forensic engineering helps you find out why things fail. You make custom fixes to handle electrical stress and keep your line steady.

Overheating and thermal trips are also common. Generic tap boxes may not handle harmonic loads well. You should check your bus duct with a full load profile and thermal imaging. Custom tap boxes with bigger copper lugs and better airflow can lower temperatures by thirty percent. This keeps your busbar and bus duct safe and working right.

• Tap boxes that are too small

• Overheating and thermal trips

• Electrical stress from heavy loads

• Moisture getting in and causing insulation problems

Traditional non-segregated-phase bus duct failures happen a lot and can be very bad. Water from condensation or leaks makes insulation break down and track. Regular checks and maintenance stop these problems.

Production Bottlenecks

You might see bottlenecks in your bus duct production line. These slowdowns happen when machines do not work together well. If your cutting machine is faster than your punching machine, you get a pile-up. You need to match the speed of each machine. Check your workflow and change settings to keep your power process smooth.

Automation can help you fix bottlenecks. Suzhou Kiande’s systems let you track cycle times and output. You watch each step and find delays early. If you see a slowdown, add more machines or change your layout. This keeps your bus duct production moving and saves time.

• Machines running at different speeds

• Workflow not balanced

• Delays in assembly or testing

• No real-time monitoring

Tip: Use real-time data tracking to find bottlenecks before they hurt your power system.

Quality Issues and Solutions

You need to fix quality issues to keep your bus duct and busbar safe. Loose connections can cause power loss or overheating. Use torque tools to tighten bolts and check them often. Rust and oxidation can hurt copper busbar. Use tin plating and coatings to stop these problems. Insulation failures can cause short circuits. Use sleeved aluminum busbar and follow spacing rules.

Test each bus duct section for leaks and surface problems. Use megger checks and look for defects. If you find a problem, fix it right away. Keep records of every busbar and bus duct batch. Barcode scanning helps you track types and dates. Make sure your power system meets all safety standards.

• Loose connections: Tighten with torque tools

• Rust and oxidation: Use tin plating and coatings

• Insulation failures: Apply sleeved aluminum busbar

• Surface defects: Inspect and fix before delivery

Note: Regular maintenance and testing keep your bus duct and busbar ready for any power job.

You make your work faster and better with the right busduct production line. Suzhou Kiande gives you machines that do jobs by themselves. You can change the machines to fit what you need. The line helps you use less material and get good results every time. The table below shows how Kiande’s features help you:

You need to think about both the machines and the money before you buy. Talk to Suzhou Kiande to find the best setup for your work.

FAQ

What types of busbars can you process on a Suzhou Kiande production line?

You can make two-piece and four-piece busbar setups. The system works with copper and aluminum. This means you can do many kinds of projects.

Is the busduct production line fully automated?

Yes, you need very little hand work to run it. The system uses PLCs, barcode scanning, and ERP integration. You get fast work and good quality every time.

Can you customize the production line for special requirements?

You can ask for custom sizes, layouts, and features. Suzhou Kiande’s modular design lets you add or change machines as your business grows.

Tip: Custom setups help you do special jobs and stay ahead.

How does barcode scanning help your production?

Barcode scanning helps you find busbar types fast. The system changes machine settings by itself. You save time and make fewer mistakes.

What certifications do Suzhou Kiande’s solutions support?

You can meet ISO 9001, IEC 61439, UL, and CE rules. The equipment helps you pass strict quality and safety checks for global markets.

How do you maintain the equipment for best results?

You should check and clean the machines often. Follow Suzhou Kiande’s maintenance guide. Quick fixes and good care keep your line working well.
