BUSBAR FABRICATION

MACHINE

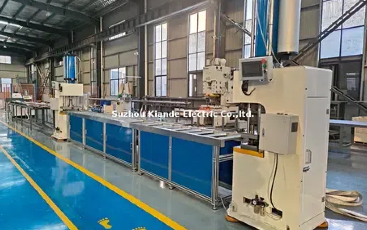

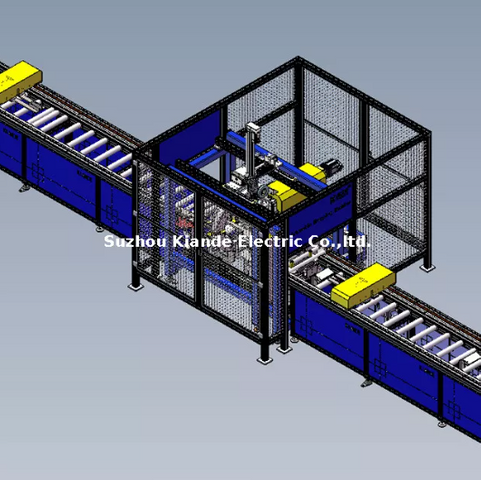

This busduct assembly line is customized for busbar housing profile calmp and rotator, make it easy for riveting and bolting. Saving labor cost and improve efficency of the production.

Click The Button Below

Quickly Find The Information About busbar machine you want

What Is Busbar Machine？
Main Busbar Machine Show
Busbar Accessories You Can Choose
Frequently Asked Questions About Busbar Machine
Busbar Machine Solution
Why Choose Kiande
Busbar Machine Service
Busbar Machine R & D Design
Latest News About Busbar Machine
Busbar Machine Patent Certificate

Main Busbar Machine Show

A variety of products are available for you to choose

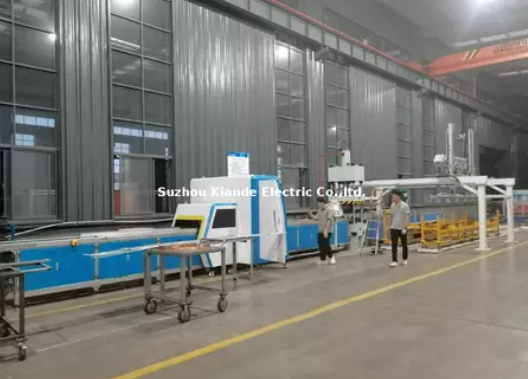

BUSBAR ASSEMBLY MACHINE

BUSBAR INSPECTION MACHINE

BUSBAR MYLAR FORMING MACHINE

DIGITAL PUNCHING MACHINE

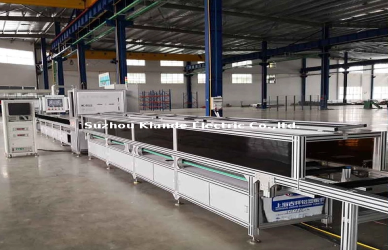

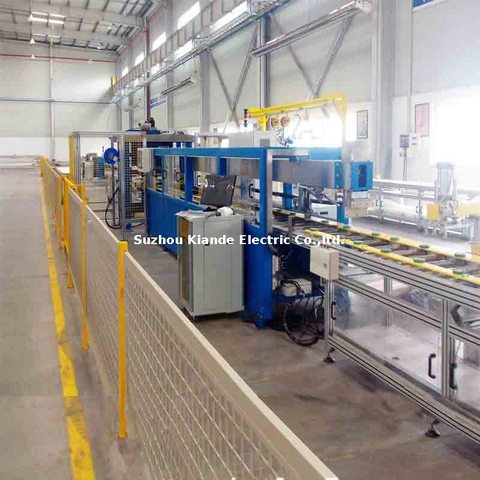

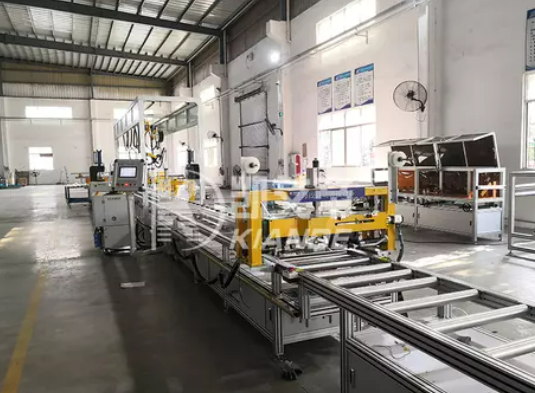

busbar assembly machine

Automatic assembly line is customized according to clients’ busbar type. It can achieve unmanned operation no matter the busbar is fixed by rivet or bolt. Currently the busbar type is mainly divided into two types: two-piece type and four-piece type.

By automatic assembly and fixing, the automatic assembly machine will help to reduce manpower and improve the product quality and working efficiency. The working principle is to recognize the busbar type and adjust all the parameters in the machine automatically by scanning the bar code. By module interconnection among PLC, network, touch screen and IPC etc., automatic assembly machine can also achieve information communication with ERP, automatic inspection machine and other related machines.

Besides that, automatic assembly machine has self-checking functions by self diagnosing each input and output signal to avoid failures. Furthermore, data statistics for machine’s OEE (comprehensive utilization rate) is helpful for future data analysis.

more information just click here

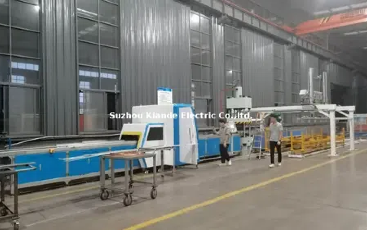

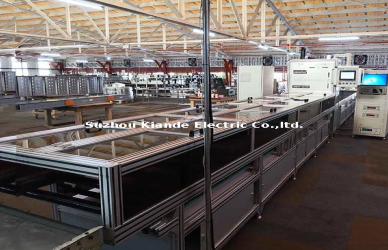

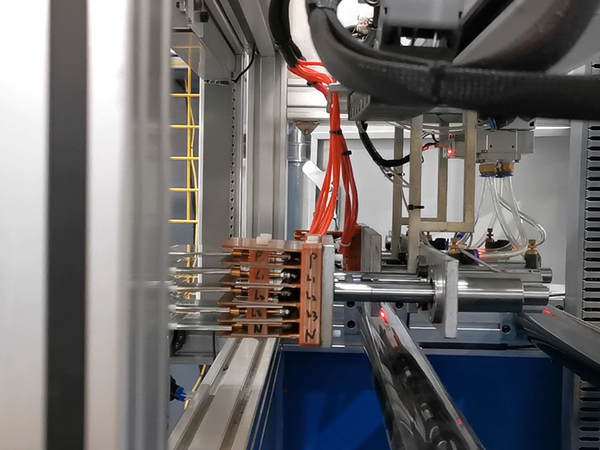

busbar inspection machine

Automatic inspection machine is composed of three parts, feeding positioning station, inspection station and discharge station.

When the busbar enters the feeding position, the control system will select the right testing fixture to start testing from the information identified by bar code or previous assembly line.

Three tests will be performed including HV withstanding test, insulation resistance test and grounding test. After test is finished, testing report will be generated. This report can be saved, printed on site and recorded remotely. Its format can be set according to customer’s requirements.

Automatic inspection machine is mainly used for batch inspecting on the straight busbar. Elbow busbar type shall be tested on manual inspection machine.

more information just click here

busbar mylar forming machine

Mylar film forming machine is to form the polyester film used in compact busbar by heating workmanship.

The working procedure includes feeding, pre-forming, heating, forming, cutting, discharging and etc.. This machine can realize unmanned operation. Operator only needs to input the required data on the touch screen such as conductor width, heating temperature, cutting length and formed quantity and etc. before machine starts working.

The key advantages of this machine are that formed round corners are smooth, metered blanking can save materials and labor cost is saved as one operator can control several machines in the same time.

more information just click here

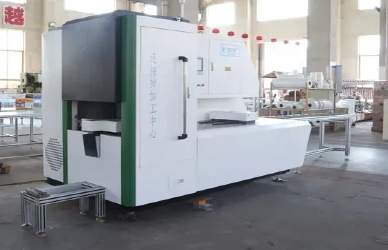

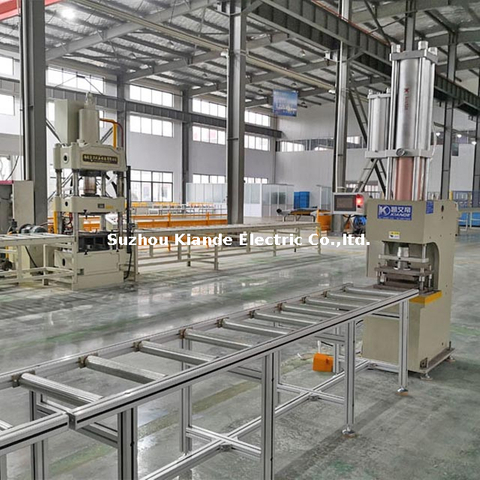

digital punching machine

Digital bus bar punching machine is used to punch the two ends of busbar in one time to guarantee parallelism between busbar profile and conductor.

This parallelism ensures the reliable connection between conductor and joint which can control joint temperature rising. Key point is that machine can adjust the rebound coefficient according to conductor’s material and width.

Rebound coefficient varies by bending or different conductor width and this kind of adjustment can guarantee the parallelism.

more information just click here

Choose the busbar Accessories You Need

Here are your most concerned questions and answers before buying the busway machine

Busbar Machine Solution
Here is the busduct customer case show

One of our busbar clients was planned to develop LV busbar. They signed the design contract with one company and came to us for machines. When our engineer studied the design and found that one data of their busbar type is not suitable. We recommend the suitable data to them and after calculation, they accepted. According to their production volume, this helps them to save at least 1 million dollars per year on raw material.

COMPANY PROFILE +

Why Choose Kiande？

Company covers R&D dept., engineering design dept., production dept., sales dept. and after-sales service dept.. Our mission is to provide the solution programs for improvement on production efficiency, quality, cost and data. our main products have cnc busbar machine, hydraulic busbar bending machine, copper busbar machine,etc.

Specialized in Automatic Production Equipment

Mainly in BusbarFabrication Machine

Mainly in Switchgear Cabinet Production Equipment

Mainly in Imp. & Exp. Business Related to Busbar

Specialized in Busbar Accessories

Busbar Machine Patent Certificate

What are the advantages of our busbar machine?

Automatic busbar assembly line help to reduce manpower and improve the product quality and working efficiency.

The working principle is to recognize the busbar type and adjust all the parameters in the machine automatically by scanning the bar code. By module interconnection among PLC, network, touch screen and IPC etc., automatic assembly machine can also achieve information communication with ERP, automatic inspection machine and other related machines.It has self-checking functions by self diagnosing each input and output signal to avoid failures.

Furthermore, data statistics for machine's OEE (comprehensive utilization rate) is helpful for future data analysis. It can be customized for compact busduct, resin busbar.

Busbar Machine R & D Design

Jun21,2016
Sep23,2016
Jul23,2018

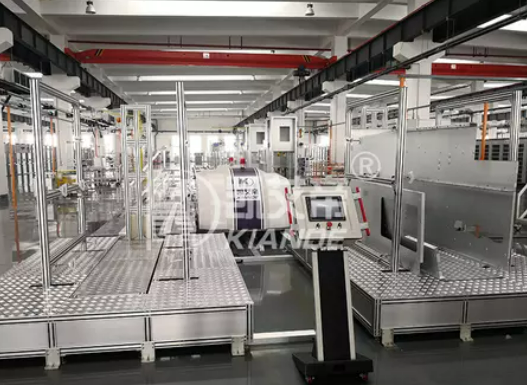

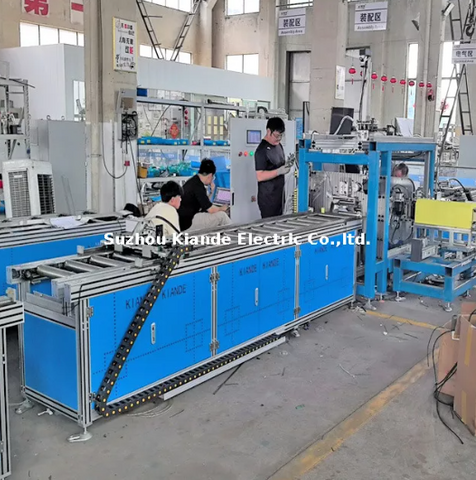

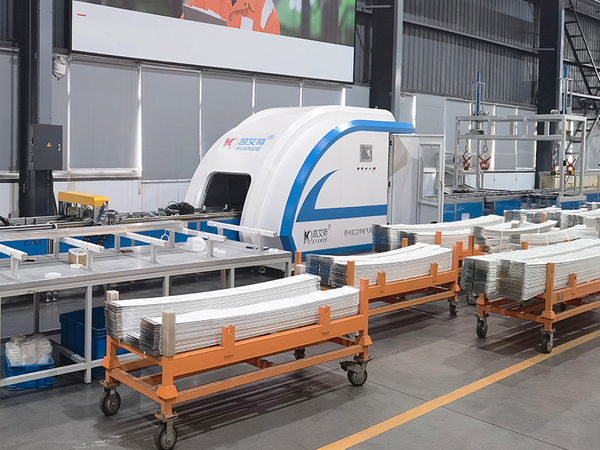

SEMI AUTOMATIC ASSEMBLY LINE
Our client required us to provide a solution to make the busduct housing more easy to assemble. We designed semi automatic assembly line which is economical and can clamp the busduct profile and make it easy to assembly and improve the efficiency and keep quality stable.
BUSBAR PACKING MACHINE
Our client required us to provide a solution to keep the busduct away from dust and moisture during transportation, we adopt bearing that rotates automatically, which is more stable and low noise and maintenance free. keep the busway dry and tidy.
BUSBAR INSPECTION MACHINE
Our client required us to provide a solution to testing the high voltage withstanding and insulation testing. We designed automatic testing machine, which is more stable and safe and testing result can be save and format can be set accordint to customer's requirements.
