In the high-precision world of electrical component manufacturing, particularly busbar systems, every detail matters. Busbars are the unsung heroes of power distribution networks—flat strips of conductive material that carry large currents efficiently within switchgear, panel boards, and distribution systems. However, their handling, storage, and feeding into production machines often present logistical and operational challenges. Enter the Busbar Storage Loading System—a cornerstone innovation that turns chaotic workflows into streamlined manufacturing pipelines.
While many busbar production facilities focus on CNC processing, punching, or bending technologies, the importance of material handling is often underestimated. Yet without a robust, intelligent, and safe loading system in place, the efficiency of these high-end machines is compromised. In this article, we’ll explore why every busbar production facility—large or small—needs a Busbar Storage Loading System, backed by logic, operational benefits, and essential FAQs.

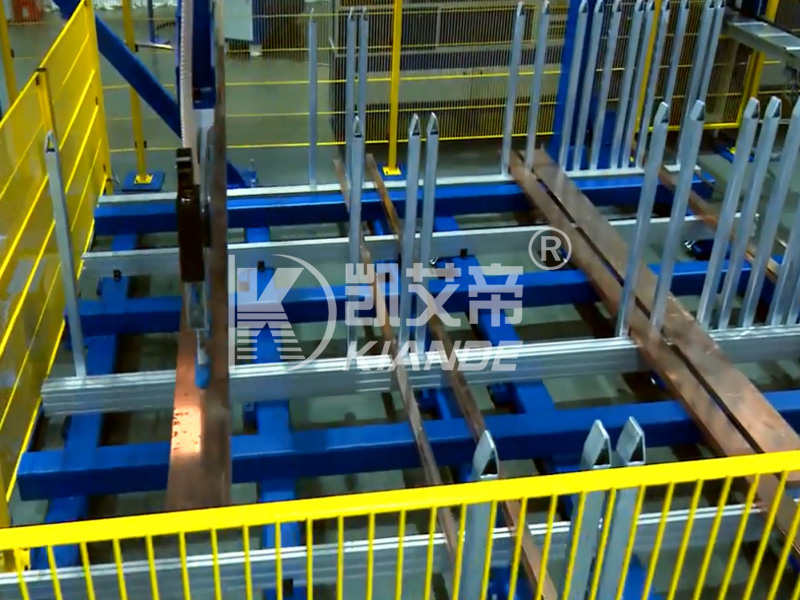

A Busbar Storage Loading System is an integrated solution designed to store and automatically load busbars into production lines such as cutting, punching, or bending machines. It eliminates manual handling, reduces downtime, and protects delicate copper or aluminum surfaces from scratches or deformation.
These systems generally comprise:
Vertical or horizontal storage racks
Automatic feeding arms or shuttles
Lifting and aligning mechanisms
Sensors and PLC-controlled systems
The process starts with manual or robotic placement of raw busbar material into the storage rack. The system then automatically identifies the type, size, and location of the busbar and feeds it into the machine using synchronized movement. This hands-free operation reduces errors and operator fatigue while increasing productivity and safety.
Manual loading of busbars is a labor-intensive and time-consuming process. Operators must lift heavy conductive bars, often requiring multiple people or even cranes, which interrupts the workflow. The Busbar Storage Loading System automates these steps, ensuring seamless and continuous material feeding into production lines. This dramatically boosts machine utilization rates and allows personnel to focus on quality control and programming rather than physical labor.
Copper and aluminum busbars are expensive and prone to surface scratches or bending during manual handling. Automated loading ensures gentle yet precise movement, minimizing the risk of costly defects or reworks. Sensors and mechanical stops keep each bar aligned, and real-time feedback systems alert operators to irregularities before issues cascade through production.
Workplace safety regulations are increasingly stringent. Lifting heavy busbars without proper tools can lead to injuries, legal issues, and high insurance costs. The Busbar Storage Loading System addresses these concerns by fully automating the process, complying with ergonomic standards and reducing physical strain on workers.
In addition, modern factories aim for lean production—a philosophy that prioritizes minimizing waste and maximizing value. This system supports lean practices by cutting unnecessary movement and reducing non-value-added activities such as material fetching and loading.
| Feature | Description |
|---|---|
| Modular Rack Design | Adjustable for various busbar sizes and materials |
| Touchscreen Interface | Simplified programming and diagnostics |
| Sensor Integration | Real-time monitoring of bar positions and types |
| Automated Lifting Arm | Precise pick-and-place mechanism with soft gripping |
| Safety Shields and Sensors | Emergency stop functions and obstruction detection |
| Compatibility | Interfaces smoothly with punching, bending, and cutting machines |
These systems are customizable depending on production scale and types of busbars handled. Whether for copper, aluminum, or laminated bars, the goal remains the same: automated precision and reliable performance.
Yes. Most systems are engineered to accommodate a wide range of widths, thicknesses, and lengths. Automated calibration features adjust for different sizes on the fly.
Absolutely. These systems are designed with modular architecture, ensuring seamless compatibility with various brands of CNC punching, cutting, and bending machines.
Training is minimal. Operators can master the system through a half-day workshop, thanks to intuitive touchscreens and guided diagnostics.
Depending on production volume, ROI typically occurs within 6 to 12 months, especially when factoring in labor savings, reduced material waste, and increased machine uptime.
Not at all. Preventive maintenance involves regular lubrication and sensor calibration. Most systems also come with diagnostic alerts and remote support features.
Investing in a Busbar Storage Loading System is more than an operational upgrade—it’s a strategic move toward smart manufacturing, where automation, safety, and scalability drive success. As the electrical industry continues to evolve and demand for precision busbars grows, facilities without efficient material handling systems risk falling behind.
Whether you’re running a medium-sized panel board shop or a large-scale switchgear production unit, incorporating this system ensures that your workflow remains fluid, your machines perform at full capacity, and your operators work safely and effectively.
If you're aiming to improve productivity, reduce operating costs, and maintain the highest quality standards, then a Busbar Storage Loading System isn't just an option—it’s a necessity.
