Do you know that busbars are crucial for safe electricity transmission? Without proper insulation, they pose serious risks such as electrical faults and fires. That's where the Automatic Busbar Wrapping Machine comes in.
In this article, we will explore the key functions and benefits of this machine. You will learn how it revolutionizes the insulation process, making it more efficient and reliable for industries dependent on electrical systems.

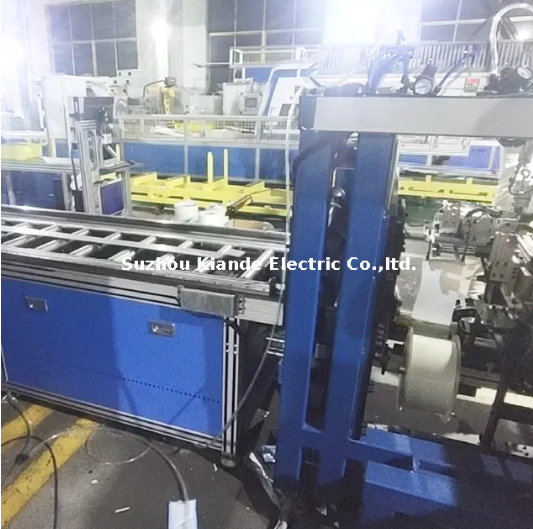

An automatic busbar wrapping machine is an advanced, fully automated device that wraps insulation materials, such as polyester films, around the surface of busbars. These busbars are typically made of copper or aluminum and are used for distributing electrical power. Traditionally, insulation was applied manually, but with technological advancements, automatic machines have replaced manual labor. The automatic busbar wrapping machine brings high efficiency, precision, and consistency to the insulation process.
The primary purpose of the machine is to provide high-quality insulation, improve safety, and increase production speed. It is designed to cater to a variety of busbar sizes and insulation requirements, making it an indispensable tool for industries that rely on efficient power distribution systems.
| Feature | Description | Advantage | Additional Information |
|---|---|---|---|
| Fast Winding Method | Utilizes a rapid winding technique with polyester film | Increases efficiency and reduces production time | Ideal for high-volume production |
| Adjustable Wrapping Speed | Customizable wrapping speed based on busbar size and insulation material | Tailors to different customer requirements and busbar specifications | Can adjust to different material types (e.g., polyester film) |
| Fully Automated Process | Includes busbar feeding, positioning, clamping, insulation, cutting, and unloading | No human intervention needed, reducing error and increasing efficiency | Works continuously with minimal supervision |
| Coating Speed and Tension Control | Servo motors control the speed and tension of wrapping materials | Ensures even wrapping and prevents defects like uneven insulation | Automatic tension adjustment based on material type |
| Multiple Busbar Sizes Supported | Adapts to various busbar sizes up to 6m in length | Flexible and adaptable to different production needs | Supports various shapes and sizes |
| Precision Control | High-precision control over speed, tension, and material application | Ensures uniform insulation for higher safety and reliability | Helps meet strict industry standards for insulation quality |
One of the standout features of the automatic busbar wrapping machine is its fast winding method. The machine uses a rapid winding technique with polyester film or other suitable insulation materials to cover the busbar surface. This increases the efficiency of the wrapping process, allowing the machine to handle large volumes of busbars in less time compared to traditional manual methods. The fast winding method significantly reduces production time and helps meet high-volume manufacturing needs.
The automatic busbar wrapping machine offers the flexibility to adjust the wrapping speed according to specific production requirements. Depending on the type and size of the busbar, the machine’s wrapping speed can be tailored to ensure proper coverage. The ability to adjust the speed allows the machine to accommodate different customer specifications, ensuring that the insulation material is applied precisely without wasting time or material.
The automatic busbar wrapping machine is designed for fully automated operation. The machine handles the entire process without the need for human intervention, from feeding the busbar into the system to the final unloading of the insulated product. The process includes busbar positioning, clamping, insulation winding or extrusion, cutting, finishing, and unloading. This automation reduces the risk of human errors, speeds up production, and improves overall product consistency and quality.
Another key feature of the automatic busbar wrapping machine is its precision control. The machine uses servo motors to regulate the speed and tension of the insulation material as it wraps around the busbar. This control ensures that the material is applied evenly and consistently, preventing defects such as overlapping or loose wraps. Proper tension is essential for achieving uniform insulation, which is vital for the busbar’s performance and safety.
The automatic machine also offers high precision and control during the wrapping process. The wrapping speed and tension are automatically adjusted based on the properties of the insulation material, whether it is polyester film or another type of material. This allows the machine to adapt to different materials, ensuring that the insulation is applied correctly every time. The result is a high-quality, durable insulation layer that enhances the busbar’s overall performance.
One of the most significant advantages of the automatic busbar wrapping machine is the dramatic improvement in production efficiency. In traditional manual wrapping processes, workers face limitations related to skill level, physical strength, and the time required for each busbar. These limitations create bottlenecks in production, which can result in delays and reduced output.
By automating the wrapping process, the machine can operate continuously and at a much faster rate. It eliminates the bottlenecks caused by manual labor, resulting in significantly higher production rates and a more streamlined workflow. This makes the machine ideal for industries with large-scale busbar manufacturing requirements, such as power utilities and electrical equipment manufacturers.
The machine’s ability to quickly switch between different busbar sizes and insulation specifications is another major advantage. Using a touchscreen interface, operators can easily adjust parameters such as wrapping speed, tension, and density. This adaptability allows the machine to process various busbar types without requiring lengthy setup changes. Whether the busbar is small, large, or customized, the automatic busbar wrapping machine can handle the task efficiently.
The automatic busbar wrapping machine guarantees that each busbar receives uniform and reliable insulation. Proper insulation is essential for maintaining the electrical safety and performance of busbars, especially in high-voltage systems. Inconsistent insulation can lead to electrical faults, short circuits, or even fires, which pose serious risks in electrical power systems.
By using precision controls and advanced wrapping methods, the machine ensures that the insulation is applied evenly across the entire busbar surface. This consistency is crucial for ensuring that the busbars perform optimally and safely in their electrical applications.
The machine's ability to control the tension and speed of the wrapping process not only improves the insulation quality but also optimizes material usage. By applying the insulation with precision, the machine reduces material waste, which in turn lowers production costs. This is especially important in industries where the cost of raw materials can be high, and reducing waste is essential for maintaining profitability.
An automatic busbar wrapping machine can replace 3-5 skilled workers who would traditionally handle the wrapping process manually. This significant reduction in labor costs allows companies to save a considerable amount of money. For example, with each worker earning an average monthly salary of $6,000, the machine can save companies between $180,000 and $300,000 annually in labor costs. This makes the machine a cost-effective investment that can pay for itself within 2-3 years.
The precise and controlled nature of the wrapping process leads to a reduction in scrap rates and material waste. In manual operations, human errors such as uneven wrapping or improper insulation can lead to faulty products, which must be discarded. The automatic machine eliminates this issue, ensuring that each busbar is wrapped with consistency and precision. As a result, companies can minimize scrap and material waste, improving the overall cost-efficiency of production.
The automatic busbar wrapping machine is capable of processing up to 30 busbars per minute, making it suitable for high-volume manufacturing environments. This high-speed operation makes the machine ideal for large-scale manufacturing environments where speed is crucial to meeting production targets. With its fast wrapping capabilities, the machine helps companies keep up with growing demand and meet tight deadlines.
Each busbar is wrapped precisely and consistently, ensuring uniform insulation across the surface. This high level of precision improves the quality of the insulation and the overall performance of the busbar, ensuring long-term reliability and safety in electrical systems.
The automatic busbar wrapping machine is designed to work with various busbar sizes and lengths, making it highly adaptable to different production requirements. Whether the busbar is a standard size or custom-designed, the machine can accommodate it by simply adjusting the settings. This versatility is essential for manufacturers who produce a wide range of busbars for different electrical applications.
With user-friendly controls and a touchscreen interface, operators can easily adjust the machine’s settings to meet specific production needs. This ease of operation reduces setup times and training requirements, allowing manufacturers to operate the machine efficiently and with minimal downtime.
A dust collection system can be integrated into the machine to ensure a clean working environment. This is particularly important in industries where cleanliness is critical to maintaining product quality. Dust and debris can interfere with the wrapping process and lead to defects in the insulation material. The dust collection system helps maintain a clean and efficient production environment.
The machine can be equipped with an automatic profile loading and unloading table, which streamlines the handling of busbars. This feature automates the loading and unloading process, reducing manual labor and increasing the overall efficiency of the production line.
For enhanced production management, the automatic busbar wrapping machine can be integrated with Manufacturing Execution Systems (MES) or Enterprise Resource Planning (ERP) systems. This integration allows for real-time monitoring of production data, enabling manufacturers to optimize their workflows, track performance, and improve overall efficiency.
| Industry | Application Description | Key Benefits | Example Usage | Busbar Size Compatibility |
|---|---|---|---|---|
| Power Systems | Insulates busbars for high and low voltage switchgear and substations | Enhances safety and efficiency, reduces risk of electrical faults | Used in substations to distribute power to residential areas | Up to 6 meters in length, various cross-sections |
| Renewable Energy | Insulates busbars used in solar and wind energy systems | Protects against fluctuating loads, increases system lifespan | Installed in solar panel systems to ensure safe energy transfer | Small to medium-sized busbars, flexible configurations |
| Industrial Automation | Ensures insulation of busbars in industrial automation systems | Boosts reliability in automated operations, reduces downtime | In motor control centers (MCCs) and conveyor systems | Various sizes for heavy-duty machinery |
| Data Centers | Provides stable insulation for power distribution systems in data centers | Prevents electrical issues, maintains constant uptime | Used for distributing power to servers and networking equipment | Custom-sized busbars to fit server rooms |
| Rail Transport | Insulates busbars for railway electrification and urban rail transit | Ensures efficient power distribution for trains, reduces downtime | Used for powering electric trains and urban transit systems | Large and long busbars required for power transmission |
| Marine and Offshore Platforms | Provides insulation for busbars exposed to harsh marine conditions | Protects against corrosion and electrical faults in salty environments | Installed on offshore platforms to ensure uninterrupted power | Large, robust busbars for marine use |
The automatic busbar wrapping machine ensures that busbars used in high and low voltage switchgear systems are consistently insulated. This insulation is essential for maintaining the safety and reliability of power distribution systems. The machine’s precision ensures that each busbar is wrapped to the required standards, preventing potential electrical hazards.
In substations and power distribution systems, busbars carry significant electrical loads. The automatic machine ensures that each busbar is insulated to the required standards, preventing overheating, short circuits, and other electrical issues that could affect the entire power grid.
The automatic busbar wrapping machine is essential for the efficient operation of solar power systems. It ensures that the busbars used in photovoltaic systems are properly insulated, preventing any potential electrical issues that could affect the system's performance and efficiency.
In wind energy systems, the machine helps ensure that busbars used in energy storage systems are insulated to withstand fluctuating electrical loads. This insulation ensures the integrity and reliability of the entire energy storage system.
The machine is widely used in industrial automation applications where busbars distribute power to various electrical systems. Ensuring proper insulation is crucial in maintaining system efficiency and preventing electrical faults.
For VFDs and MCCs, which are used to control motors and other heavy machinery, the busbar wrapping machine ensures that busbars are properly insulated, minimizing the risk of electrical faults and maximizing system performance.
Data centers require stable and reliable power distribution systems. The machine ensures that the busbars used in these systems are insulated effectively, helping to maintain the performance and safety of critical operations.
In high-performance computing, busbars carry significant electrical loads. The automatic busbar wrapping machine ensures that these busbars are properly insulated, improving system stability and preventing electrical failures.
For railway systems, the automatic busbar wrapping machine ensures that the busbars used in railway electrification systems are insulated to withstand high currents, improving the reliability of the entire railway network.
In urban rail transit systems, the machine ensures that busbars are insulated correctly, helping to improve the safety and efficiency of electric train systems.
In marine environments, busbars are exposed to challenging conditions such as saltwater and humidity. The automatic wrapping machine ensures these busbars are insulated to prevent corrosion and maintain system reliability.
Offshore platforms rely on robust electrical systems. The wrapping machine ensures that busbars are insulated to handle extreme environmental conditions, ensuring safety and longevity in power systems.
The automatic busbar wrapping machine is crucial for industries that need high-quality insulation for their electrical systems. It significantly boosts production efficiency, ensures precise insulation, and reduces operational costs. As technology advances, the use of automatic wrapping machines will expand, enhancing the safety, efficiency, and reliability of electrical systems across various industries.
For businesses seeking reliable solutions, Kiande offers products that provide exceptional value by improving insulation processes and streamlining production workflows. Kiande's machines are designed to meet the evolving demands of modern electrical systems, offering both flexibility and precision.
A: An automatic busbar wrapping machine is used to wrap insulation materials around busbars in electrical systems. It ensures precise insulation, increasing efficiency, reducing labor costs, and improving the safety of power distribution systems.
A: The automatic busbar wrapping machine boosts production efficiency by automating the insulation process, reducing manual labor, and allowing continuous, high-speed operation without interruptions.
A: Key benefits include improved insulation quality, reduced material waste, lower labor costs, and faster production speeds, ensuring reliable and efficient electrical systems.
A: Yes, the machine can be easily adjusted to accommodate various busbar sizes, ensuring flexibility in manufacturing and meeting diverse customer needs.
A: The machine is typically compatible with polyester films and other insulating materials, providing versatile solutions for different busbar insulation requirements.
A: The cost varies depending on the machine's features and specifications, such as automation level and customization options. However, the long-term savings from reduced labor and waste make it a valuable investment.
