In the realm of electrical engineering and power distribution, efficiency and reliability stand as paramount concerns. Busbar machines play a critical role in ensuring these requirements are met. These sophisticated devices transform raw conductive materials into busbars, essential components in electrical panels and switchgear systems. Understanding what a busbar machine is and how it functions provides invaluable insight into modern electrical infrastructure. Among the various equipment used, the busbar machine occupies a central position due to its versatility and efficiency.
Busbar machines are specialized tools designed for processing busbars, which are strips of conductive metal such as copper or aluminum. These machines perform various operations including cutting, punching, bending, and embossing to shape busbars according to specific requirements. By automating these processes, busbar machines enhance precision and reduce manual labor in manufacturing electrical distribution systems.
The evolution of busbar machines mirrors advancements in industrial automation and electrical engineering. Early methods involved manual fabrication, which was time-consuming and prone to errors. With the advent of mechanization in the late 19th and early 20th centuries, busbar processing began to incorporate machinery, improving efficiency. Today, modern busbar machines integrate computer numerical control (CNC) technology, allowing for high precision and customization in mass production.

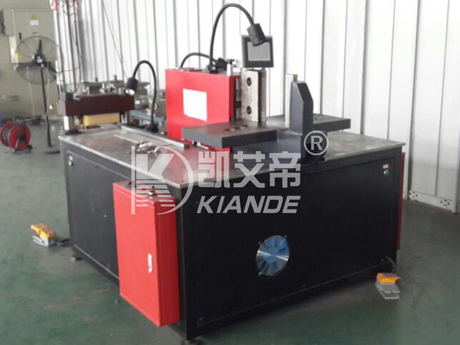

A typical busbar machine comprises several key components:
Cutting Unit: Precisely cuts busbars to specified lengths.
Punching Unit: Creates holes or slots for connections and mounting.
Bending Unit: Shapes busbars to fit into electrical panels.
Control System: Manages machine operations, often using CNC for accuracy.
These units work in tandem to produce busbars that meet exacting industry standards, ensuring compatibility and safety in electrical systems.
Busbar machines come in various types, each designed to perform specific tasks in the busbar fabrication process. Understanding these machines helps in selecting the right equipment for manufacturing needs.
Busbar bending machines specialize in shaping busbars into required angles and curves. Precision in bending is crucial for fitting busbars into confined spaces within electrical panels. These machines employ hydraulic or servo-electric systems to apply consistent force, ensuring uniform bends without damaging the conductive material.
Features of busbar bending machines include:
Adjustable Bending Angles: Allows for a wide range of bend degrees.
CNC Control: Enables programming for repetitive and precise bending operations.
Safety Mechanisms: Protects operators from accidents during operation.
Busbar cutting machines are designed to slice busbars to specific lengths with high accuracy. They utilize robust blades capable of handling various busbar thicknesses and materials. The cutting process must maintain the integrity of the busbar edges to ensure proper connectivity in the final assembly.
Key aspects of busbar cutting machines include:
High Cutting Precision: Achieves exact dimensions for optimal fit.
Versatility: Accommodates different sizes and materials of busbars.
Automation: Enhances productivity through automated feeding and cutting cycles.
Busbar punching machines create holes, slots, or other indentations required for assembly and connectivity. The punching process must be precise to prevent misalignments that could compromise the electrical system's functionality.
Characteristics of busbar punching machines include:
Interchangeable Dies: Provides flexibility for different hole sizes and shapes.
High Force Output: Ensures clean punches even in thick busbars.
Accuracy: Critical for maintaining alignment in assembled systems.
Busbar machines are integral to various industries that require efficient power distribution systems. They are widely used in manufacturing switchgear, panel boards, and other electrical apparatus where busbars serve as the backbone for electrical connectivity.
In switchgear manufacturing, busbar machines produce components that manage, protect, and isolate electrical equipment. Precision in busbar fabrication ensures reliability and safety in power distribution networks, minimizing the risk of electrical failures.
The rise of renewable energy sources like solar and wind power has increased the demand for efficient busbars. Busbar machines facilitate the production of custom busbars that integrate renewable energy systems into existing grids, optimizing energy flow and reducing losses.
Industrial facilities rely on busbars for distributing power to machinery and equipment. Busbar machines enable the creation of complex busbar configurations required in automated production lines, supporting uninterrupted and efficient operations.
The manufacturing process of busbars involves several sequential operations performed by busbar machines. Each step is crucial in ensuring the final product meets technical specifications and safety standards.
Selecting the right material is the foundation of busbar manufacturing. Copper and aluminum are the primary choices due to their excellent electrical conductivity. The decision between them depends on factors like electrical load requirements, cost constraints, and environmental conditions.
| Material | Conductivity | Cost | Weight |
|---|---|---|---|
| Copper | High | Higher | Heavier |
| Aluminum | Moderate | Lower | Lighter |
Once the material is selected, busbar cutting machines slice the metal into required lengths. Precision in this stage ensures that subsequent operations align correctly. Automated cutting machines enhance efficiency by performing rapid and accurate cuts.
After cutting, busbars undergo punching to create necessary holes and slots. This step is essential for mounting and connecting busbars within electrical systems. Busbar punching machines must maintain tight tolerances to ensure proper fit and function.
The final shaping occurs during the bending process. Busbar bending machines apply controlled force to achieve the desired angles. Accuracy here is vital to prevent misalignment in electrical assemblies, which could lead to inefficiencies or hazards.
Employing busbar machines in manufacturing offers numerous benefits that enhance product quality and operational efficiency.
Busbar machines utilize advanced technologies like CNC controls, enabling high-precision operations. This accuracy reduces errors, ensuring that busbars fit correctly and function reliably within electrical systems.
Automation in busbar machines accelerates the fabrication process. Machines can perform repetitive tasks swiftly without fatigue, significantly increasing output compared to manual methods.
By minimizing human involvement in hazardous operations, busbar machines improve workplace safety. Features like protective barriers and emergency stops further safeguard operators.
Manufacturers of busbar machines must consider several factors to meet industry demands and technological advancements.
Integrating the latest technology, such as IoT connectivity and advanced software, enhances machine capabilities. This integration allows for real-time monitoring, predictive maintenance, and improved overall equipment effectiveness (OEE).
Manufacturers should offer customization to cater to diverse industry needs. Providing options for machine configurations, tooling, and software interfaces ensures that clients can tailor equipment to their specific operations.
Robust after-sales support, including training, maintenance services, and spare parts availability, is crucial. It ensures that clients can maintain optimal machine performance and longevity.
The landscape of busbar machine technology continues to evolve, driven by advancements in automation and the increasing demands of modern electrical systems.
Automation remains a dominant trend, with machines becoming more autonomous and interconnected. Industry 4.0 concepts, such as intelligent manufacturing and cyber-physical systems, are being incorporated into busbar machines. This evolution leads to smarter production lines capable of self-optimization and adaptive control.
The development of new conductive materials with enhanced properties influences busbar machine design. Machines must adapt to handle these materials, which may offer better conductivity, flexibility, or durability. Advancements in material science could lead to lighter, more efficient busbars.
Sustainability is increasingly important in manufacturing. Busbar machines are being designed to minimize energy consumption and material waste. Incorporating eco-friendly practices aligns with global efforts to reduce the environmental impact of industrial activities.
Busbar machines are essential in the production of efficient and reliable electrical distribution systems. From cutting and punching to bending, these machines transform raw materials into critical components that power industries and infrastructures. The continuous advancement in busbar machine technology reflects the dynamic nature of electrical engineering, emphasizing precision, efficiency, and innovation. For those involved in electrical manufacturing and engineering, understanding busbar machines is crucial. Exploring options from reputable busbar machine manufacturers can lead to enhanced production capabilities and a competitive edge in the market.
1. What are the main functions of a busbar machine?
A busbar machine performs cutting, punching, and bending operations on busbars. These functions shape busbars to specific dimensions and configurations required in electrical panels and switchgear systems. The machine ensures high precision and efficiency in manufacturing busbars.
2. Why is precision important in busbar fabrication?
Precision is crucial because busbars must fit accurately within electrical systems. Improperly fabricated busbars can lead to poor connectivity, energy losses, or even electrical hazards. Busbar machines provide the accuracy needed to meet stringent industry standards.
3. How do busbar bending machines differ from general bending equipment?
Busbar bending machines are specifically designed to handle the properties of conductive metals like copper and aluminum. They apply precise force to bend busbars without causing fractures or deformities. General bending equipment may not offer the required precision or control for busbar fabrication.
4. What role does CNC technology play in busbar machines?
CNC technology allows busbar machines to operate with high precision and repeatability. It enables the programming of complex operations, reduces manual intervention, and enhances productivity. CNC controls are integral to modern busbar machines for achieving consistent quality.
5. Can busbar machines handle both copper and aluminum materials?
Yes, most busbar machines are designed to process both copper and aluminum busbars. They can be adjusted to accommodate the differing mechanical properties of these metals. Operators may need to change settings or tooling when switching between materials.
6. What safety features are commonly found in busbar machines?
Safety features in busbar machines include protective guards, emergency stop buttons, and sensors that detect operator proximity. These features help prevent accidents by stopping machine operations if a safety risk is detected. Training and proper maintenance further enhance safety.
7. How does automation impact the future of busbar machine manufacturing?
Automation in busbar machine manufacturing leads to increased efficiency, consistency, and flexibility. Advanced automation enables machines to adapt to different production requirements quickly. It also facilitates integration with smart factory systems, aligning with Industry 4.0 initiatives.
