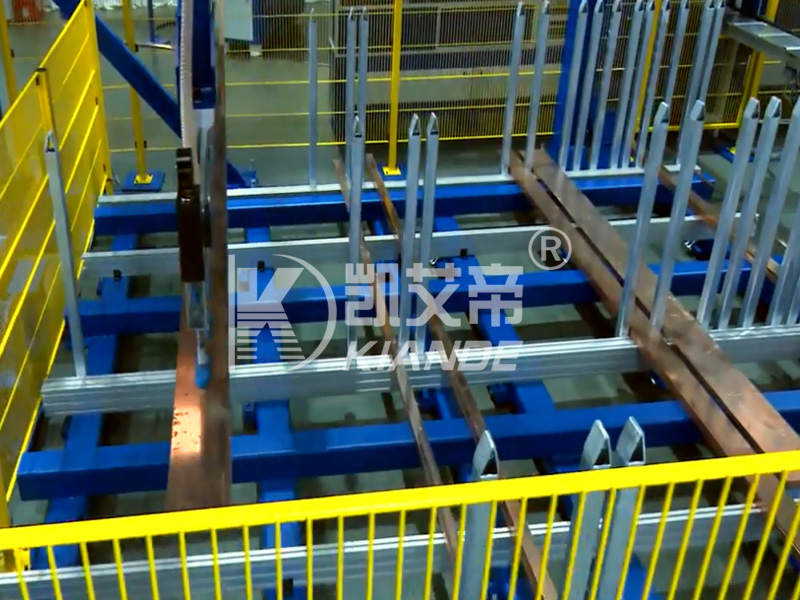

The Busbar Storage Loading System is a highly specialized piece of industrial equipment designed for the organized handling, storing, and loading of processed busbars. Used primarily in automated or semi-automated electrical assembly lines, this system acts as an intelligent bridge between busbar fabrication and downstream assembly or packaging processes. It efficiently manages the intermediate logistics of copper and aluminum busbars, ensuring safe storage and precise positioning for automated pickup or manual transfer.
Unlike traditional manual handling or generic storage carts, the Busbar Storage Loading System is purpose-built. It reduces handling time, minimizes human error, and protects delicate busbar surfaces from damage or deformation. The equipment typically includes modular racks, protective supports, positioning arms, and sometimes an integrated conveyor system. Most importantly, it is designed to seamlessly integrate with CNC punching machines, bending lines, and busbar assembly stations.
This system plays a critical role in ensuring production consistency and meeting the increasingly high standards of electrical distribution equipment manufacturers. In today’s era of precision engineering and mass customization, the need for a reliable, automated busbar storage and loading system has become more essential than ever.
To better understand the value of a Busbar Storage Loading System, let’s dive into its key technical features and specifications. These features are designed to optimize workflow and safeguard material integrity during handling.
| Feature | Description |
|---|---|
| Storage Capacity | Up to 100 processed busbars (customizable) |
| Maximum Busbar Size | 6000mm length × 15mm thickness × 200mm width |
| Material Compatibility | Copper, Aluminum |
| Loading Method | Pneumatic clamping or manual |
| Integration | With CNC busbar punchers and benders |
| Safety Features | Soft clamping arms, emergency stop function |
| Movement Type | Sliding track or wheeled base |
The system is usually modular in design, making it flexible and scalable according to the customer’s needs. Some units come with adjustable rails to accommodate various busbar sizes, while others include a protective soft-surface contact mechanism to avoid scratches.
The built-in stop blocks and guided alignments ensure that every busbar is kept in a fixed position, allowing downstream robotic arms or operators to retrieve them efficiently. These features not only enhance productivity but also reduce the chance of rework due to material damage.
One of the main benefits of adopting a Busbar Storage Loading System is the massive improvement in manufacturing efficiency. In a production environment where every second counts, delays in material handling can create bottlenecks and reduce output. This system eliminates those inefficiencies by introducing order and automation into what would otherwise be a chaotic manual process.
The system acts as a buffer zone that holds processed busbars temporarily before they move to the next processing stage. This buffer ensures that machines upstream and downstream can operate independently without interrupting each other’s workflows. When integrated with sensors or robotic automation, the system can even feed busbars one by one as needed, further enhancing continuous production.
Manual handling of busbars not only requires more personnel but also poses a higher risk of errors and injuries. By mechanizing the storage and loading steps, companies can significantly reduce labor costs while maintaining high throughput.
Busbars are often made of highly conductive, corrosion-resistant materials like copper or aluminum, which are expensive and delicate. Improper handling can lead to costly scratches, dents, or deformations that impact conductivity or fit. The Busbar Storage Loading System solves these challenges with a combination of smart design and durable engineering.
Most systems include soft padding and rubberized contact points that ensure the surface of the busbar remains intact during loading and unloading. Some versions also feature anti-collision bumpers and slow-retract pneumatic arms to minimize impact force.
Depending on your facility's needs, the system can be upgraded with environmental control features like anti-dust covers or humidity control zones. These additions are especially useful in high-precision environments where material quality is paramount.
Every production facility is different. Whether you're dealing with compact urban plants or expansive manufacturing floors, the Busbar Storage Loading System offers multiple customization options to fit your space and workflow.
The system can be designed in U-shape, L-shape, or straight-line layouts depending on your production configuration. This makes it easier to integrate with existing punch-bend-assemble lines without major infrastructural changes.
Frames can be constructed from stainless steel, carbon steel, or aluminum alloy based on durability, cost, and application preferences. Wheel-lock options, rail-guided movement, or fixed-base models are also available to meet different stability and mobility needs.
Some systems are modular, allowing you to add or remove storage layers as your production capacity scales up or down. This forward-thinking design provides long-term operational flexibility.
Q1: Can the system handle different sizes of busbars?
A: Yes. Most modern systems include adjustable racks and clamps that can accommodate busbars of varying lengths, widths, and thicknesses.
Q2: Is integration with CNC equipment possible?
A: Absolutely. These systems are designed to work seamlessly with CNC punching and bending machines via automated or manual loading.
Q3: What is the average delivery time for a customized solution?
A: Depending on complexity, lead time ranges from 30 to 60 working days after order confirmation.
Q4: Can it be operated by a single person?
A: Yes. With automation and intuitive controls, one trained operator can manage the entire system.
Q5: How is the system maintained?
A: Routine maintenance includes cleaning of moving parts, tightening of screws, and periodic inspection of safety systems. Most suppliers provide a detailed maintenance manual and optional after-sales support.
The Busbar Storage Loading System is not just an optional accessory—it’s a game-changing investment for any busbar processing line. It offers unmatched efficiency, enhanced safety, and significant cost savings by automating a traditionally labor-intensive part of the production process. From large-scale electrical panel manufacturers to precision busbar shops, this system brings professionalism and reliability to every step of the workflow.
With customization options, compatibility with existing systems, and robust construction, the Busbar Storage Loading System future-proofs your operation while improving output quality. If you’re seeking to enhance your production line’s speed, accuracy, and overall efficiency, this is one piece of equipment you can’t afford to overlook.
