The Busbar Storage Loading System has become an essential asset in modern power equipment manufacturing. Designed to streamline the storage, protection, and transfer of busbars, these systems play a vital role in enhancing operational efficiency, safeguarding material quality, and ensuring safety. But one crucial question often asked by manufacturers and technical managers alike is this: Is the Busbar Storage Loading System suitable for both copper and aluminum busbars?
In this article, we’ll explore the technical compatibility, structural adaptability, and key features of the Busbar Storage Loading System, with a particular focus on its effectiveness with both copper and aluminum busbars. Drawing reference from trusted product specifications (without naming external brands), we’ll also discuss frequently asked questions, provide tabulated insights, and outline key operational considerations.

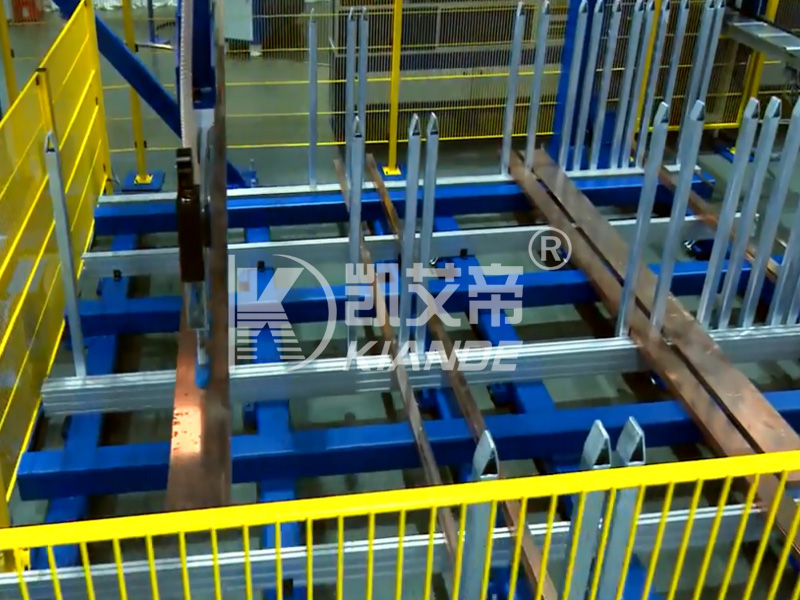

A Busbar Storage Loading System is a specialized piece of industrial equipment designed to manage the handling, loading, and temporary storage of busbars—elongated strips of conductive metal used in power distribution systems. These busbars are typically made from copper or aluminum, and are vital for transmitting high-current power between components within switchgear assemblies or busbar trunking systems.
The system is engineered to:
Organize busbars during manufacturing or pre-assembly stages.
Minimize manual handling.
Protect the surface finish of the busbar (important for conductivity and long-term performance).
Facilitate seamless loading into downstream equipment such as punching machines, bending machines, or assembly lines.
With the increasing demand for precision and efficiency in power equipment manufacturing, the need for a robust, adaptable, and material-compatible loading system has never been more critical.
Copper and aluminum are both used in busbar systems, but they differ significantly in density, hardness, and surface sensitivity.
| Material | Density (g/cm³) | Hardness | Surface Oxidation Risk | Conductivity |
|---|---|---|---|---|
| Copper | 8.96 | High | Low | Excellent |
| Aluminum | 2.70 | Medium | High | Moderate |
Given these differences, any storage and loading system must be carefully designed to accommodate both without compromising on safety or material quality. Fortunately, most modern Busbar Storage Loading Systems are constructed using adjustable support brackets, soft contact pads, and corrosion-resistant materials, which make them universally compatible.
Additionally, these systems include nylon rollers, adjustable slots, and cushioning components, all of which are non-reactive and gentle enough for aluminum’s softer surface while remaining robust enough for copper’s density and weight.
A well-designed Busbar Storage Loading System supports both high-density copper and lightweight aluminum busbars by incorporating modular frameworks and adjustable weight-bearing capacities. Key structural design features include:
Stainless steel frames to resist corrosion and provide structural integrity.
Multiple layer configurations (usually 4-6 tiers), allowing operators to sort busbars by material or size.
Hydraulic or pneumatic lifting arms to ensure safe vertical loading and unloading.
Load-bearing wheels or forklift-compatible bases for mobility.
One of the most important FAQs concerns the maximum load capacity. Typically, a standard Busbar Storage Loading System can support up to 1000–1500 kg per layer, depending on the model. This is sufficient for copper busbars, which are heavier and denser. For aluminum, which is significantly lighter, the same system can store more units per layer without reaching structural limits.
Furthermore, adjustable slots and dividers ensure that different lengths and thicknesses of busbars (common across aluminum and copper types) can be stored without risk of bending or surface damage.
Dual-material compatibility is particularly important in factories where both copper and aluminum busbars are used interchangeably. Such environments often include:
High-voltage switchgear manufacturers.
Renewable energy equipment factories.
Electric vehicle battery system suppliers.
Power distribution and transformer panel assemblers.
These production lines demand flexibility. For example, copper might be used for high-conductivity requirements, while aluminum is preferred in applications where weight savings or cost reduction are key. A single Busbar Storage Loading System that handles both eliminates the need for separate storage infrastructures, thus reducing footprint and investment costs.
Aluminum busbars are prone to oxidation, which can degrade conductivity. Copper, while more resistant, still requires surface protection, especially in humid environments. The Busbar Storage Loading System is built to accommodate this need by offering:
Enclosed storage options with protective covers.
Ventilated shelves that reduce moisture buildup.
Optional anti-static or dustproof coatings for internal contact points.
Routine cleaning and inspection are also easier with open-frame modular designs. Components like rollers and pads can be removed and washed separately, preventing material cross-contamination.
| Question | Answer |
|---|---|
| Can I store copper and aluminum busbars in the same rack? | Yes, provided there’s a separator or dedicated layer for each to avoid galvanic corrosion. |
| Does the system scratch soft aluminum surfaces? | No. Nylon pads and rubber cushions ensure gentle contact and protection. |
| What’s the average size range supported? | Lengths from 1m to 6m; widths up to 200mm; thickness from 3mm to 15mm. |
| How is busbar loading done—manual or automatic? | Systems are typically semi-automatic, but automation upgrades are available. |
| What are the power supply needs for the system? | Standard 220V or 380V depending on lift motor configuration. |
| Is it forklift accessible? | Yes. Most frames are designed with integrated forklift slots. |
The short answer is yes. The Busbar Storage Loading System is purpose-built to handle the structural and surface characteristics of both copper and aluminum busbars. Its mechanical robustness, flexible configuration, and protective design make it a versatile and cost-effective solution for diverse electrical manufacturing environments.
Whether you’re running a high-throughput copper busbar assembly line or integrating lighter aluminum conductors into your products, a modern Busbar Storage Loading System ensures streamlined operations, maximum safety, and long-term material preservation.
