In the fast-paced world of electrical busbar manufacturing, efficiency and automation are not just goals — they are necessities. As factories strive to streamline operations, one crucial question often arises: Is the Busbar Storage Loading System easy to integrate with existing production lines? The short answer is yes — but the long answer is far more enlightening and essential for decision-makers.
This article takes a deep dive into the seamless integration potential of the Busbar Storage Loading System, exploring everything from compatibility features and software flexibility to real-time process management. Whether you're a factory manager, automation engineer, or procurement officer, this guide will provide insights that matter.

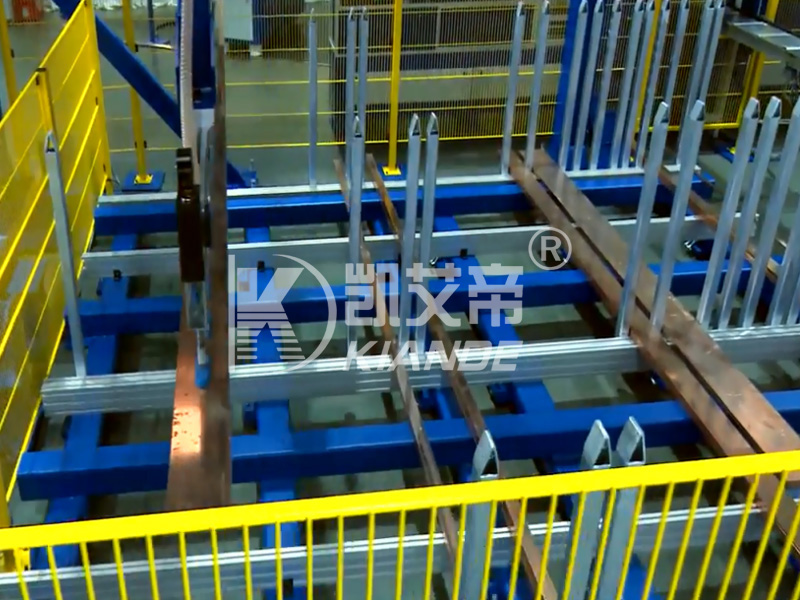

A Busbar Storage Loading System is a specialized automated solution designed to store, protect, and precisely feed busbar components into the next phase of production. These systems are typically deployed between bending, punching, or cutting units to manage work-in-progress materials efficiently.
The system features modular frames, robotic loading/unloading arms, and intelligent conveyor networks that automatically queue busbars in a designated order. These stored units are then delivered precisely to the next workstation, minimizing human intervention and improving operational continuity.
Key Components Include:
| Component | Description |
|---|---|
| Loading Mechanism | Automated lift arms or robotic arms to pick and place busbars. |
| Storage Rack | Multi-level racking system designed for various busbar sizes. |
| Control Interface | Touchscreen HMI for operation control and diagnostics. |
| Sensor Network | For busbar position, size detection, and error alerts. |
| PLC Integration | Synchronizes with upstream and downstream machinery. |
One of the standout features of the Busbar Storage Loading System is its modular design, which allows for plug-and-play installation into almost any existing layout. These systems are built with standardized dimensions and adjustable support brackets, enabling them to fit into the current physical workflow without requiring complete reengineering.
Manufacturers can customize vertical height, entry and exit points, and even robot arm positioning to align with existing equipment like punching machines, shearing units, or CNC processing lines. This eliminates the need for costly layout changes or additional foundation work.
Modern Busbar Storage Loading Systems support industry-standard communication protocols like Profinet, Modbus TCP/IP, and EtherCAT. This ensures easy integration with existing PLC systems from brands like Siemens, Allen-Bradley, or Mitsubishi (without promoting these brands).
The control interface is often equipped with customizable APIs, allowing the system to interact with MES (Manufacturing Execution Systems) or SCADA software. Real-time data exchange enables smooth job tracking, automatic queuing, and status reporting. This level of compatibility removes the bottleneck in production automation and supports future scalability.
Not all busbars are created equal. Fortunately, the Busbar Storage Loading System supports a wide range of dimensions, including varying lengths, widths, and thicknesses. Whether your production line handles copper, aluminum, or coated busbars, this system is engineered to detect, adjust, and respond accordingly.
With built-in automatic clamping and guiding mechanisms, the system aligns each busbar precisely. This ensures consistent storage orientation, which is critical for downstream robotic or CNC processing.
Technical Versatility Table:
| Feature | Specification |
|---|---|
| Busbar Length Range | 200mm – 6000mm |
| Busbar Width Range | 10mm – 200mm |
| Material Types | Copper, Aluminum, Laminated |
| Max Weight Capacity | Up to 100kg per unit |
| Orientation Flexibility | Horizontal and Vertical loading |
This adaptability makes integration possible even for factories handling multi-product lines or diverse project specifications.
Time is money — especially in industrial manufacturing. The Busbar Storage Loading System is designed for rapid deployment and minimal disruption. On average, installation and commissioning take 3–7 working days, depending on plant conditions and the number of machines being integrated.
Pre-shipment FAT (Factory Acceptance Tests) are performed to ensure hardware and software readiness. Once onsite, engineers calibrate the system, conduct SAT (Site Acceptance Tests), and offer staff training. Remote assistance and documentation ensure that users can operate and troubleshoot the system independently.
This well-structured process drastically reduces integration time, making it one of the fastest automation modules to bring online.
No. The system’s modular framework and adjustable arms are designed to work with existing infrastructure. Most users find they only need to make minor changes or none at all.
Yes. The Busbar Storage Loading System is compatible with both manual and automated workflows. You can install it as a standalone solution or integrate it into a fully automated line.
The system includes light curtains, emergency stop buttons, overload protection, and sensor-based alarms. It fully complies with international machine safety standards.
Absolutely. The modular structure allows you to add more racks, robot arms, or software upgrades as production needs evolve.
Beyond integration, what truly sets the Busbar Storage Loading System apart is its long-term value proposition. With reduced manual labor, faster processing times, and fewer errors, the system enables:
Higher throughput without expanding manpower.
Improved consistency and quality of busbar handling.
Real-time monitoring and traceability.
Reduced material damage and rework costs.
In an era where automation is rapidly transforming the electrical component manufacturing industry, investing in a Busbar Storage Loading System means future-proofing your operations.
So, is the Busbar Storage Loading System easy to integrate with existing production lines? Yes — and it goes far beyond "easy." With its modular design, advanced software compatibility, adaptability to various busbar sizes, and minimal installation time, it offers a powerful automation upgrade without the headaches.
For any forward-thinking factory looking to improve efficiency, reduce costs, and boost scalability, this system is not just easy to integrate — it’s essential.
